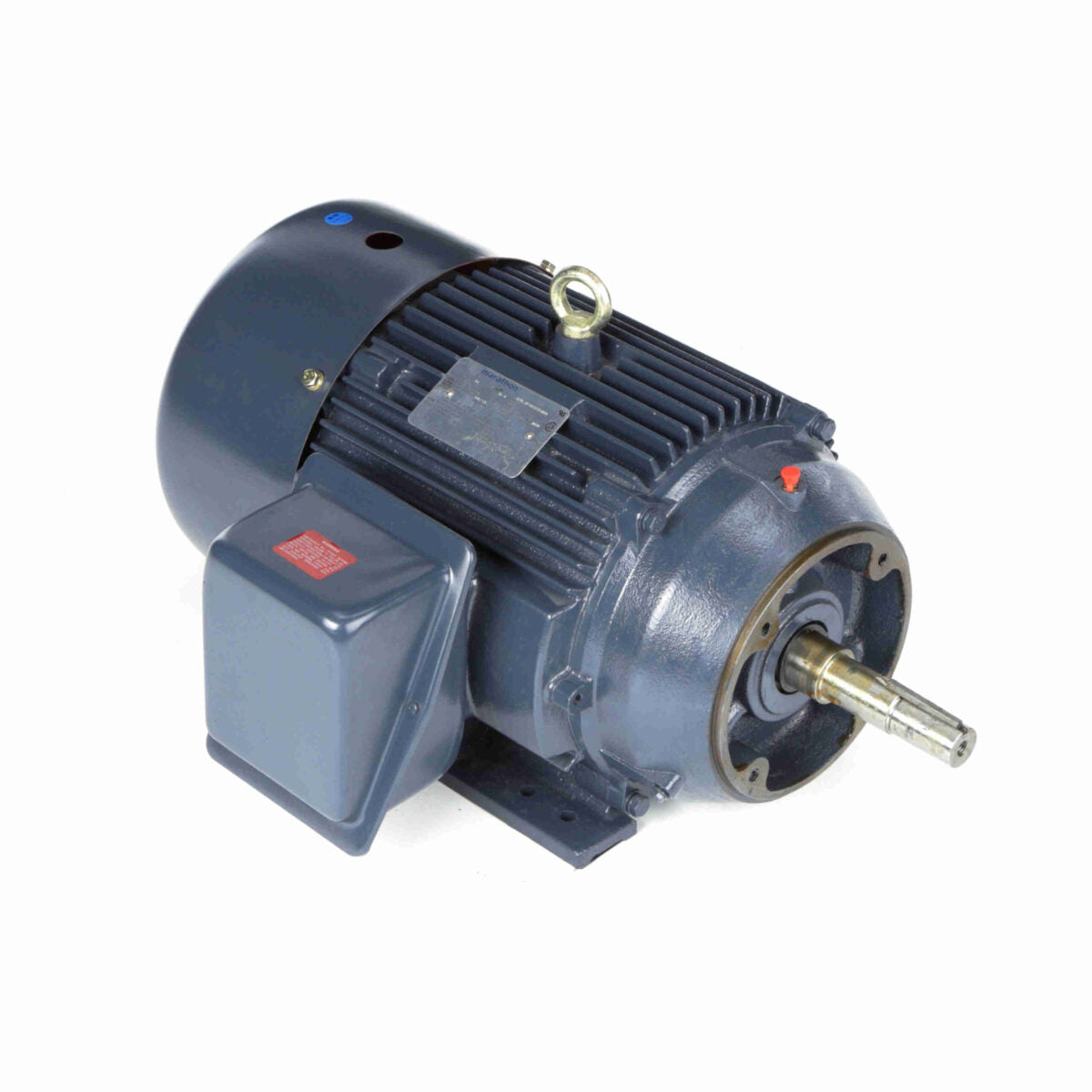

MARATHON MOTORS MGT3121 Close Coupled Pump Motor 15 HP 230/460V TEFC

Product Description

The MARATHON MOTORS MGT3121 is a close coupled pump motor made for continuous duty applications. This motor is engineered with a rigid base that ensures stability during operation. It is totally enclosed and fan cooled, which helps maintain optimal performance in various conditions.

• Three-phase electrical type.
• Features Class F insulation and durable ball bearings.
• Designed for long-term, continuous operation.

Product Highlights

This motor is suitable for different applications, including pumping systems and industrial machinery.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT3121

Technical Specifications

• Electrical Type: Three Phase
• Voltage: 230/460V
• Frame: 254JM
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Material: Cast Iron
• Horsepower: 15 HP
• Rotation: Reversible
• RPM: 3545
• Number of Speeds: 1
• Amperage: 35.5/17.8 Amps
• Frequency: 60Hz
• Service Factor: 1.15
• Insulation Class: Class F
• Bearings: Ball Bearings
• Duty Type: Continuous Duty
• Weight: 359 lbs
