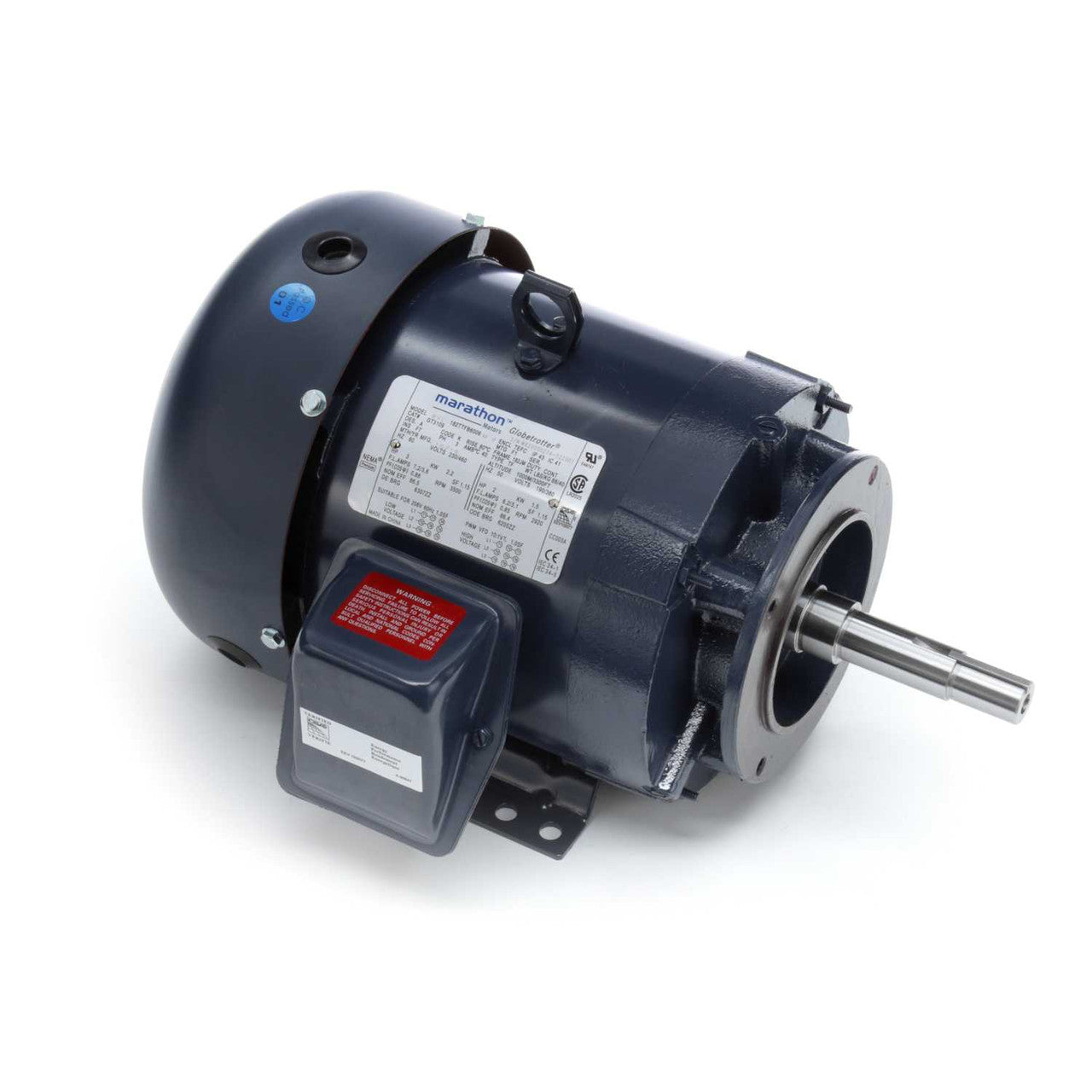

MARATHON MOTORS MGT3105 JM Close-Coupled Pump Motor 1 1/2 HP

Product Description

The MARATHON MOTORS MGT3105 is a three-phase, totally enclosed fan cooled electric motor. It is designed for close-coupled pump applications. This motor is rated at 1 1/2 HP and operates at 1200 RPM. It is compatible with Variable Frequency Drives for variable torque applications. This unit features a NEMA 182JM frame and Class F insulation, which meets USA efficiency standards. It is UL recognized and CSA certified.

• Rated for 1 1/2 HP at 1200 RPM.
• Features a NEMA 182JM frame.
• Totally enclosed fan cooled (TEFC) design.

Product Highlights

Ideal for pump applications needing reliability and efficient performance.

Product Information

Standard Information

• Horsepower: 1 1/2
• RPM: 1200

Technical Specifications

• Voltage: 230/460
• Frame Size: 182JM
• Full Load Amps: 4.6/2.3
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 degrees Celsius
