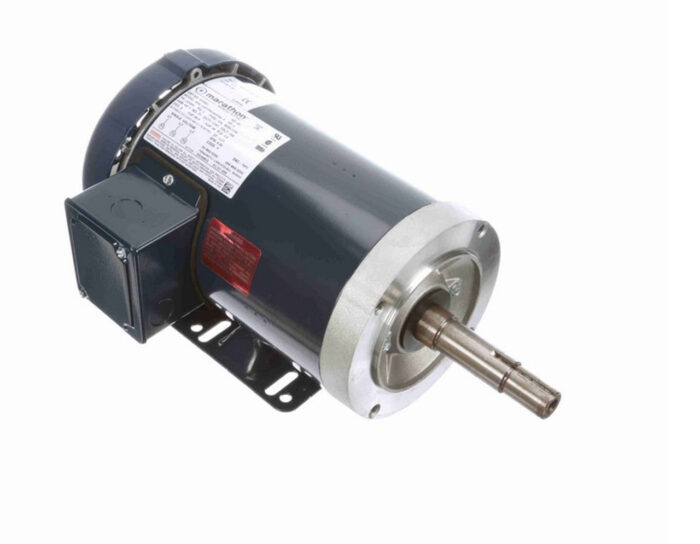

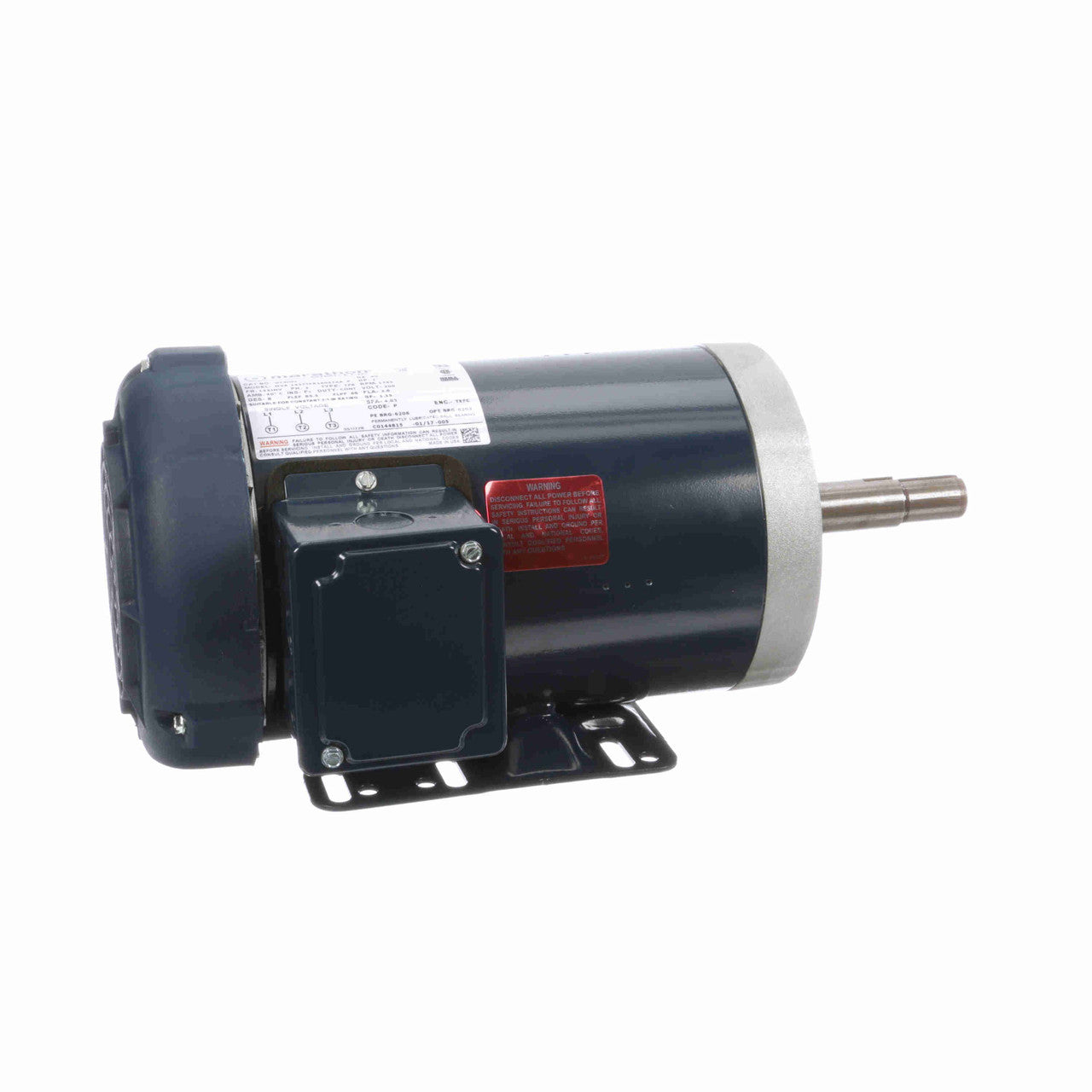

Marathon Motors MGT3001 Close Coupled Pump Motor

Product Description

The Marathon Motors MGT3001 is a close coupled pump motor suitable for continuous operation in various pump applications. This three-phase electric motor features a robust rolled steel construction and is designed with a totally enclosed, fan cooled (TEFC) enclosure for durability and efficiency. It is designed for rigid base mounting, ensuring stability during operation.

• Electrical Type: Three Phase
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Overload Protection: None

Product Highlights

This motor is ideal for applications requiring reliable performance and efficiency. The TEFC design protects against dust and moisture, making it suitable for indoor and outdoor settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT3001

Technical Specifications

• Electrical Type: Three Phase
• HP: 1
• Frame: 143JM
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Phase: 3
• Voltage: 200V
• Rotation: Reversible
• Overload Protection: None
• Material: Rolled Steel
• Mounting: Rigid Base Mount
• Amperage: 3.8
• Shaft Type: Single
• RPM: 1765
• Number of Speeds: 1
• Service Factor: 1.15
• Bearing Type: Ball Bearings
• Insulation Class: Class F
• Shaft Dimensions: Internal Threaded, 7/8 inch Diameter x 2 1/4 inch Length
