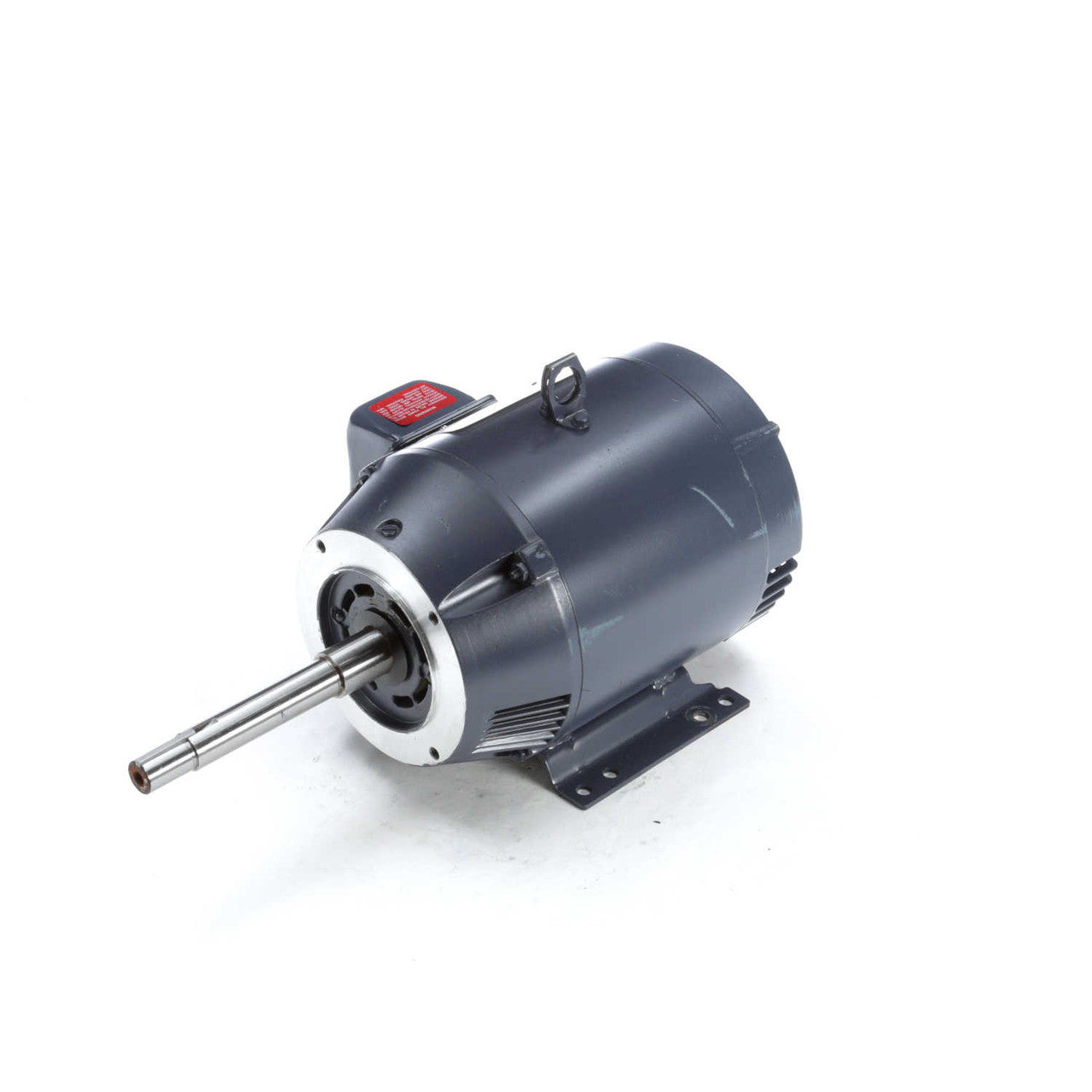

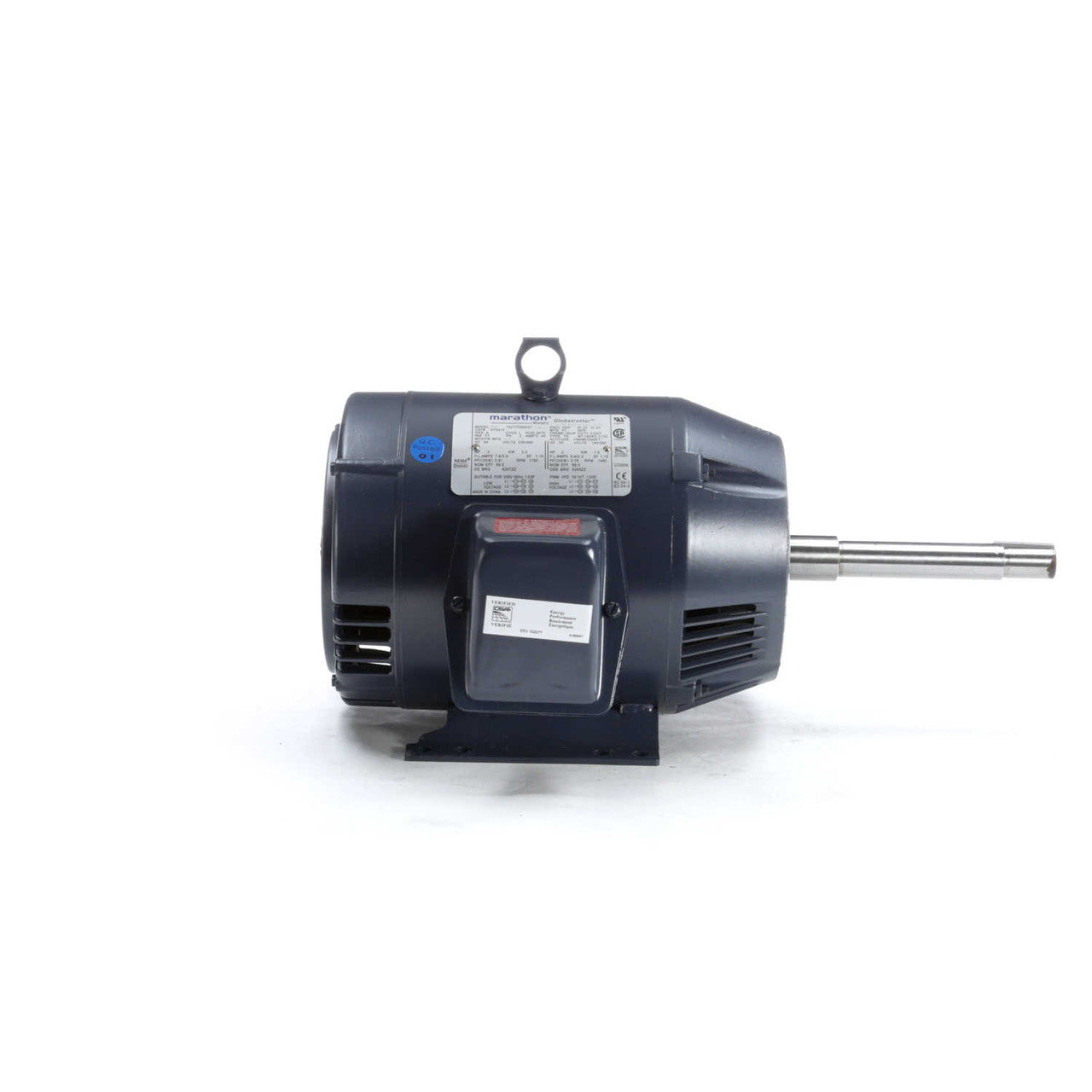

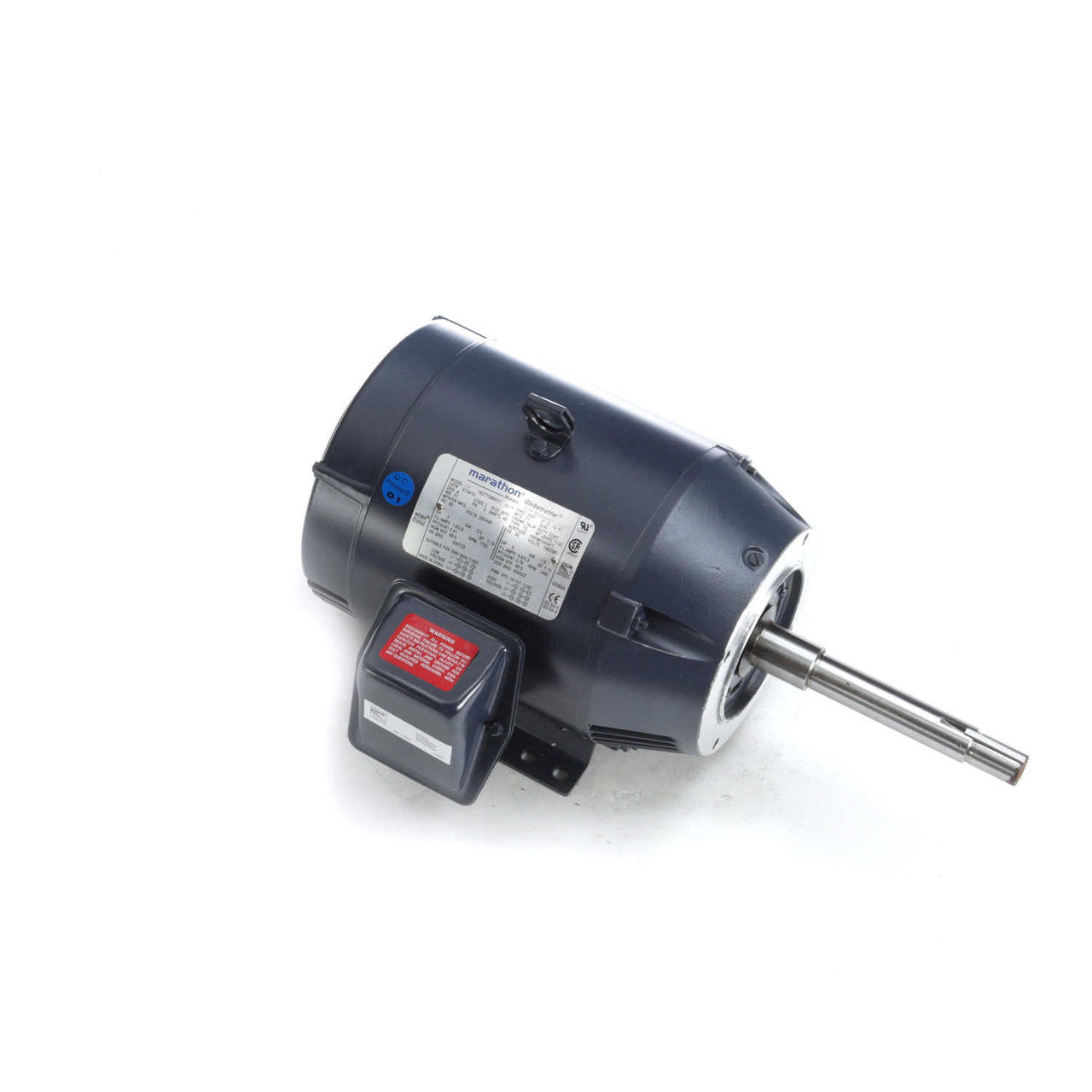

MARATHON MOTORS MGT2410 Close-Coupled Pump Motor 3 HP

Product Description

The MARATHON MOTORS MGT2410 is an efficient three-phase electric motor for close-coupled pump applications. It has a power rating of 3 HP and works at a speed of one thousand eight hundred RPM. This motor supports dual-voltage operation at two hundred thirty and four hundred sixty Volts, with a frame size of 182JP. It includes a drip-proof enclosure and a rigid mounting base, making it suitable for variable frequency drive (VFD) use.

• Dual-voltage support for versatile installations
• Robust construction with a rigid base for secure mounting
• Suitable for multiple applications in pumping systems

Product Highlights

This motor is designed to meet NEMA JP pump shaft dimensions and features ball bearings that are mechanically locked on the shaft end. It is recognized by UL, certified by CSA, and marked by CE.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT2410

Technical Specifications

• Horsepower: 3 HP
• Speed: 1800 RPM
• Input Voltage: 230/460 Volts
• Frame Size: 182JP
• Full Load Amps: 7.6/3.8
• Enclosure Type: Drip Proof
• Mounting Type: Rigid Base
• Ambient Temperature: 40 °C
• Phase: 3
• Motor Type: Open Dripproof
• Rotation: Reversible
• Service Factor: 1.15 (sinewave), 1.0 (IGBT power)
• Insulation Class: Class F
