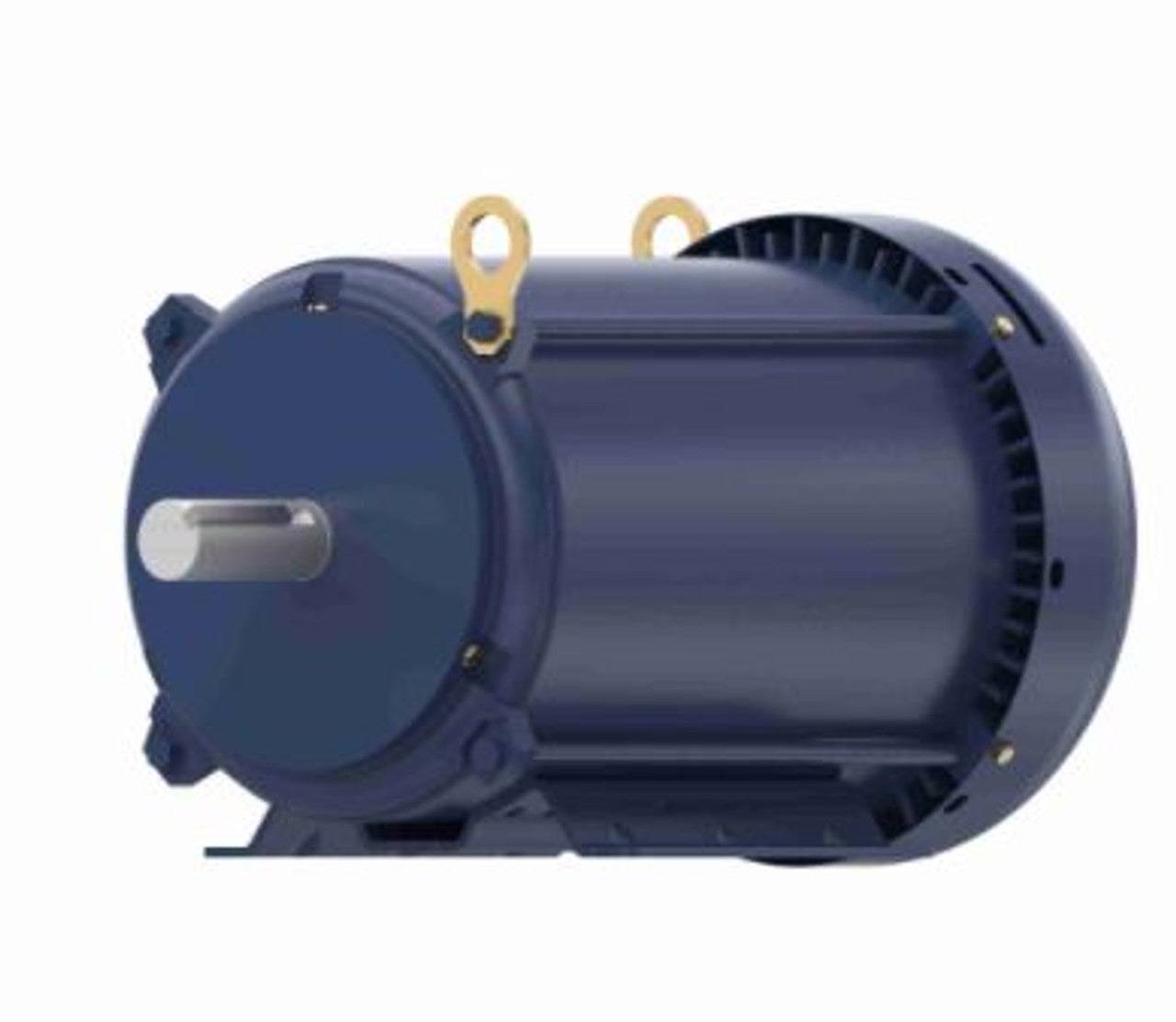

MARATHON MOTORS MGT1516 General Purpose Electric Motor

Product Description

The Marathon Motors MGT1516 is a three-phase, TEFC (Totally Enclosed Fan Cooled) electric motor ideal for various industrial applications. It has a rolled steel frame and a keyed shaft suitable for continuous duty with reversible capabilities. This motor adheres to NEMA Premium efficiencies and complies with EISA2007 standards.

• Three-phase motor for high performance.
• TEFC design provides environmental protection.
• Use in a variety of general-purpose industrial settings.

Product Highlights

This electric motor is crafted for durability and efficiency, making it a solid choice for industrial environments.

Product Information

Standard Information

• Brand: Marathon
• Horsepower: 7.5 & 5

Technical Specifications

• RPM: 1768 & 1475
• Frame Size: 213T
• Phase: 3
• Voltage: 230/460 & 190/380
• Current: 19/9.5 & 16.2/8.1 AMP
• Service Factor: 1.15
• Speed: Single Speed
• Enclosure Type: TEFC
• Rotation: Reversible
• Mounting Type: Rigid
• Shaft Type: 1.375 X 3.38 Keyed Shaft
• Overall Length: 18.34 inches
