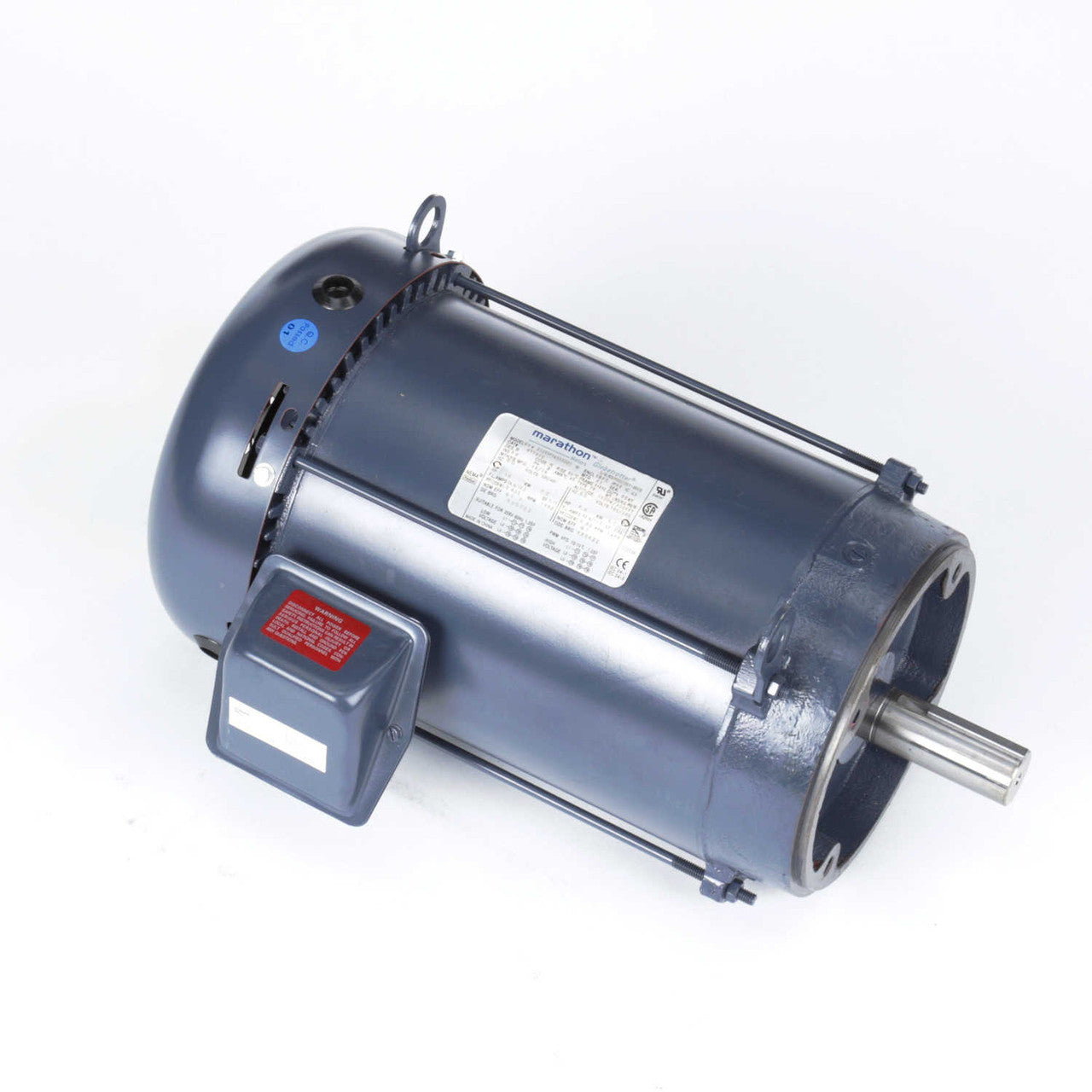

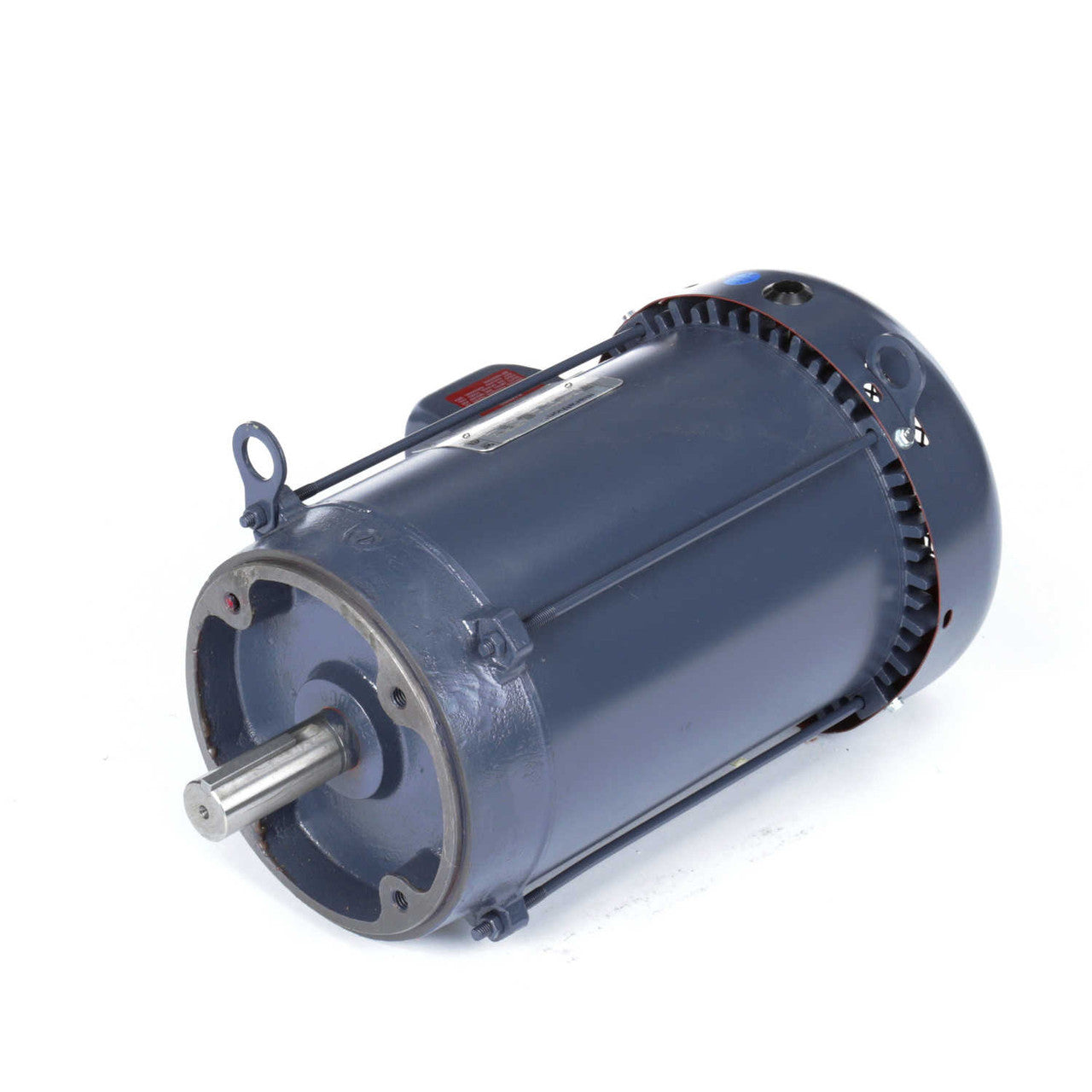

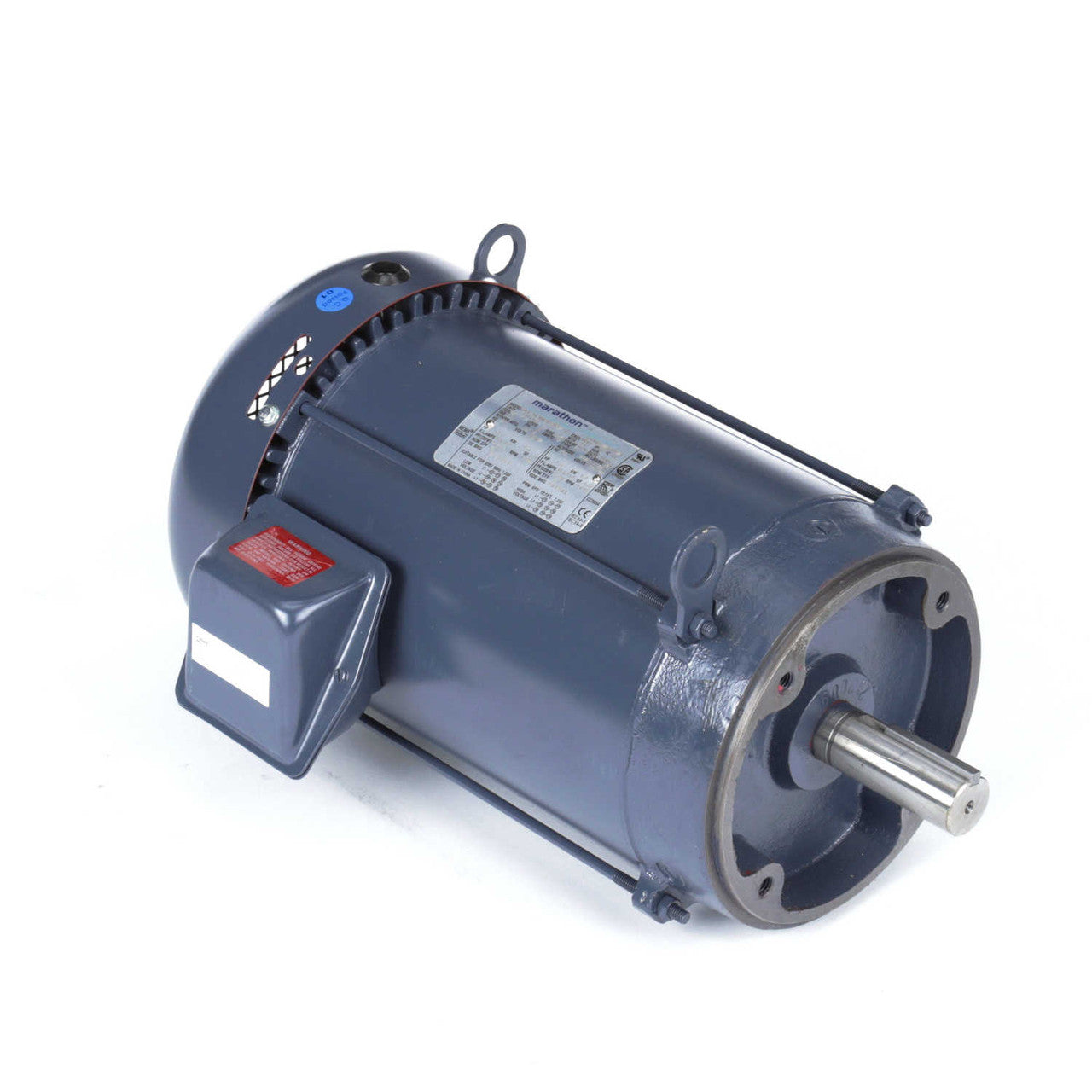

MARATHON MOTORS MGT1319 General Purpose Motor 10 HP

Product Description

The MARATHON MOTORS MGT1319 is a general-purpose electric motor. This motor is designed to meet NEMA Premium efficiency standards and complies with EISA 2007. It features a squirrel cage inverter for continuous duty operation and uses ball bearings for reliable performance. Made with rolled steel, it is suitable for hazardous duty Division 2, Zone 2, Class I, Groups A, B, C, and D applications with a temperature code of T2B. It supports variable and constant torque capabilities, making it versatile for various industrial needs.

• Squirrel cage inverter rated for continuous duty.
• Suitable for hazardous duty Division 2 applications.
• Compliant with NEMA Premium efficiency standards and EISA 2007.

Product Highlights

This motor provides excellent efficiency and safety for demanding situations.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1319

Technical Specifications

• Horsepower: 10 HP
• RPM: 1762
• Frame Size: 215TC
• Phase: 3
• Input Voltage: 230/460 V
• Output Current: 25/12.5 A
• Service Factor: 1.15
• Speed: SINGLE
• Enclosure: TEFC
• Reversible Rotation: Yes
• Mounting Type: C-face mount
• Shaft Dimensions: 1.375 X 3.38 KEYED SHAFT
• Keyed Shaft Dimensions: 1 3/8 inches diameter x 3 3/8 inches
• Dimension: 20.70
• Material: Rolled steel
• Efficiency: NEMA premium
• Compliance: EISA 2007
• Inverter Duty: Yes
• Temperature Code: T2B
• Insulation Class: F
• Service Factor (IGBT power): 1.0
• Certifications: UL recognized, CSA certified, CE mark
• Bearings: Ball bearings
• Weight: 164 lbs
