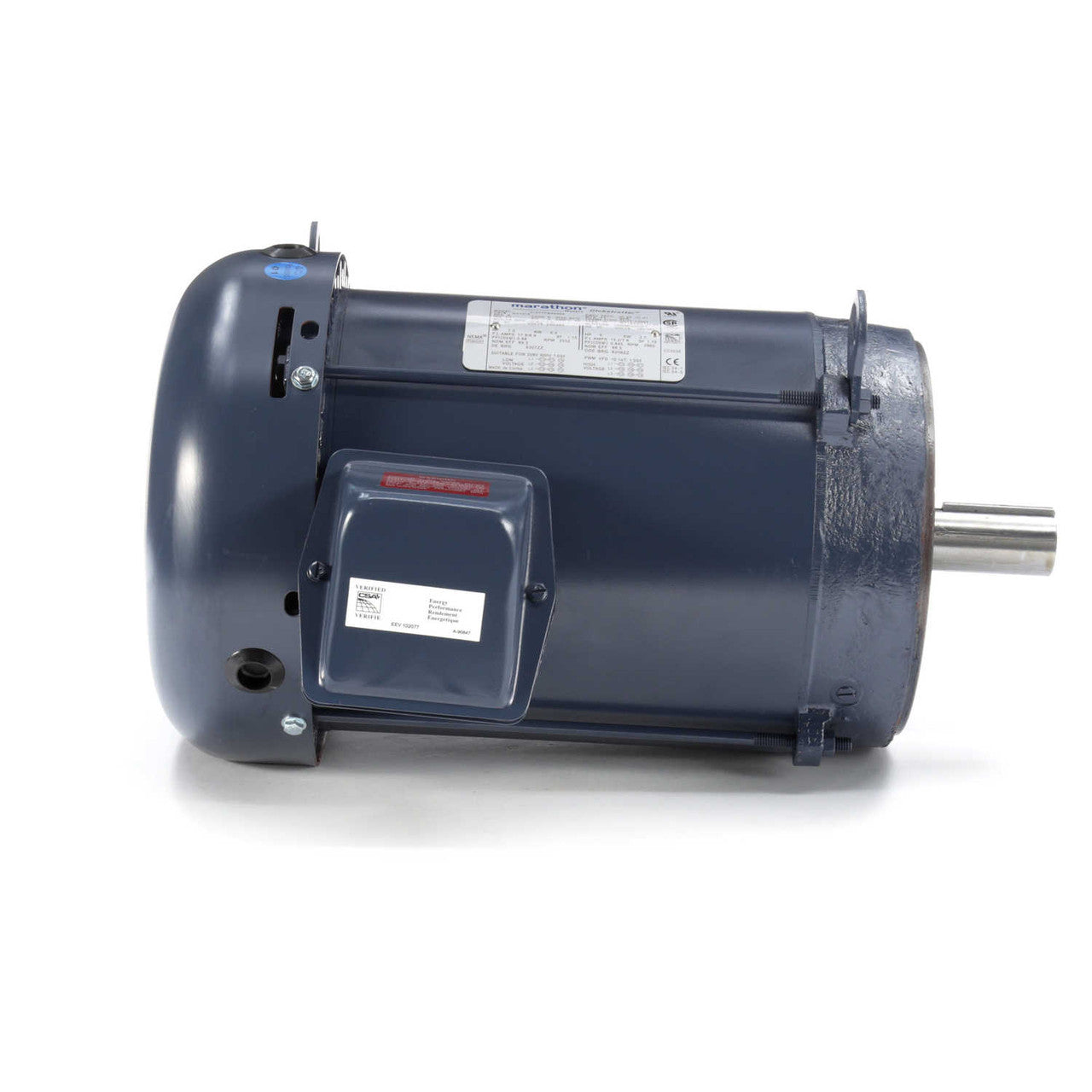

Marathon Motors MGT1315 Motors General Purpose Motor, 7 1/2 HP, 3600 RPM, 208-230/460 Volts

Features:

Meets or exceeds NEMA Premium efficiencies
NEMA Premium models are in compliance with EISA 2007
Rolled Steel C-Face models are Hazardous Duty Division 2 motors
Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
1.15 Service factor on sinewave, 1.0 service factor on IGBT power
Meets temperature code T2B
Class F Insulation
Standard assembly F1, reversible to F2 assembly
UL recognized, CSA certified, CE mark
Three Year Warranty

Specifications:

7 1/2 HP
3600 RPM
208-230/460 Volts
213TC Frame
17.8/8.9 Full Load Amps
Totally Enclosed Fan Cooled
Ball Bearings
40 C Ambient Temperature
Cross Reference: 213TTFBA6004, GT1315A, 213TTFBD6004
