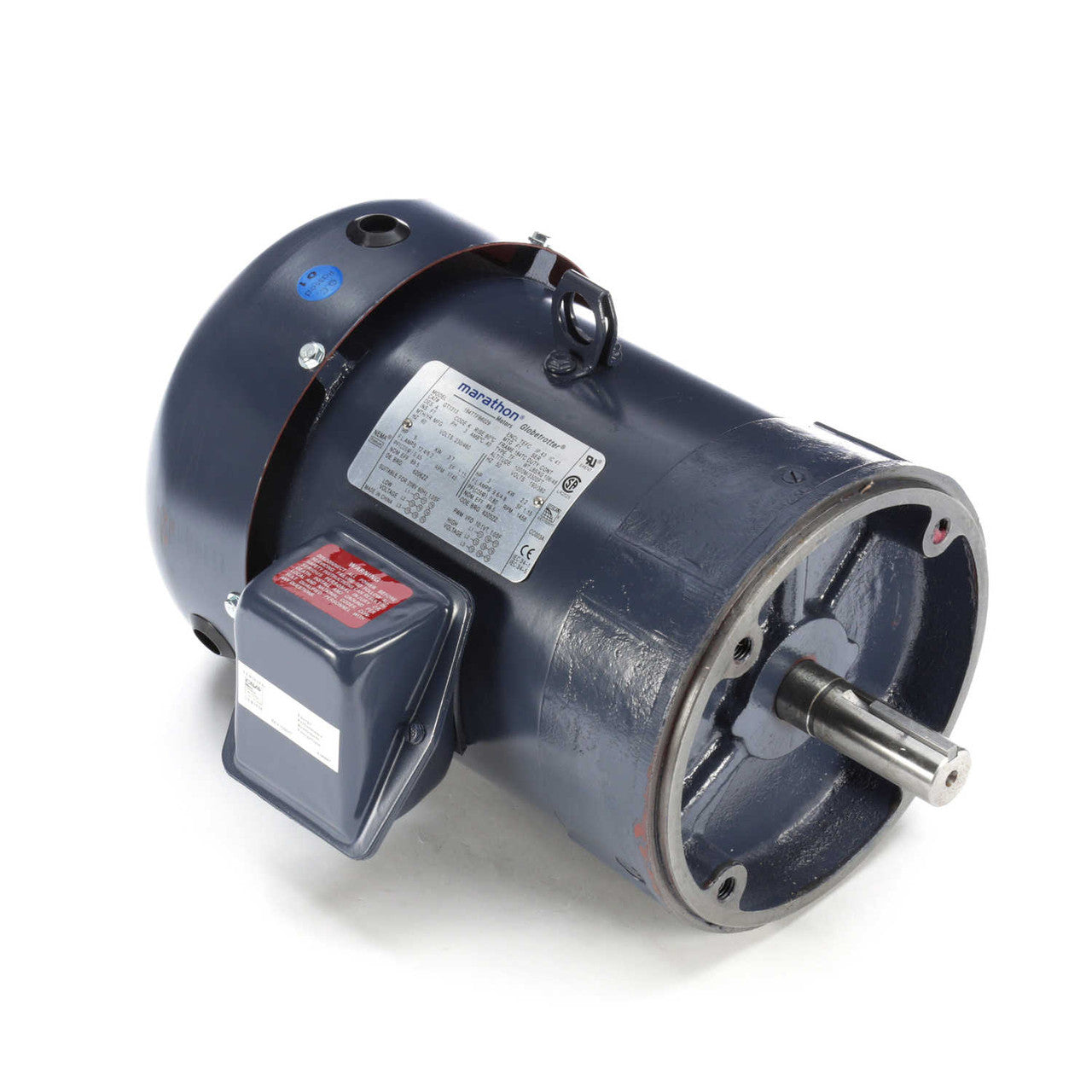

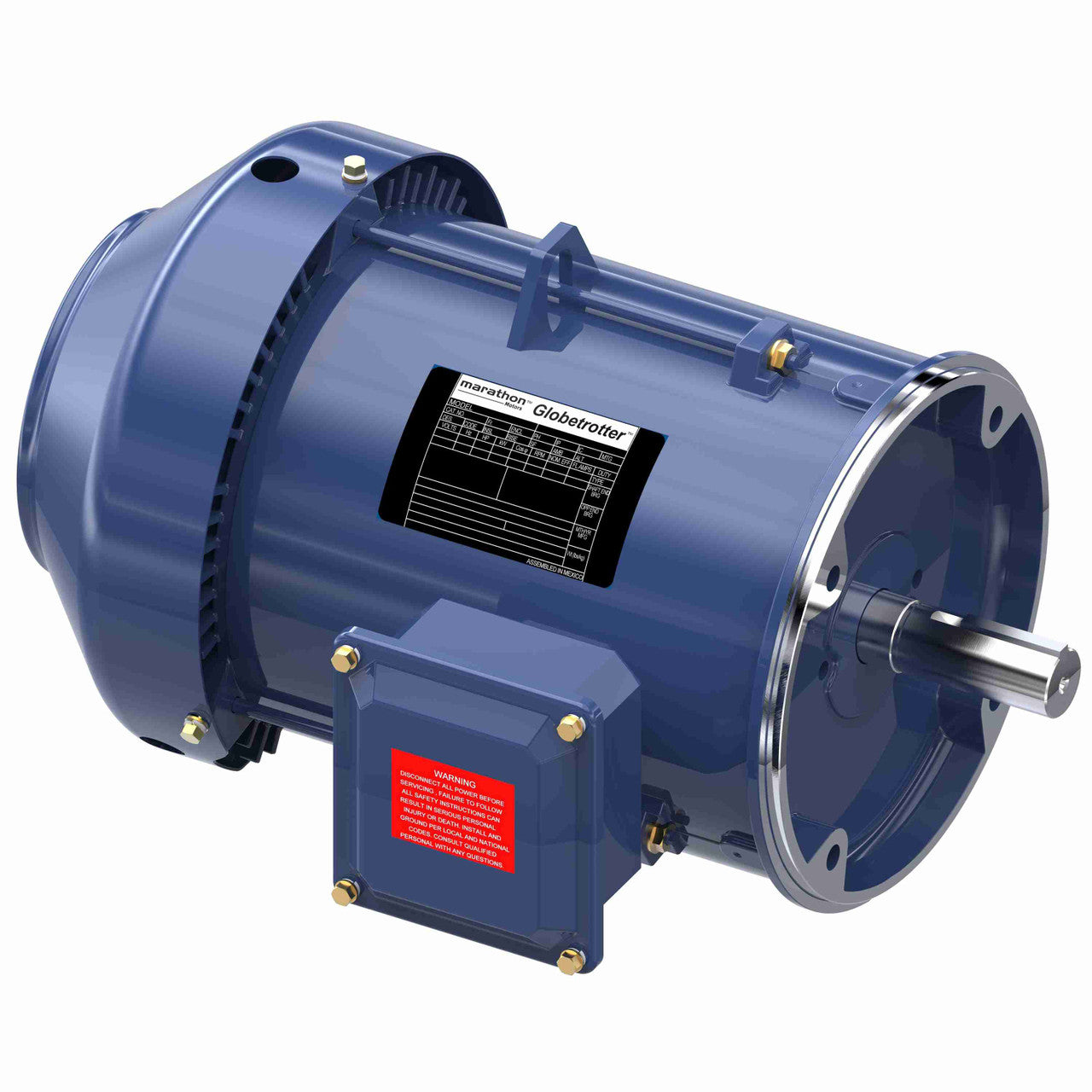

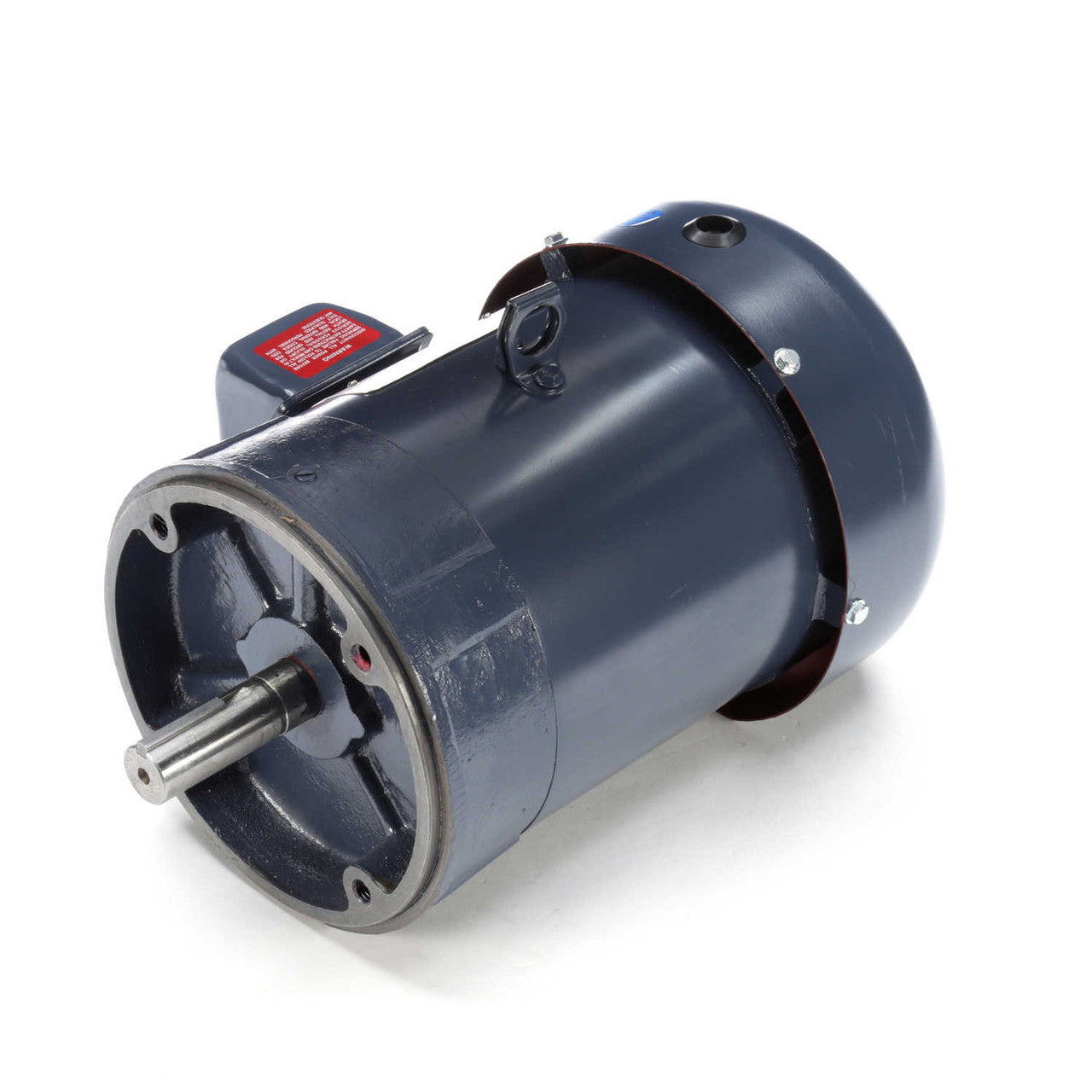

MARATHON MOTORS MGT1313 General Purpose Motor 5 HP 184TC TEFC

Product Description

The Marathon Motors MGT1313 is a general-purpose, three-phase motor with a power rating of five horsepower. It operates at a speed range of approximately one thousand seven hundred sixty-five to one thousand eight hundred RPM. This motor features a 184TC frame and a totally enclosed fan-cooled (TEFC) enclosure, making it suitable for a variety of industrial settings where reliability is essential.

• Horsepower: 5 HP
• Speed: 1765-1800 RPM
• Enclosure: TEFC

Product Highlights

The MGT1313 motor supports reversible operation and has a keyed shaft for enhanced functionality. It is an excellent choice for various applications that require a dependable power source.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1313

Technical Specifications

• Horsepower: 5 HP
• Speed: 1765 RPM
• Frame Size: 184TC
• Phase: 3
• Input Voltage: 230/460 volts
• Load Amps: 13.2/6.6
• Service Factor: 1.15
• Enclosure Type: TEFC
• Reversible: Yes
• Mounting Base: No
• Face: C-FACE
• Shaft Diameter: 1.25 X 2.75 KEYED
• C-Dimension: 16.85
• Weight: 110 lbs
• Ambient Temperature: 40°C
• Insulation Class: Class F
