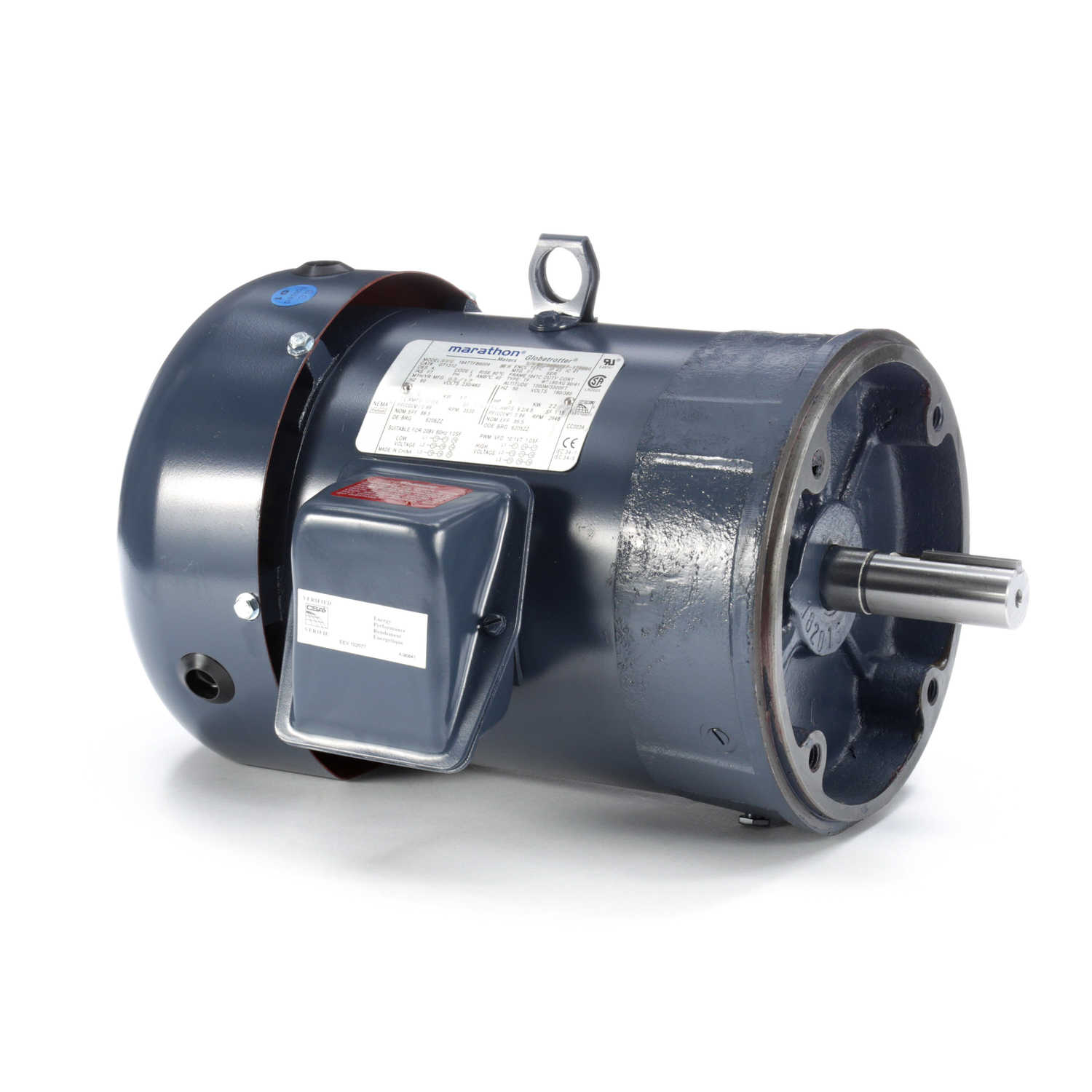

Marathon Motors MGT1312 Globetrotter GT1312 General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 184TC Frame, TEFC

Features:
Meets or exceeds NEMA Premium efficiency. Model is in compliance with EISA2007
Cast iron frame and brackets
Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
Class F Insulation
Standard assembly F1, reversible to F2 assembly
NEMA design A
Will become build-up item when current stock is gone

Specifications:
Output HP:5 Hp
Output KW:3.7 k
W
Frequency:60 Hz
Voltage:230/460 V
Current:12.0/6.0 A
Speed:3535 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:88
Duty:Continuous
Insulation Class:F
Design Code:A
KVA Code:L
Frame:184T
C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No Protection
Ambient Temperature:40 C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Number of Speeds:1
Electrical Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:1.98 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft T
Overall Length:16.73 in
Shaft Diameter:1.125 in
Shaft Extension:2.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
