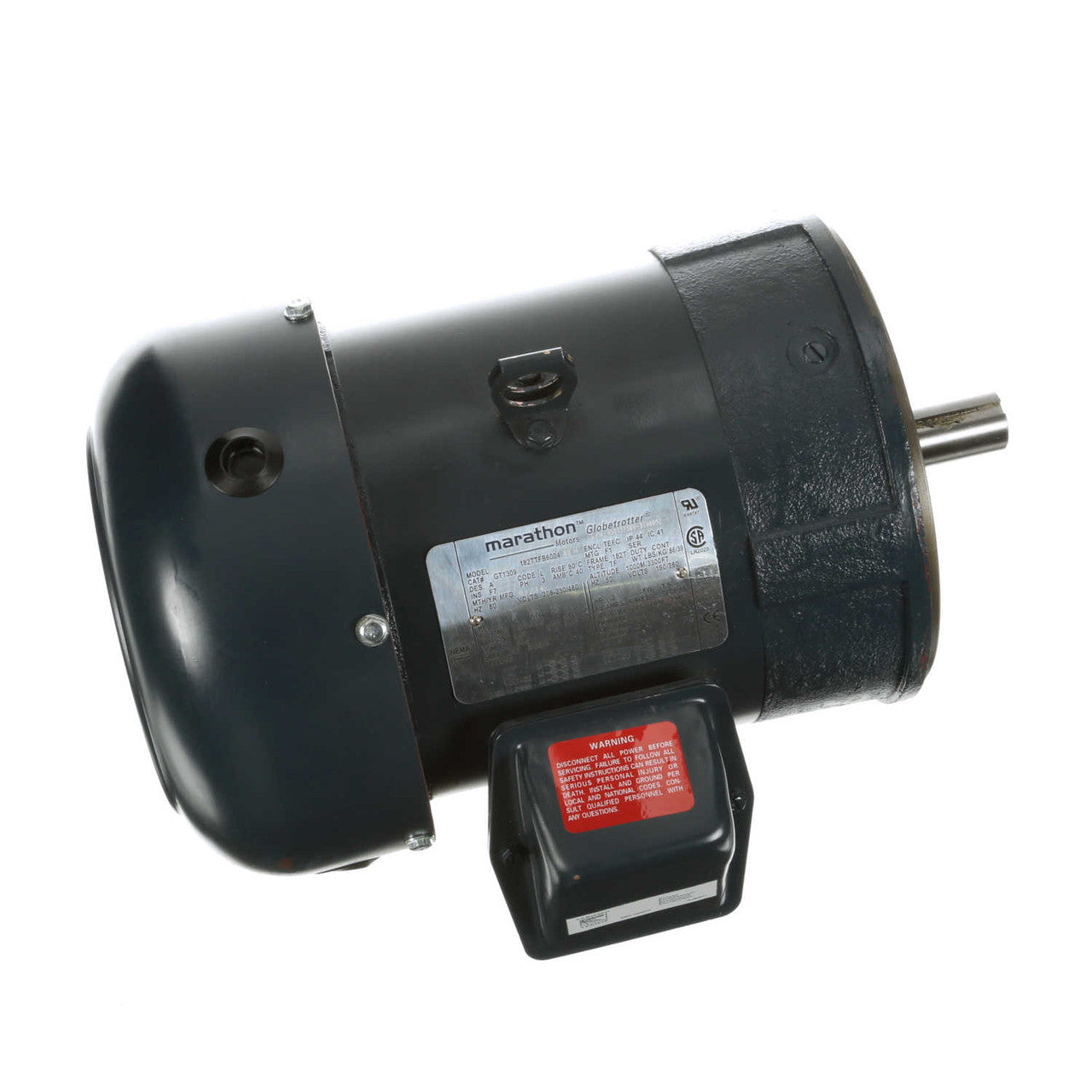

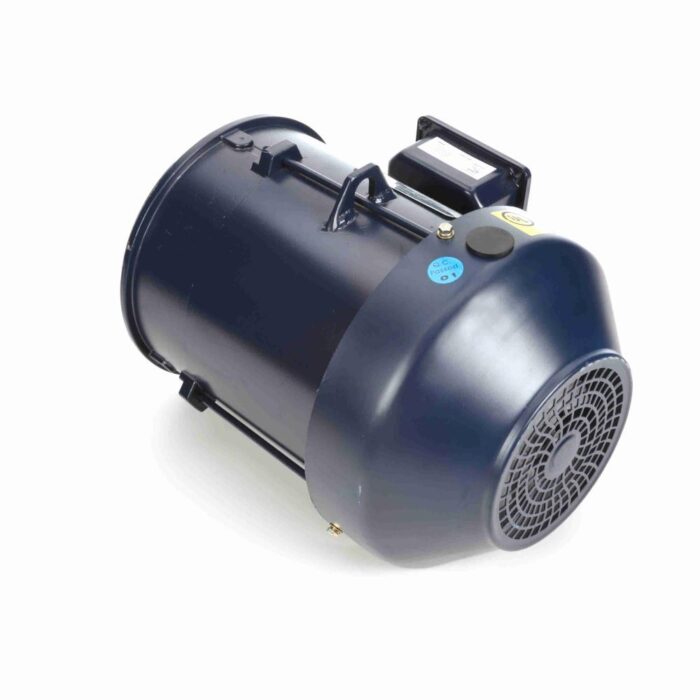

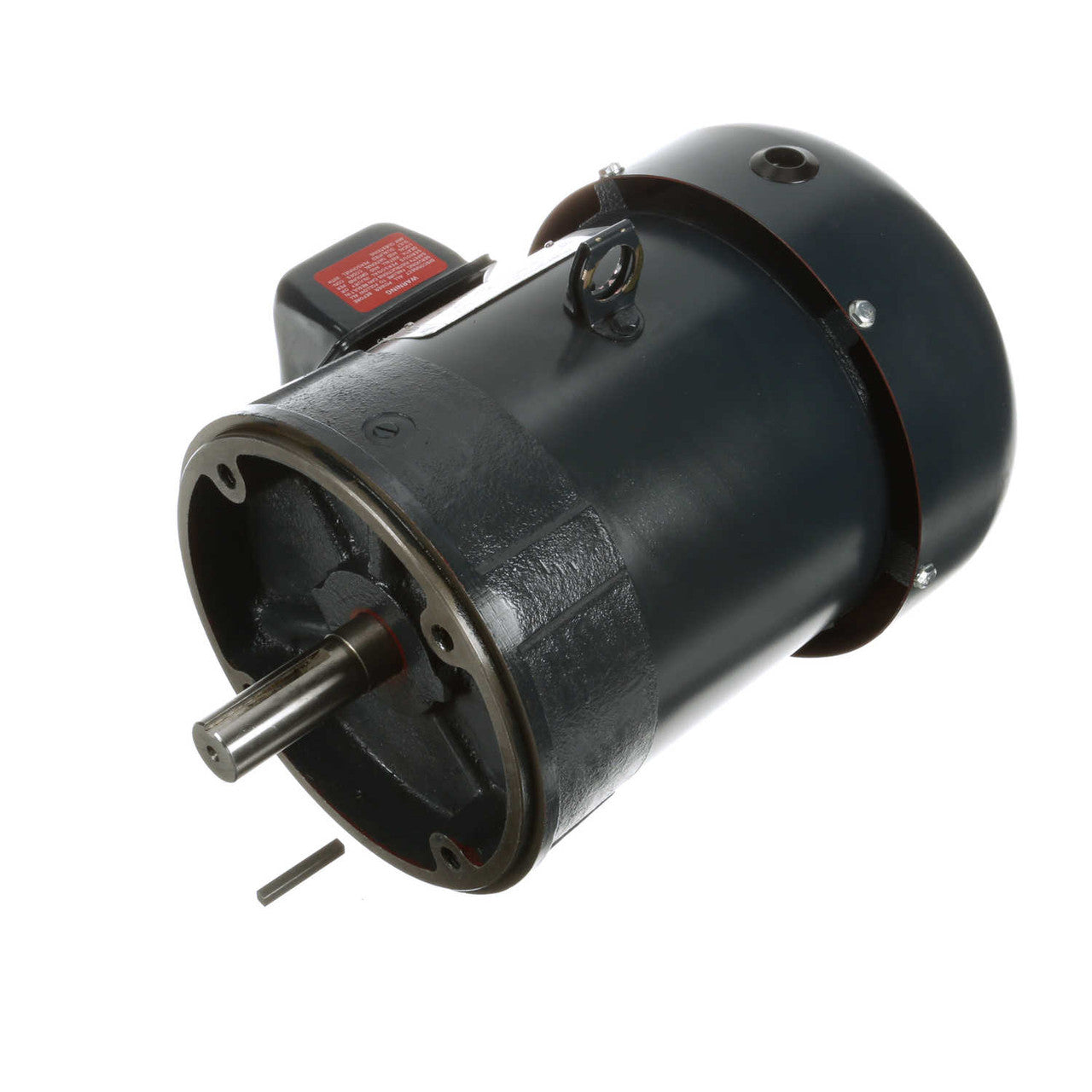

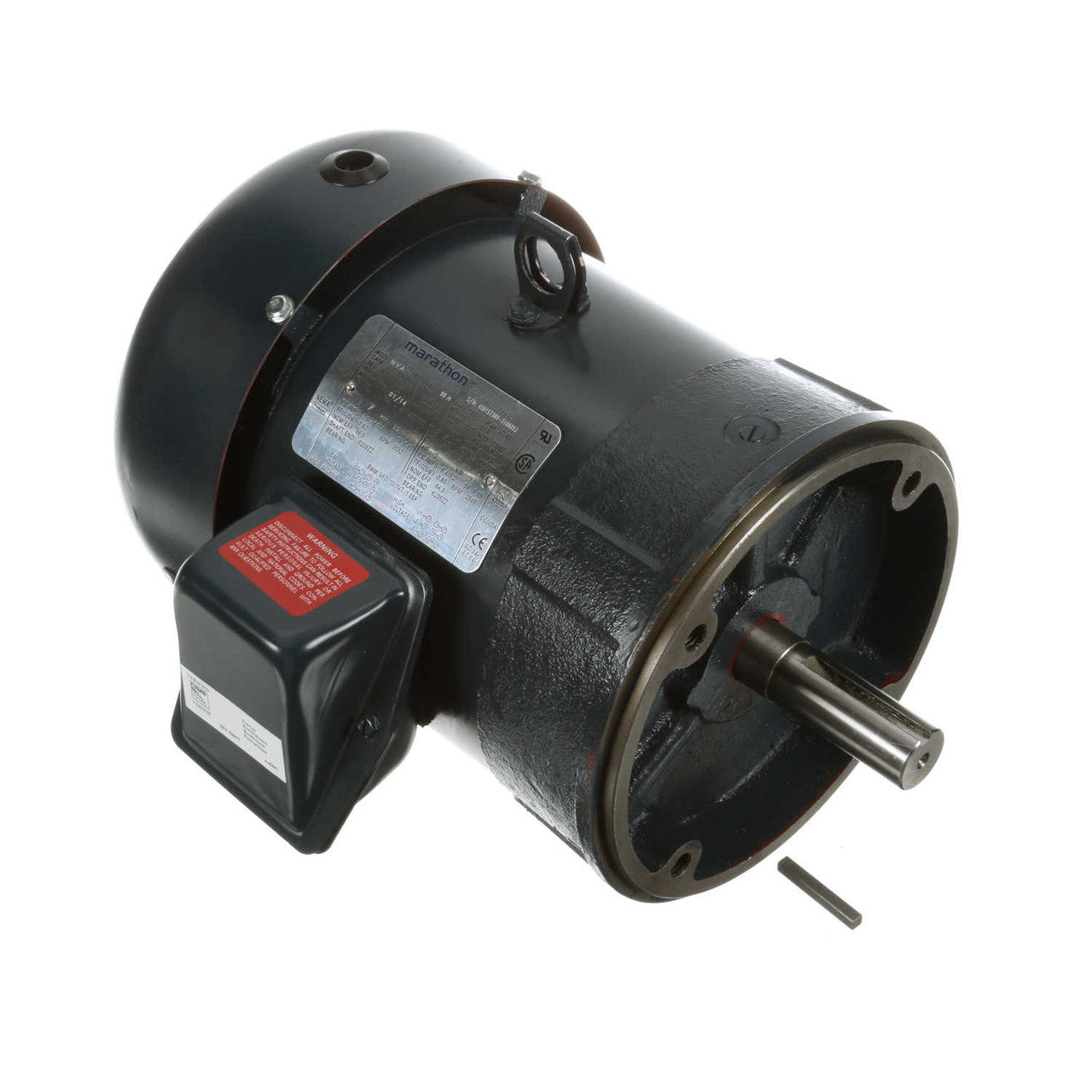

MARATHON MOTORS MGT1309 3-Phase General Purpose Motor

Product Description

The MARATHON MOTORS MGT1309 is a 3-phase general purpose motor designed for various industrial applications. Operating at 208-230/460 Volts and achieving speeds of 3600 RPM, this motor is built with a 182TC frame and features a totally enclosed fan cooled (TEFC) enclosure. It is suitable for Division 2 / Zone 2 Class 1 hazardous duty environments and inverter duty requirements. This motor provides efficiency compliant with NEMA Premium standards and meets EISA 2007 requirements.

• Operates at 208-230/460 Volts
• Includes a TEFC enclosure
• Designed for inverter duty applications

Product Highlights

This general purpose motor is created for reliable performance in demanding settings. It can adapt to various installation requirements and is ideal for HVAC systems, pumps, and other industrial applications.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1309

Technical Specifications

• Horsepower: 3 HP
• Speed: 3600 RPM
• Voltage: 208-230/460 V
• Frame Size: 182TC
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Full Load Amps: 7.6/3.8
• NEMA Design: A
• Ambient Temperature: 40 °C
• Insulation Class: Class F
• Service Factor: 1.15
• Temperature Code: T2b
• Rotation: Reversible
• Bearings: Ball Bearings
• Weight: 83 lbs
• Certifications: UL recognized, CSA certified, CE mark
