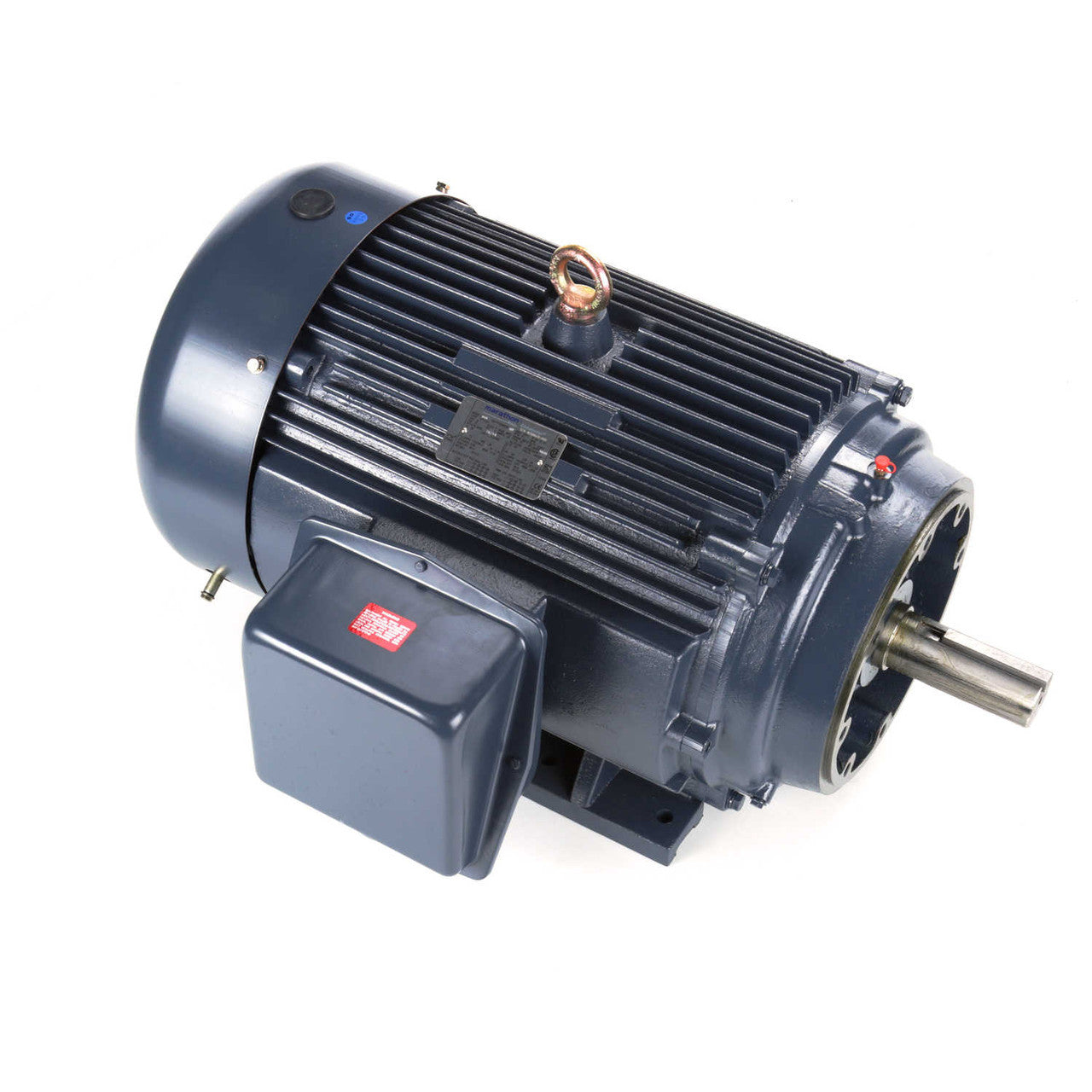

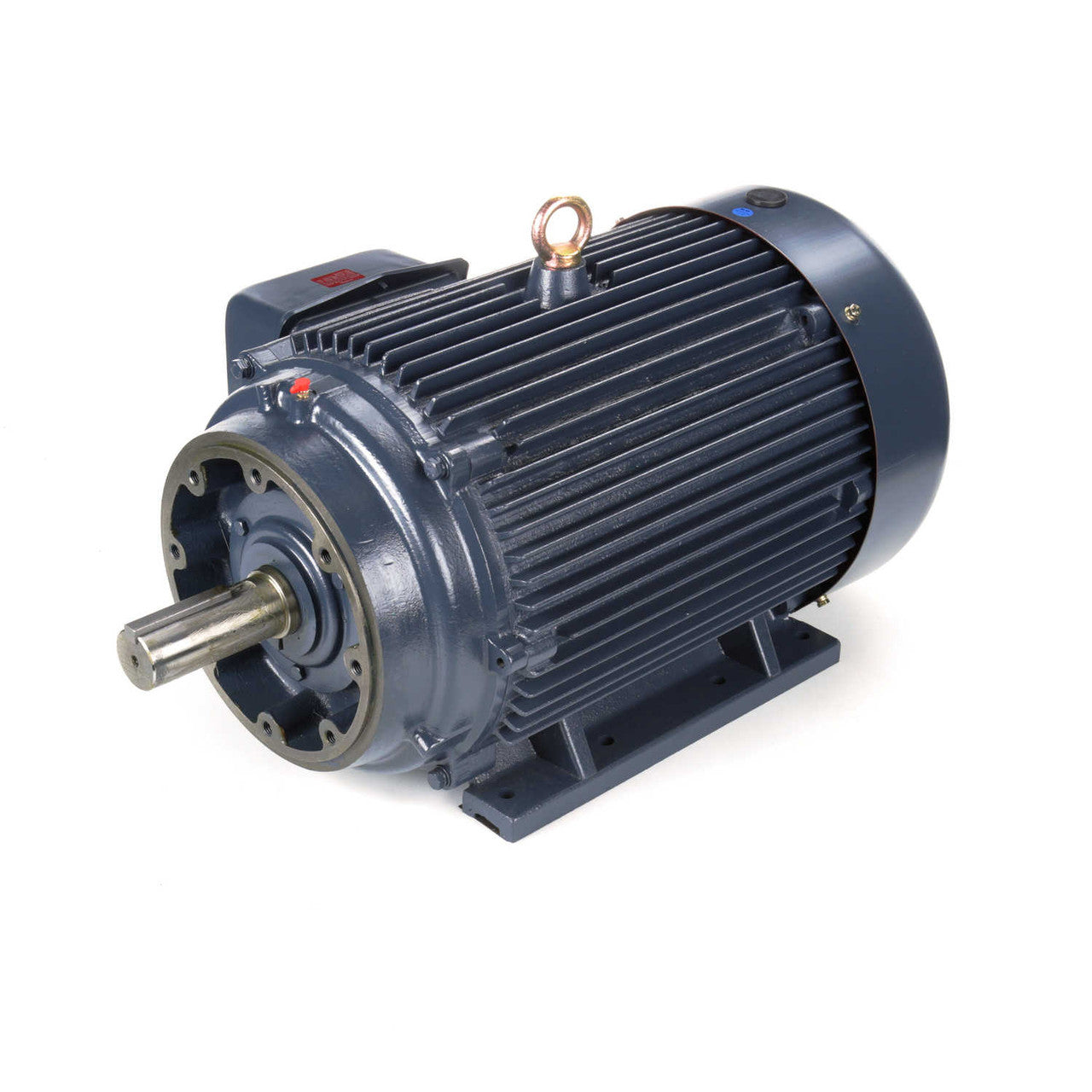

MARATHON MOTORS MGT1243 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1243 is a three-phase general-purpose motor. This motor is designed with a cast iron frame and features a totally enclosed fan cooled (TEFC) design for enhanced durability. It meets NEMA premium efficiency standards and complies with EISA 2007 requirements, making it suitable for various industrial applications.

• Compliant with EISA 2007 standards.
• Cast iron frame provides strength and longevity.
• Totally Enclosed Fan Cooled (TEFC) for protection and cooling.

Product Highlights

This motor is versatile for use in a variety of applications requiring a three-phase electric motor. With its robust construction and efficiency, the MARATHON MOTORS MGT1243 is ideal for demanding environments.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1243

Technical Specifications

• Horsepower: 75 hp
• RPM: 1800
• Input Voltage: 230/460 volts
• Frame Size: 365TC
• Full Load Amps: 173/86.5
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15
• Insulation Class: Class F
• Ambient Temperature: 40 °C
• Bearings: Ball Bearings
• Winding: Low Voltage, Wye-Delta
• Overload Protection: None
• UL Recognized: Yes
• CSA Certified: Yes
• CE Mark: Yes
• Weight: 1100 lbs
