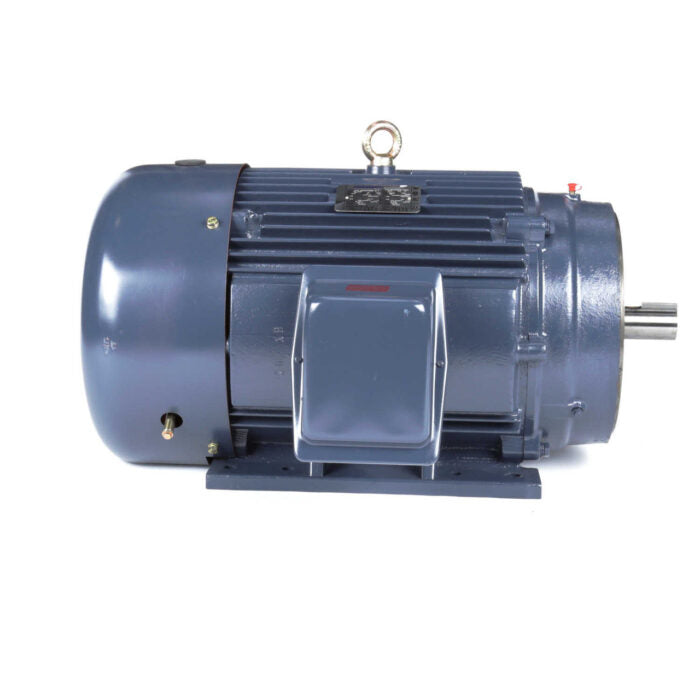

MARATHON MOTORS MGT1236 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1236 is a versatile general-purpose motor suitable for a variety of applications. This motor features a robust cast iron frame that ensures durability and compliance with NEMA premium efficiency standards. It is designed as Totally Enclosed Fan Cooled (TEFC) to protect its components from external elements.

• Inverter duty with 10:1 variable and constant torque capabilities
• Reversible rotation with 12 leads for low voltage line starting
• Ball bearings enhance performance and longevity

Product Highlights

This motor is ideal for various industrial applications, providing reliable performance under different operating conditions.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1236

Technical Specifications

• Horsepower: 50 hp
• RPM: 3568
• Voltage: 230/460 V
• Frame: 326TSC
• Load Amps: 109/54.5
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Ambient Temperature: 40 °C
• Service Factor: 1.15
• Insulation Class: Class F
• Rotation: Reversible
• Number of Speeds: 1
• Bearings: Ball Bearings
• Keyed Shaft Diameter: 1 7/8 inches x 3 3/4 inches
