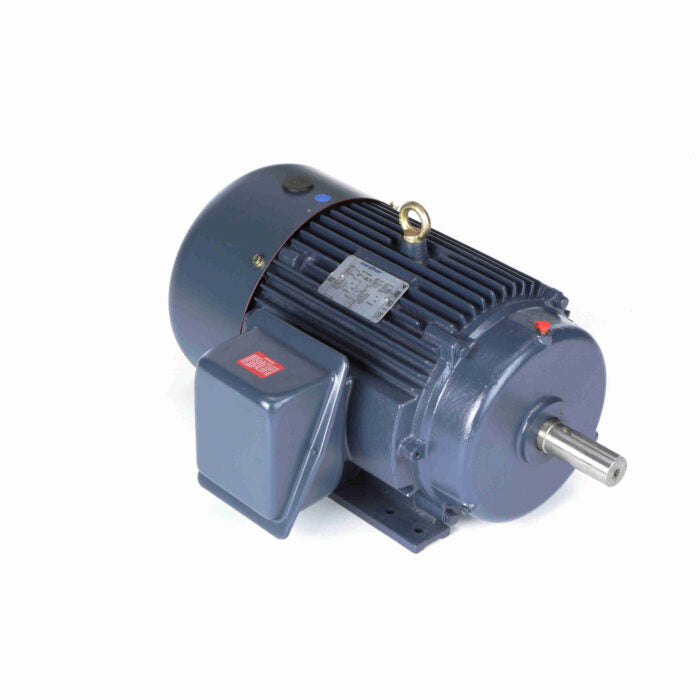

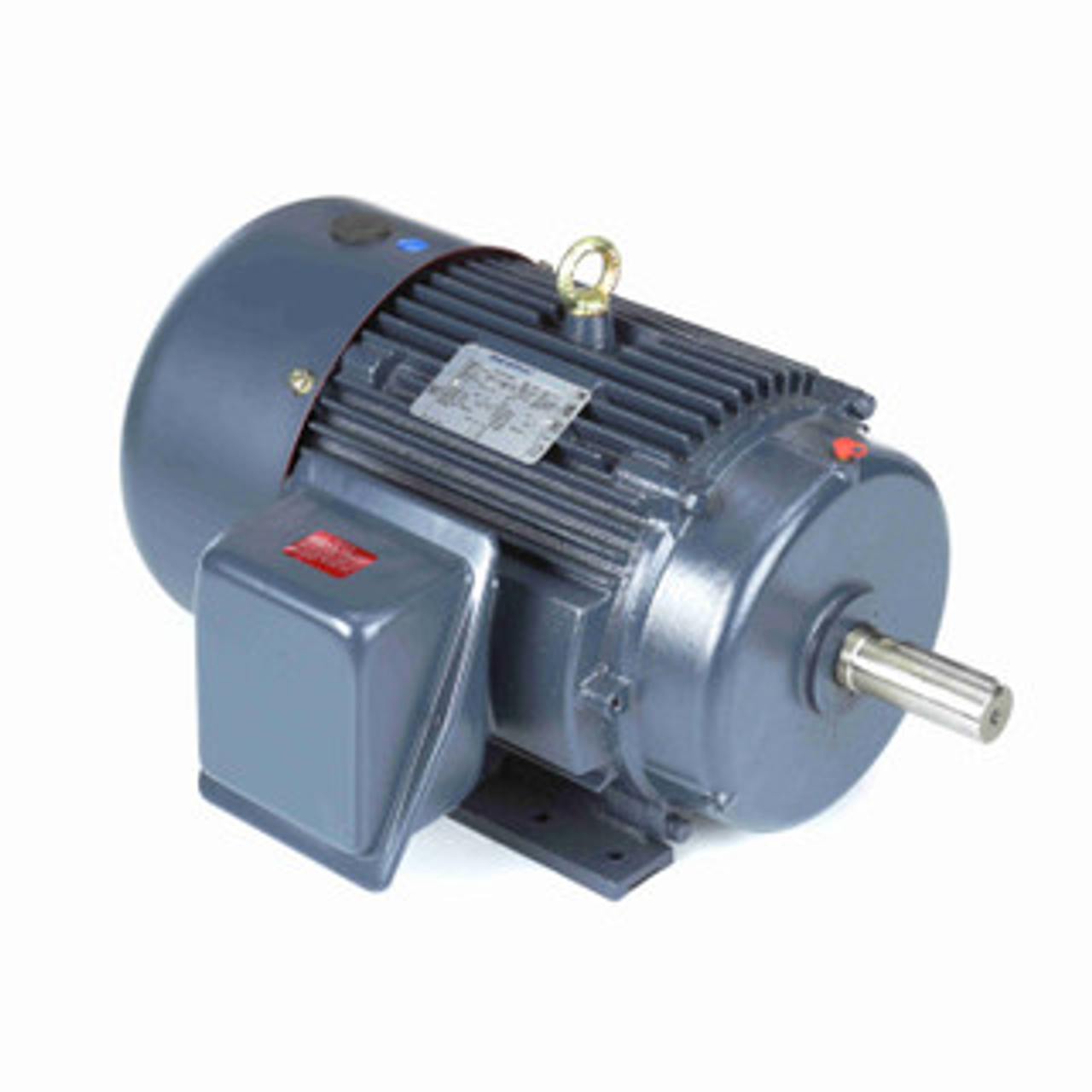

Marathon Motors MGT1125 General Purpose Electric Motor

Product Description

The Marathon Motors MGT1125 is a three-phase electric motor designed for general-purpose use. This motor is built with a sturdy cast iron frame and brackets, ensuring durability. It features a totally enclosed fan-cooled (TEFC) design that protects the motor from external elements. The MGT1125 meets NEMA Premium efficiency standards and complies with EISA 2007 regulations. It is UL recognized, CSA certified, and CE marked.

• Three-phase power for reliable performance.
• Class F insulation for excellent heat resistance.
• IP55 rated enclosure for protection from dust and water.

Product Highlights

This motor is well-suited for various applications in industrial settings, offering reversible rotation and a robust design.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1125

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 20 HP
• RPM: 1800
• Voltage: 575V
• Frame: 256T
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Full Load Amps: 19.4
• Service Factor: 1.15
• Ambient Temperature: 40 °C
• Temperature Code: T2B
• Shaft Diameter: 1 5/8 inches (keyed)
• Mounting: Rigid base with dual frame mounting holes
• Bearings: Ball Bearings
