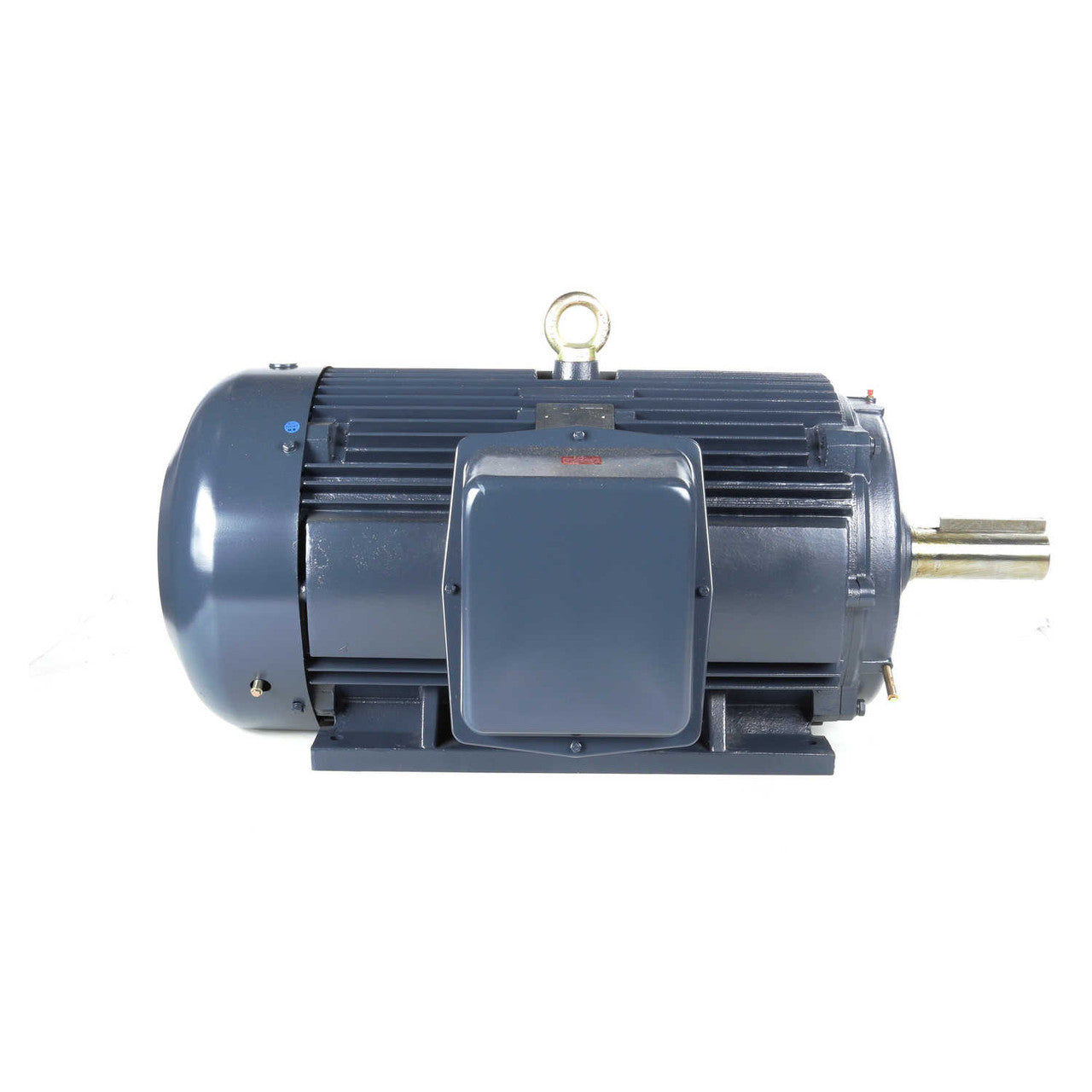

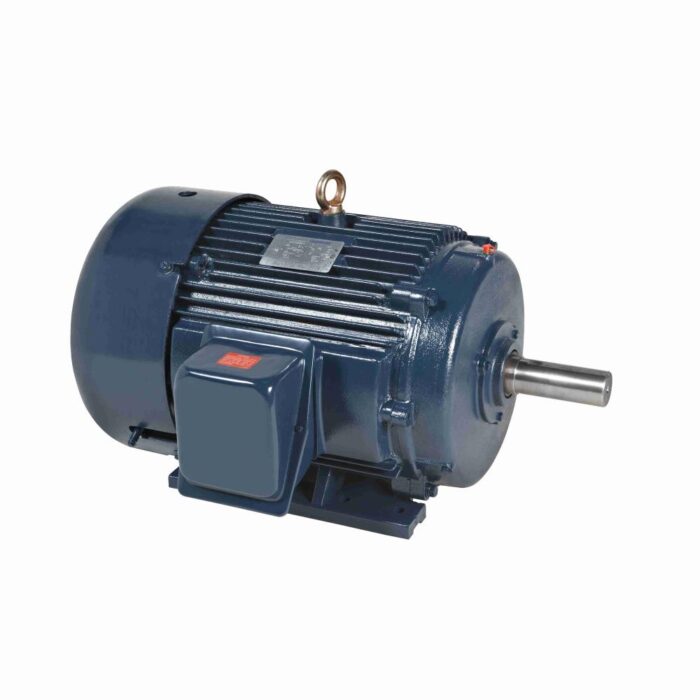

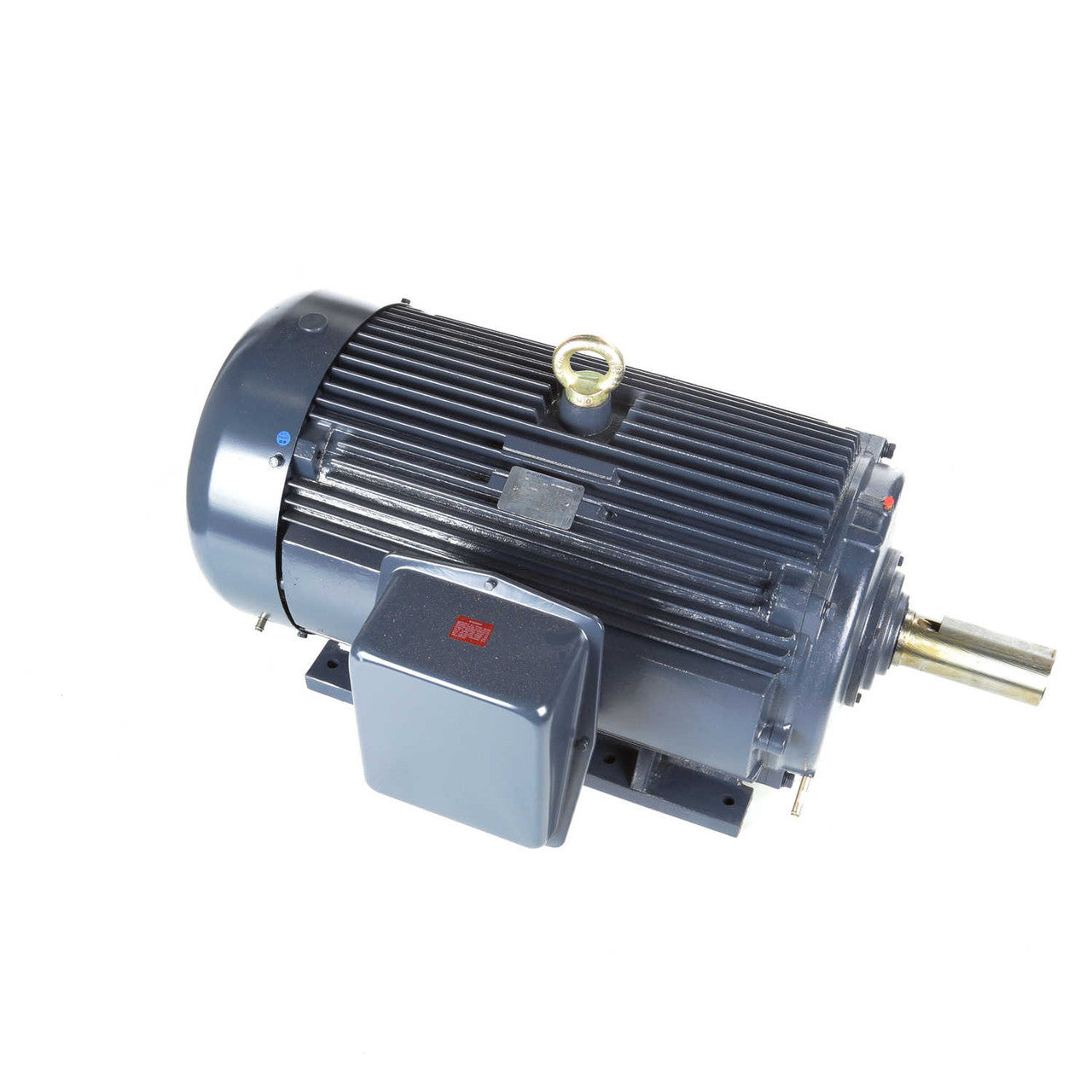

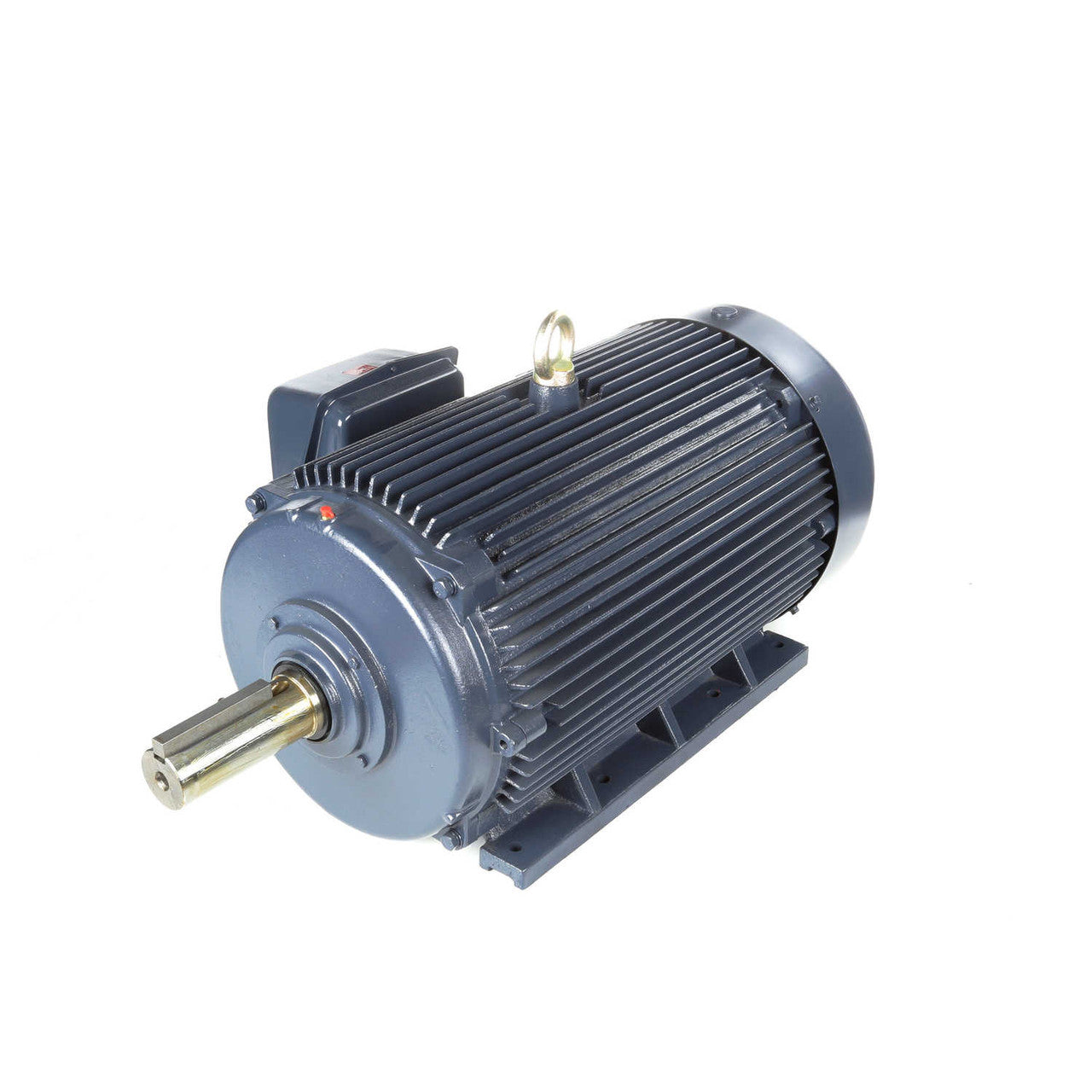

MARATHON MOTORS MGT1055 Three Phase Motor

Product Description

The MARATHON MOTORS MGT1055 is a three-phase induction motor built for general-purpose use. This motor has a totally enclosed fan-cooled (TEFC) design and a rigid base. It is rated for inverter duty with a variable torque of 10:1 and constant torque of 10:1. The motor is suitable for Division 2/Zone 2, Class 1 (gases), Groups A, B, C, and D settings. With Class F insulation, it supports standard F1 assembly and can be reversed to F2 assembly.

• Compliant with EISA 2007 for NEMA Premium efficiency
• Cast iron frame construction
• UL Recognized, CSA Certified, and CE Mark

Product Highlights

This motor is designed for robust performance in various industrial environments.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1055

Technical Specifications

• Horsepower: 200
• RPM: 1800
• Voltage: 460V
• Frame: 447T
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Bearing Type: Ball Bearings
• Full Load Amps: 225
• Weight: 2350 lbs
