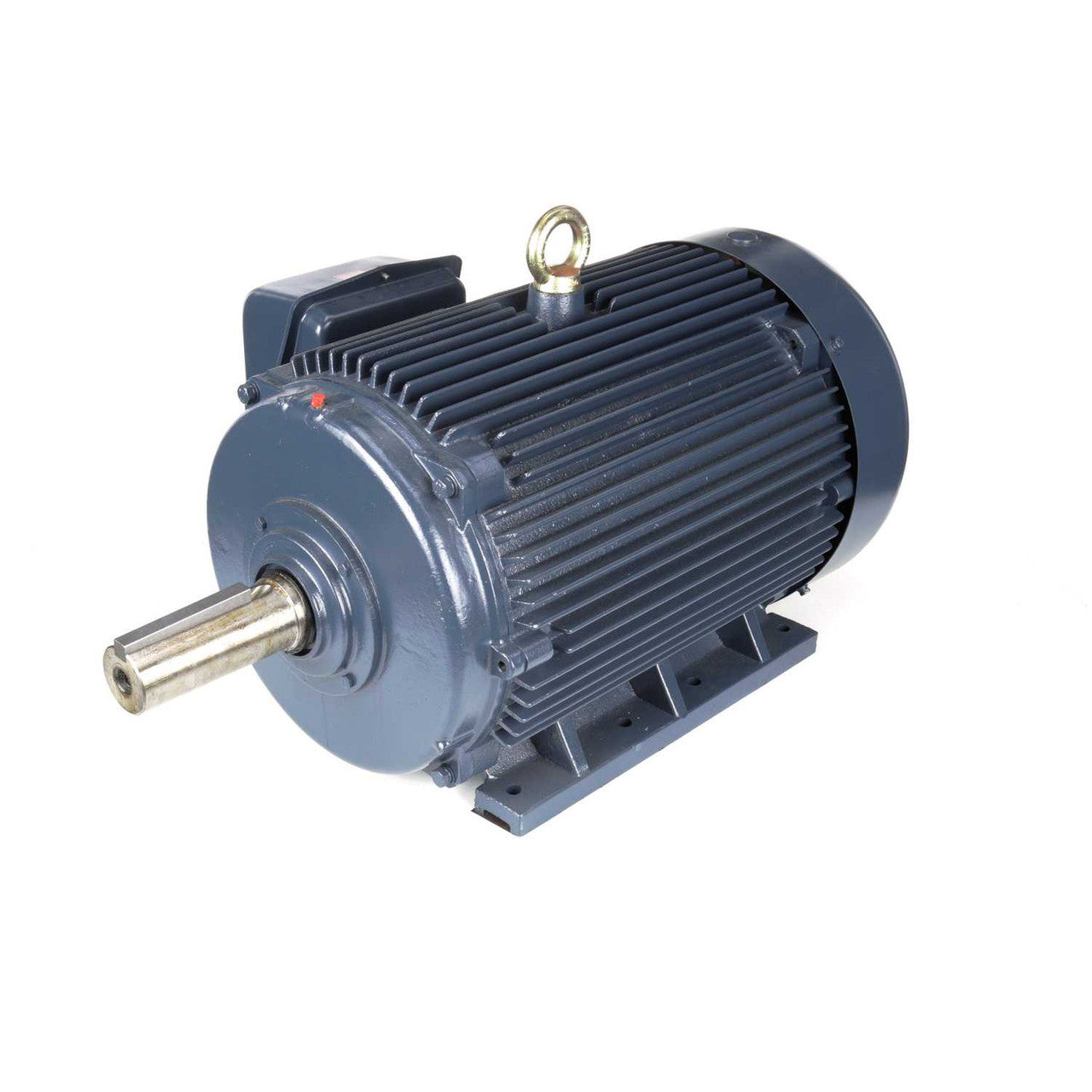

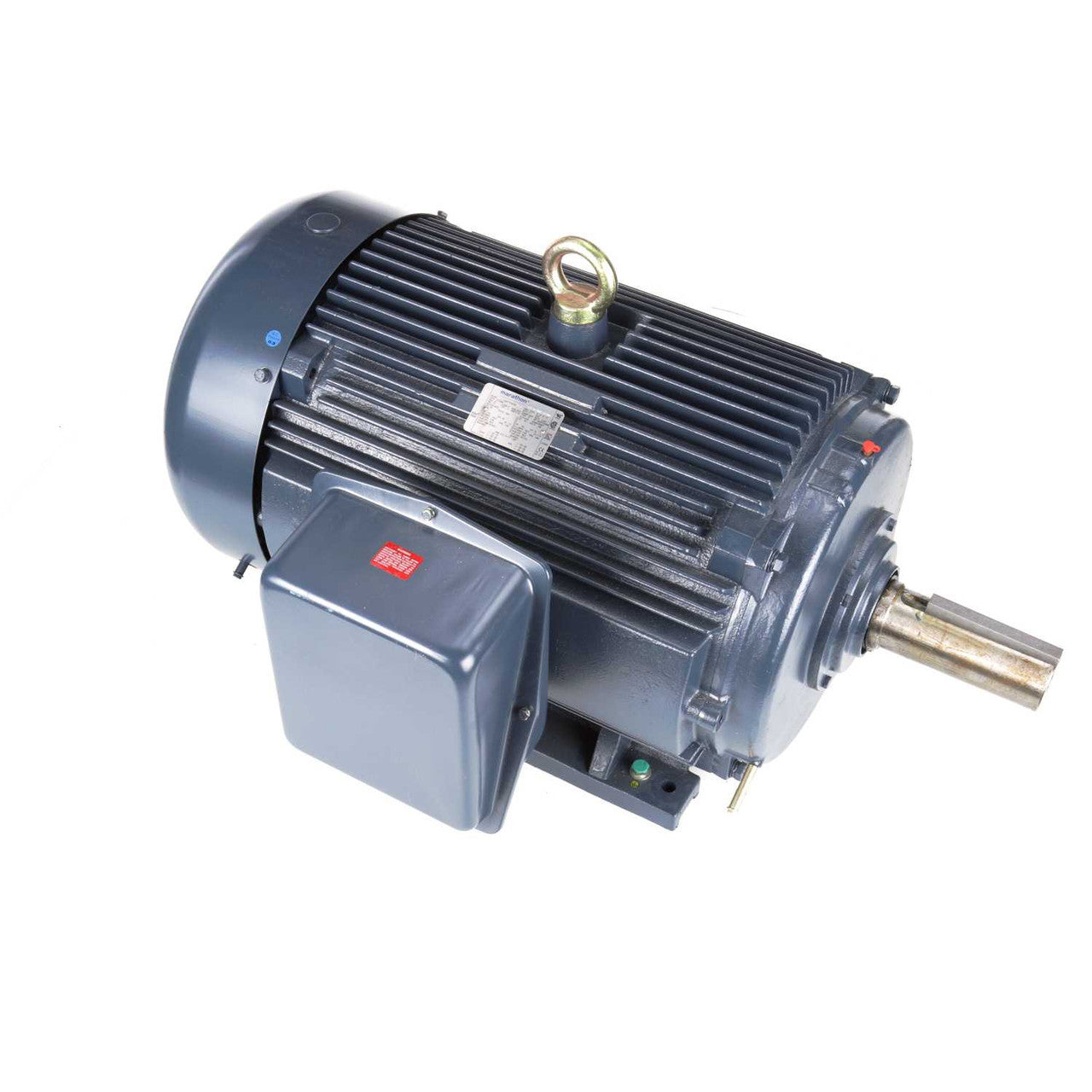

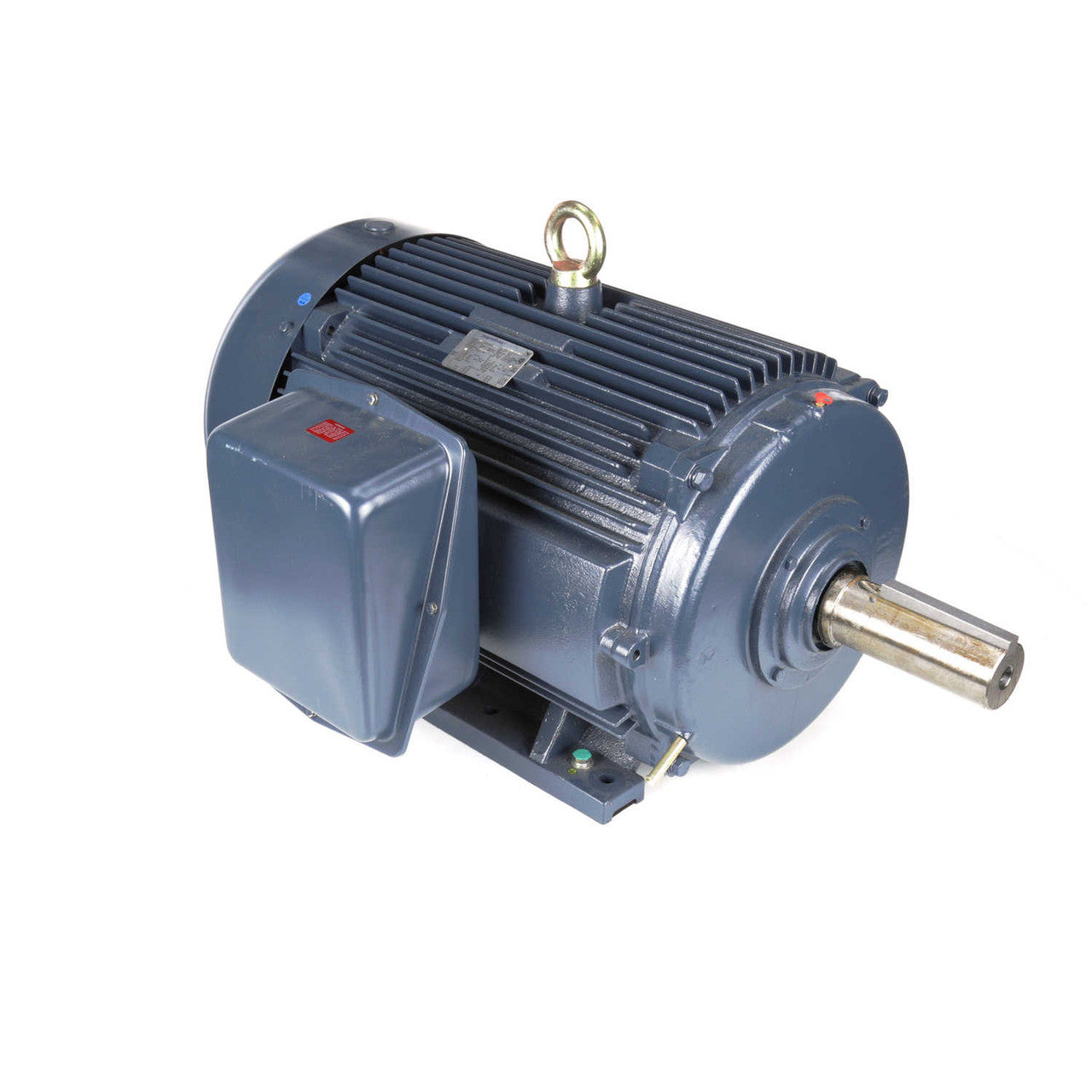

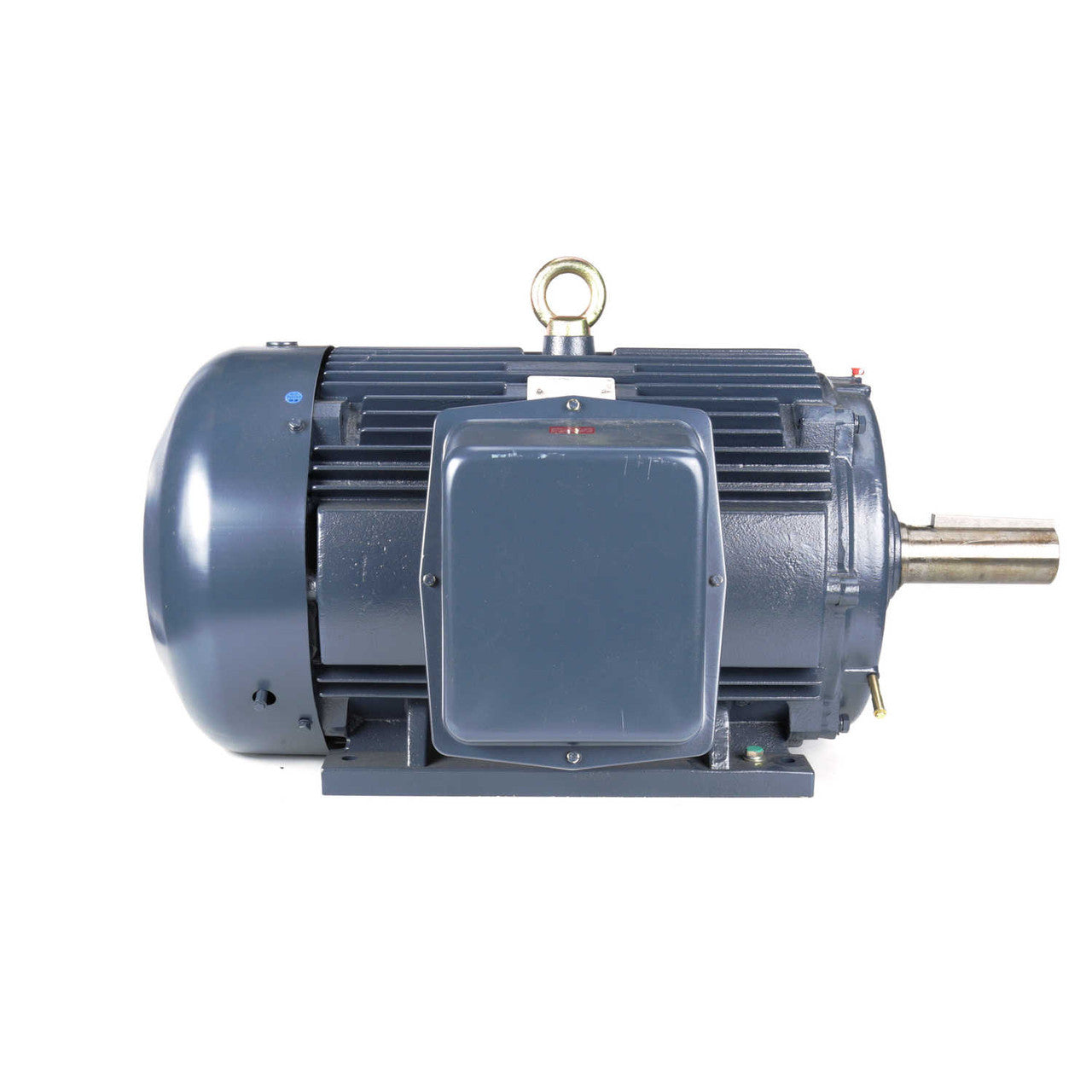

MARATHON MOTORS MGT1049 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1049 is a three-phase general purpose motor designed for various electric applications. It features a cast iron frame and a totally enclosed fan cooled (TEFC) enclosure, providing durability and protection. This motor is ideal for operations requiring a reversible electric motor. It includes a rigid base mount and a keyed shaft for secure installation. The motor also utilizes ball bearings for smooth operation.

• Electrical Type: Three Phase
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Rotation: Reversible

Product Highlights

This motor offers versatility and reliability for a range of industrial applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1049

Technical Specifications

• Horsepower: 125 HP
• RPM: 1790 / 1800
• Voltage: 460V
• Frame: 444T
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15
• Ambient Temperature: 40°C
• Full Load Amps: 140
• Insulation Class: Class F
• Shaft: Keyed shaft 3 3/8 inches diameter 8 1/2 inches
