MARATHON MOTORS MGT1042 General Purpose Motor

Product Description

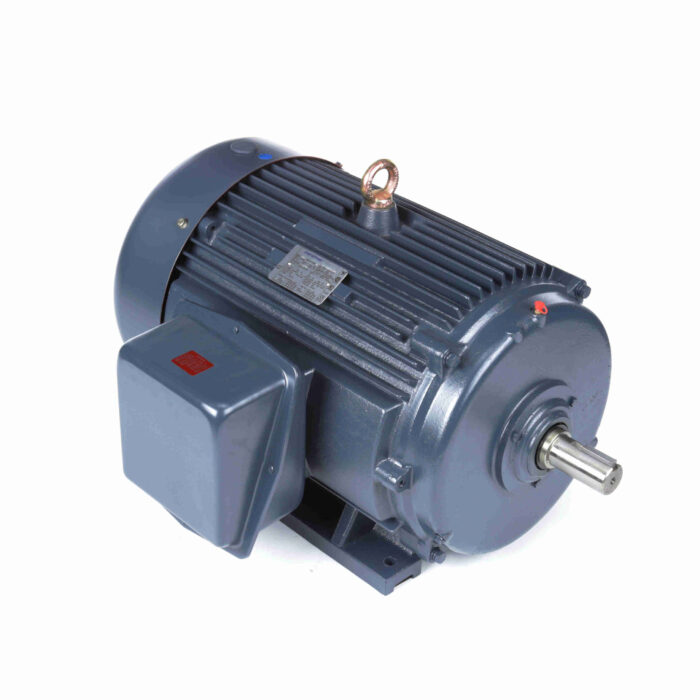

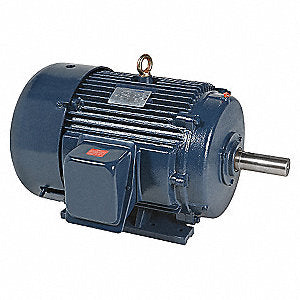

The MARATHON MOTORS MGT1042 is a general-purpose phase motor suitable for various applications. It is constructed with cast iron and features a totally enclosed fan-cooled enclosure. This motor supports rigid base mounting and offers reversible rotation, making it versatile for different setups. The motor includes a keyed shaft for secure attachment.

• Durable cast iron construction
• TEFC enclosure for protection
• Reversible rotation capability

Product Highlights

This motor is ideal for HVAC, industrial, and other demanding applications.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1042

Technical Specifications

• Electrical Type: Phase
• Input Voltage: 230/460 V
• Horsepower: 75 HP
• RPM: 3570
• Frame Size: 365TS
• Enclosure: TEFC
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Output Current: 168.0/84.0 A at 230/460 V
• Service Factor: 1.15
• Overload Protection: None
• Mounting Type: Rigid base mount
• Shaft: Keyed, 1 7/8 inches diameter x 3 3/4 inches
• Insulation Class: Class F
• Weight: 1025 lbs
