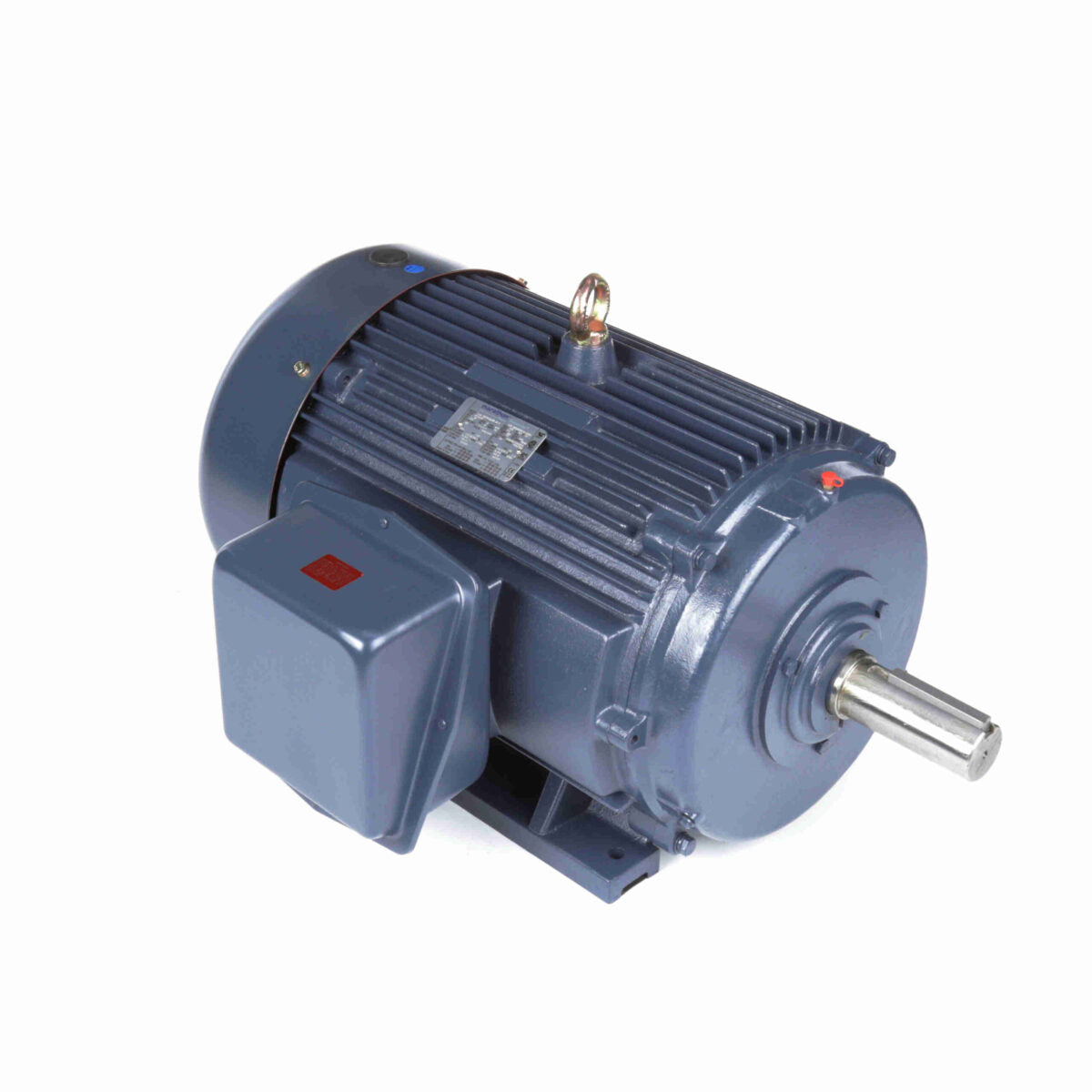

MARATHON MOTORS MGT1038 General Purpose Motor 50 hp

Product Description

The MARATHON MOTORS MGT1038 is a general-purpose motor ideal for various industrial applications. This motor has a durable cast iron frame and brackets, ensuring reliability. It operates under inverter duty, providing both variable and constant torque with a ratio of 10:1. Designed with Class F insulation, it allows for standard assembly F1 and reversible F2 assembly. Its totally enclosed fan-cooled (TEFC) design enhances performance and longevity.

• Compliant with NEMA premium models and EISA 2007 standards.
• Suitable for Division 2/Zone 2 Class 1 (gases), Groups B, C, and D environments.
• Recognized by UL, certified by CSA, and carries the CE mark.

Product Highlights

Reliable general-purpose motor suitable for varied industrial settings.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1038

Technical Specifications

• Horsepower: 50 hp
• Speed: 1200 rpm
• Input Voltage: 230/460 volts
• Frame Size: 365 T
• Bearing Type: Ball bearings
• Enclosure Type: Totally enclosed fan cooled
• Ambient Temperature: 40 °C
• Load Amperage: 117/58.5 load amps
