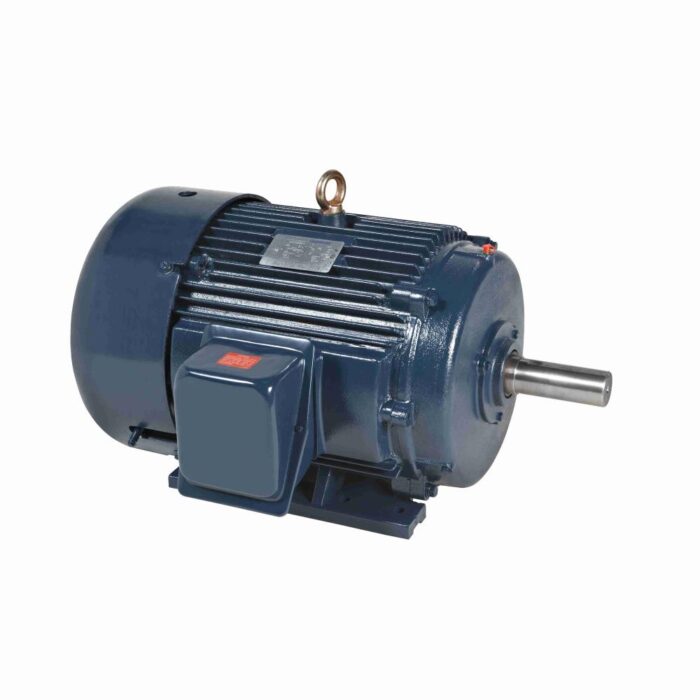

MARATHON MOTORS MGT1032 General Purpose Motor 30 HP 230/460 V

Product Description

The MARATHON MOTORS MGT1032 is a three-phase electric motor designed for general-purpose applications. This robust motor features a cast iron frame and is equipped with a Totally Enclosed Fan Cooled (TEFC) enclosure. The motor operates at a single speed and offers reversible rotation, making it versatile for various tasks.

• Cast iron frame construction
• Totally Enclosed Fan Cooled (TEFC) enclosure
• Meets or exceeds NEMA premium efficiency standards

Product Highlights

This durable motor is designed to deliver reliable performance in demanding environments while ensuring energy efficiency.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1032

Technical Specifications

• Horsepower: 30 HP
• Voltage: 230/460 V
• Load Amps: 80.0/40.0
• RPM: 1185
• Frame Size: 326 T
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Phase: Three Phase
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15
• Ambient Temperature: 40 °C
• Shaft Diameter: 2 1/8 x 5 1/4
• Insulation Class: Class F
