Marathon Motors MGT1027 General Purpose Motor 25 hp 208-230/460 Volts

Product Description

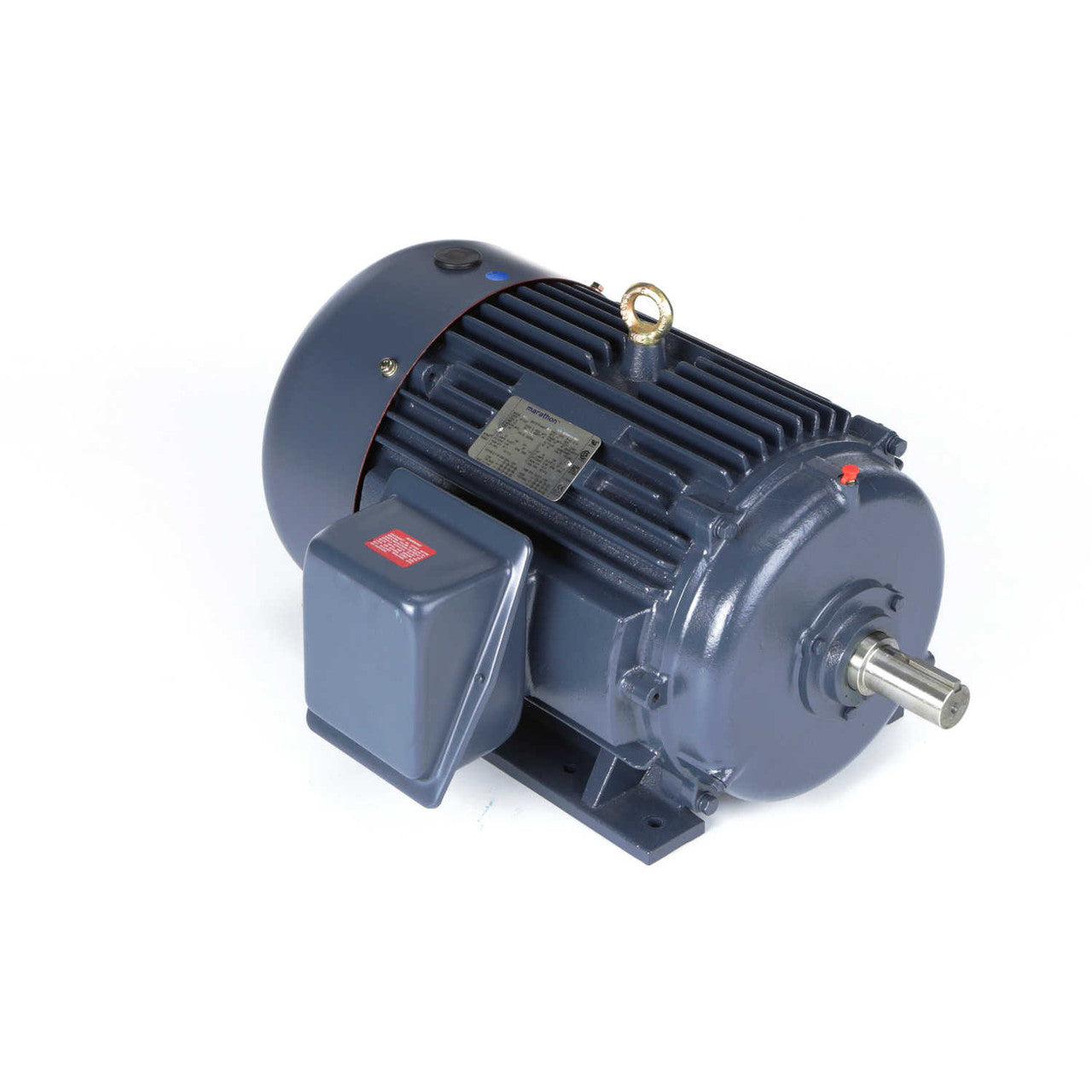

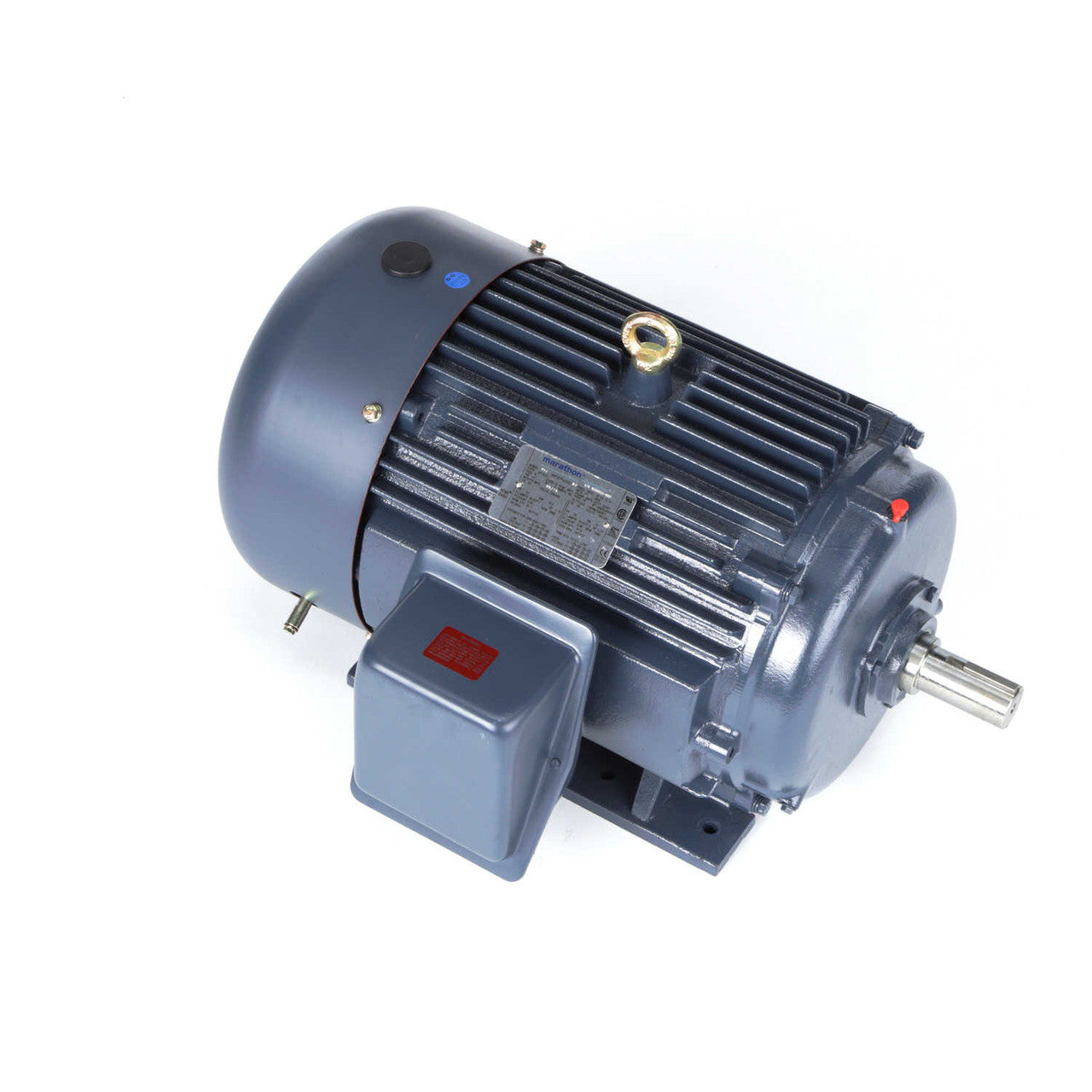

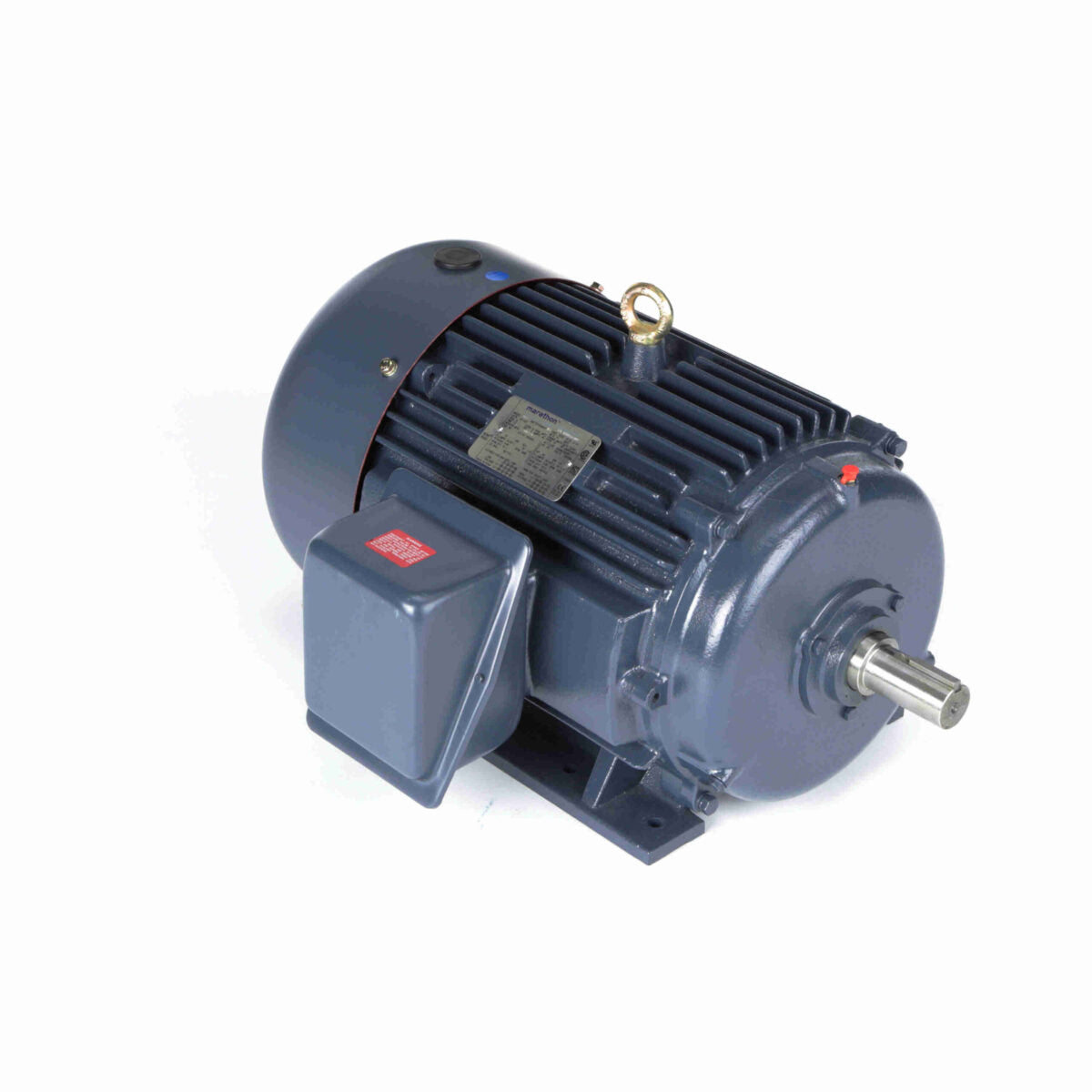

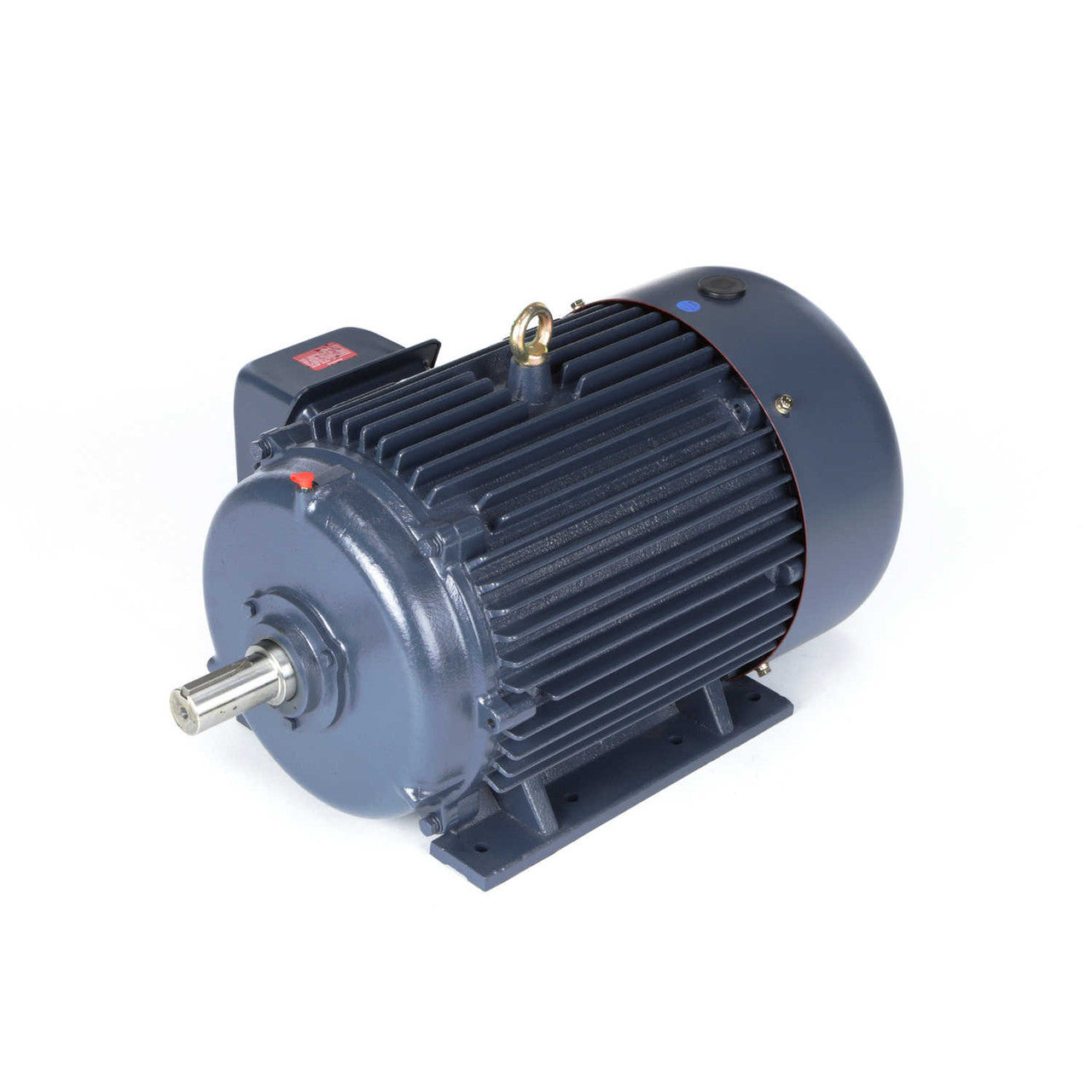

The Marathon Motors MGT1027 is a three-phase electric motor that operates at 208-230/460 volts. This motor is rated at twenty-five horsepower with a speed of approximately three thousand six hundred RPM. Its robust cast iron frame ensures durability and it features a totally enclosed fan-cooled (TEFC) enclosure, which makes it suitable for various industrial environments. This motor adheres to NEMA Premium efficiencies and complies with EISA 2007 standards.

• Rated for twenty-five horsepower
• Three-phase operation at 208-230/460 volts
• Totally enclosed fan-cooled (TEFC) design

Product Highlights

The MGT1027 motor supports multiple industrial applications due to its reliability and performance standards.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1027

Technical Specifications

• Horsepower: 25 hp
• RPM: 3600 RPM
• Input Voltage: 208-230/460 Volts
• Frequency: 60 Hz
• Phase: Three Phase
• Frame Size: 284TS
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Ambient Temperature: 40°C
• Full Load Amps: 55.5/27.7 A
• Bearings: Ball bearings
• Service Factor (Sinewave): 1.15
• Service Factor (IGBT): 1.0
• Insulation Class: F
• Temperature Code: T2B
• Mounting Type: Rigid base mount
• Shaft Diameter: 1 5/8 inches
• Shaft Length: 3 1/4 inches
• Material: Cast Iron
• Rotation: Reversible
• Inverter Duty: 10:1 variable torque and 10:1 constant torque
