MARATHON MOTORS MGT1021 General Purpose Motor 15 HP 254T

Product Description

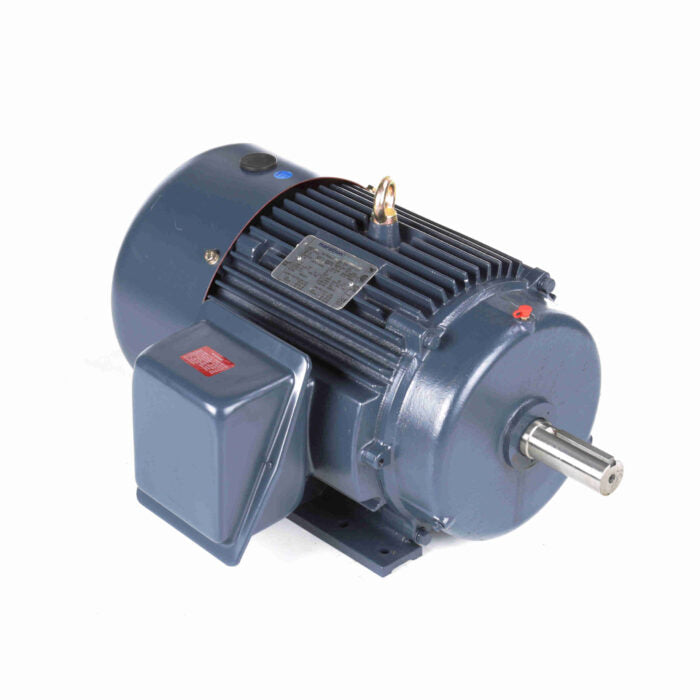

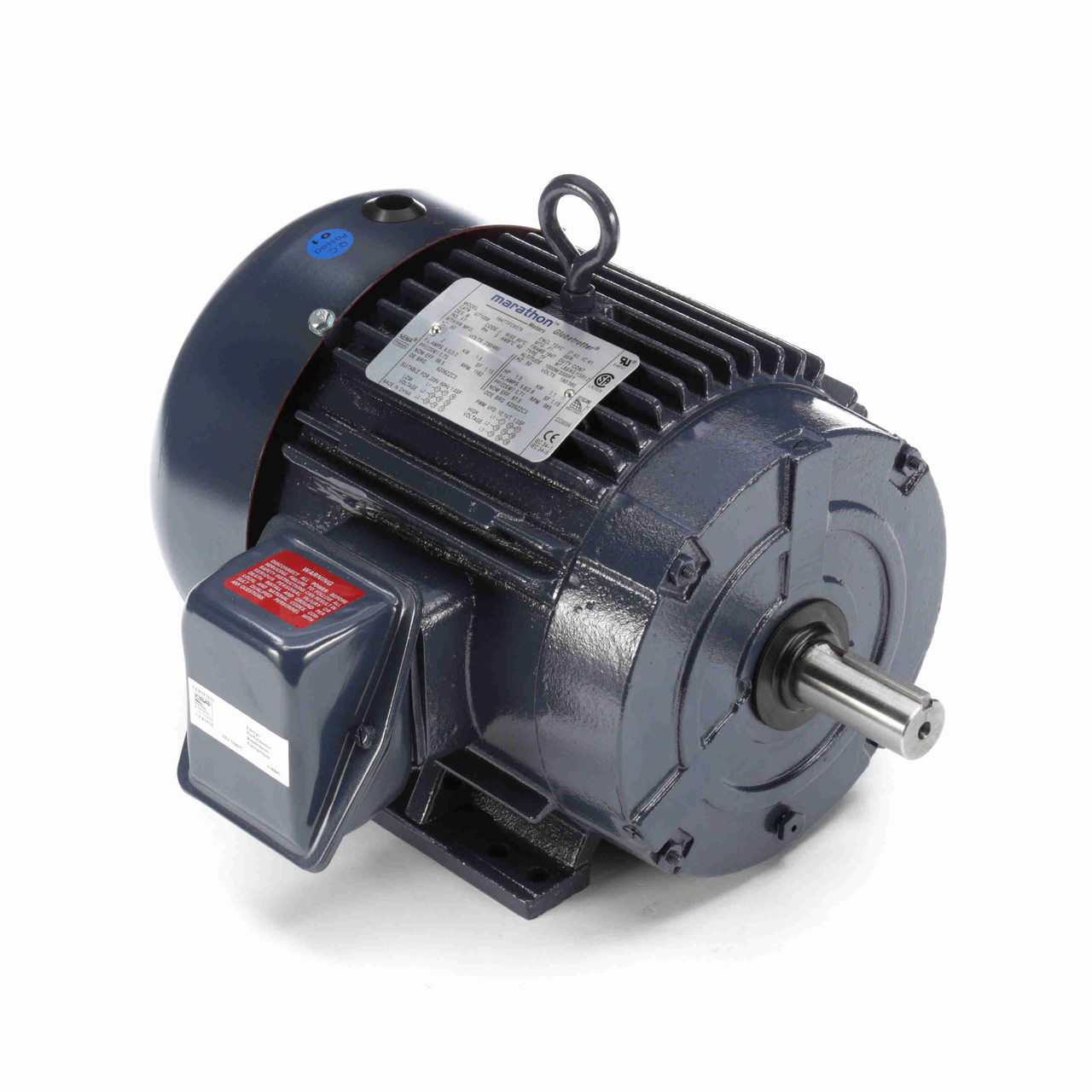

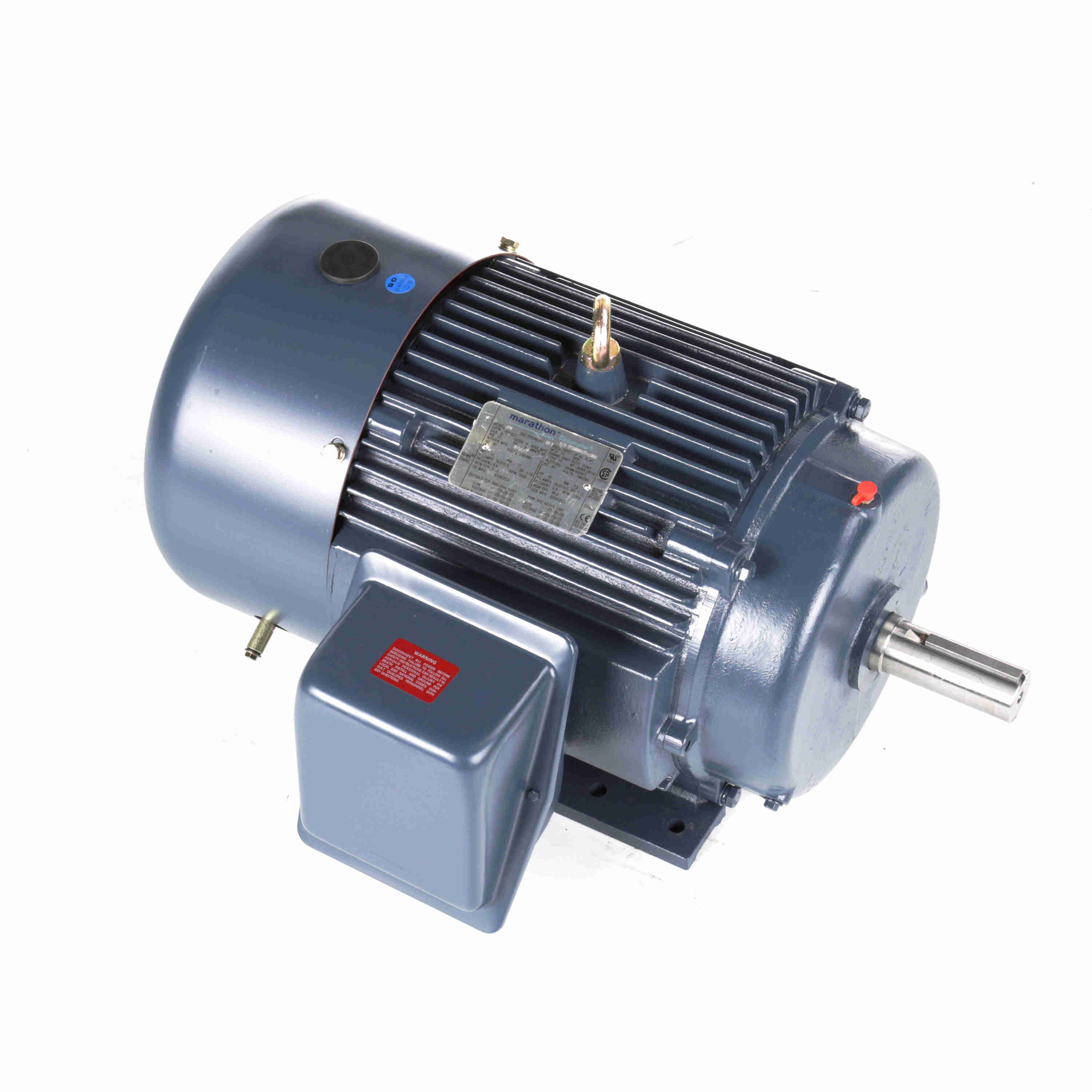

The Marathon Motors MGT1021 is a fifteen horsepower, three-phase general-purpose motor. This motor comes with a cast iron frame and a TEFC (Totally Enclosed Fan Cooled) design. It is suitable for various applications that require inverter duty, supporting either a ten to one variable torque or a ten to one constant torque workload.

• Rated for 15 HP.
• Operates at 3600 RPM.
• Designed with a 254T frame.

Product Highlights

This motor is ideal for industrial settings where reliability is key.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1021

Technical Specifications

• Horsepower: 15
• RPM: 3600
• Input Voltage: 230/460V
• Frame Size: 254T
• Nominal Efficiency: 91.0%
• Full Load Amps: 34/17.0
• C Dimension: 23.70
• Weight: 350 lbs
