MARATHON MOTORS MGT1009 General Purpose 3-Phase Motor

Product Description

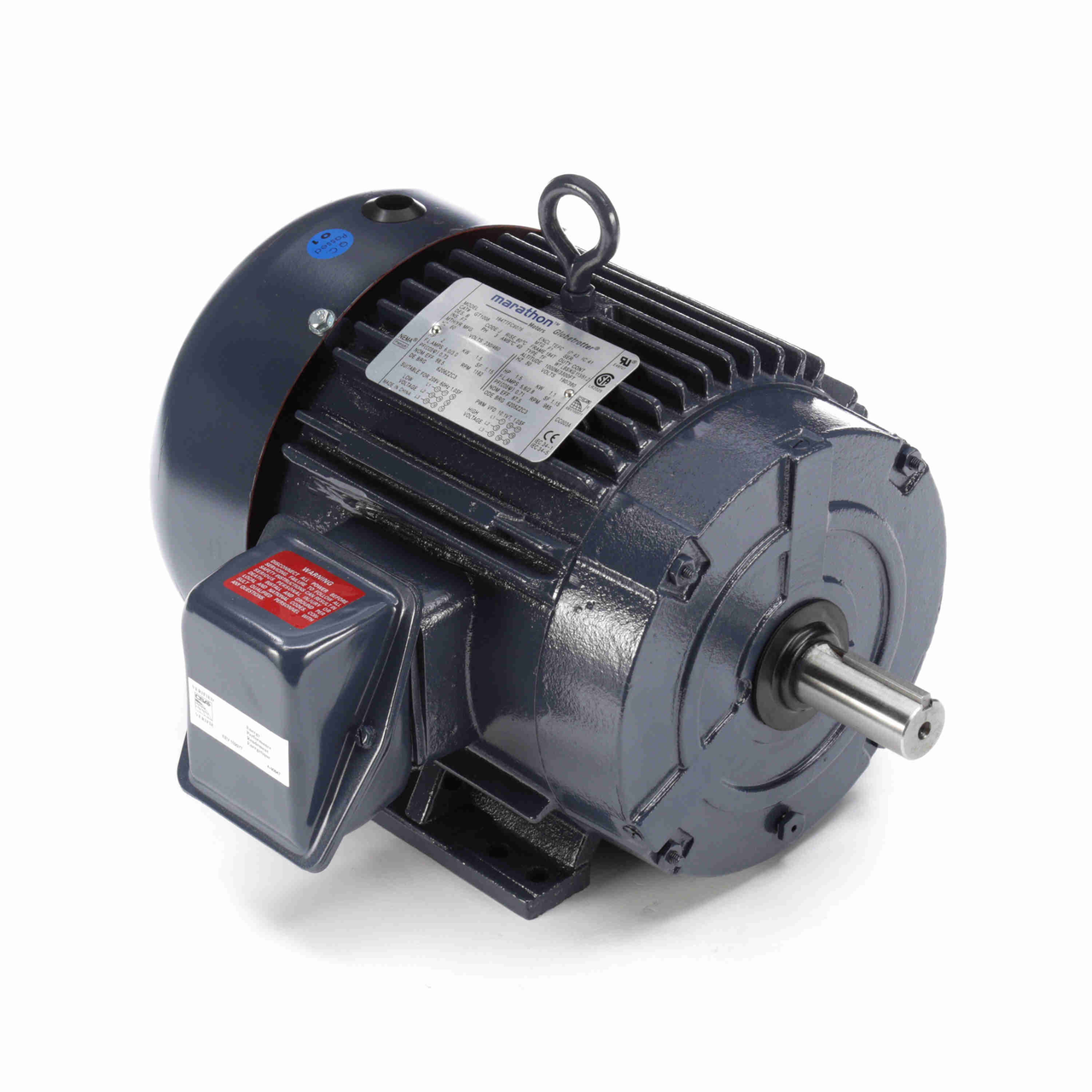

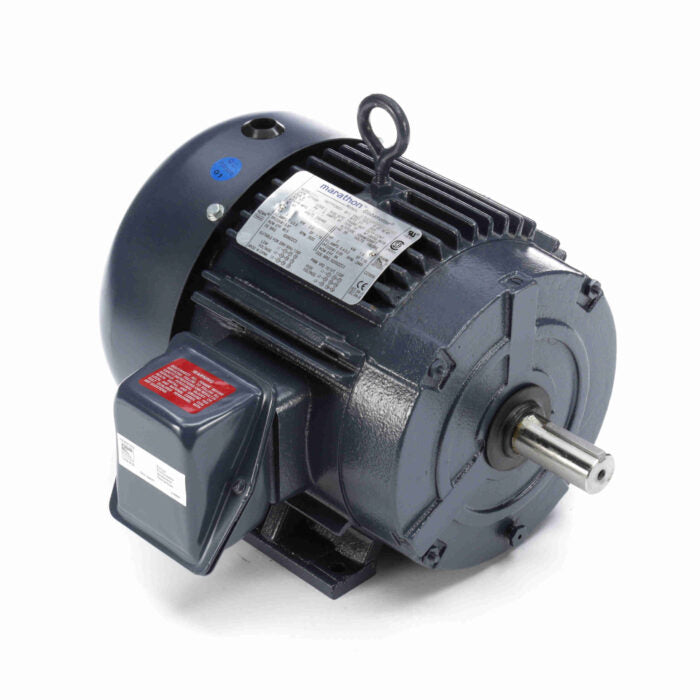

The MARATHON MOTORS MGT1009 is a reliable 3-phase general-purpose motor designed for various applications. This motor features a robust cast iron frame and brackets, providing durability and stability. It operates efficiently at a speed of 3600 RPM and has a service factor of 1.15, making it suitable for demanding tasks.

• 3 horsepower motor suitable for multiple applications
• UL Recognized, CSA Certified, and CE marked for safety compliance
• Reversible rotation for versatile installation options

Product Highlights

This motor meets or exceeds NEMA Premium efficiencies and complies with EISA2007 standards.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1009

Technical Specifications

• Horsepower: 3 HP
• RPM: 3600
• Voltage: 208-230/460 V
• Frame Size: 182T
• Efficiency: 86.5
• Full Load Amps: 7.6/3.8
• C Dimension: 14.80 inches
• Weight: 94 lbs
• Service Factor: 1.15
• Insulation Class: Class F
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Construction Material: Cast Iron
• Certifications: UL recognized, CSA certified, CE marked
• Warranty: 2-year warranty
• Rotation: Reversible
