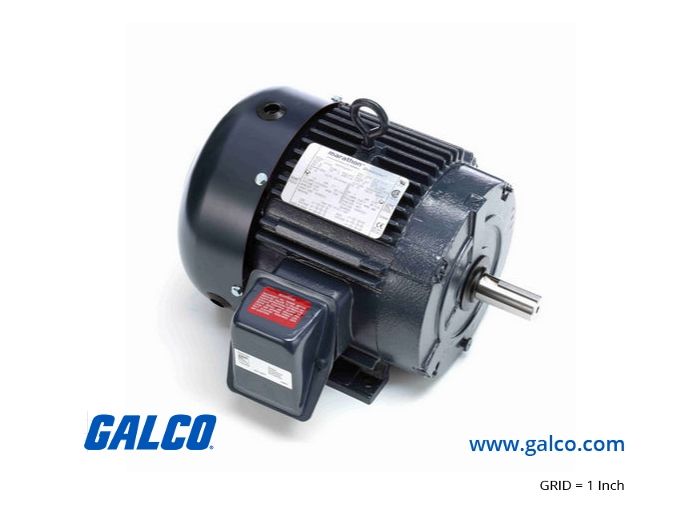

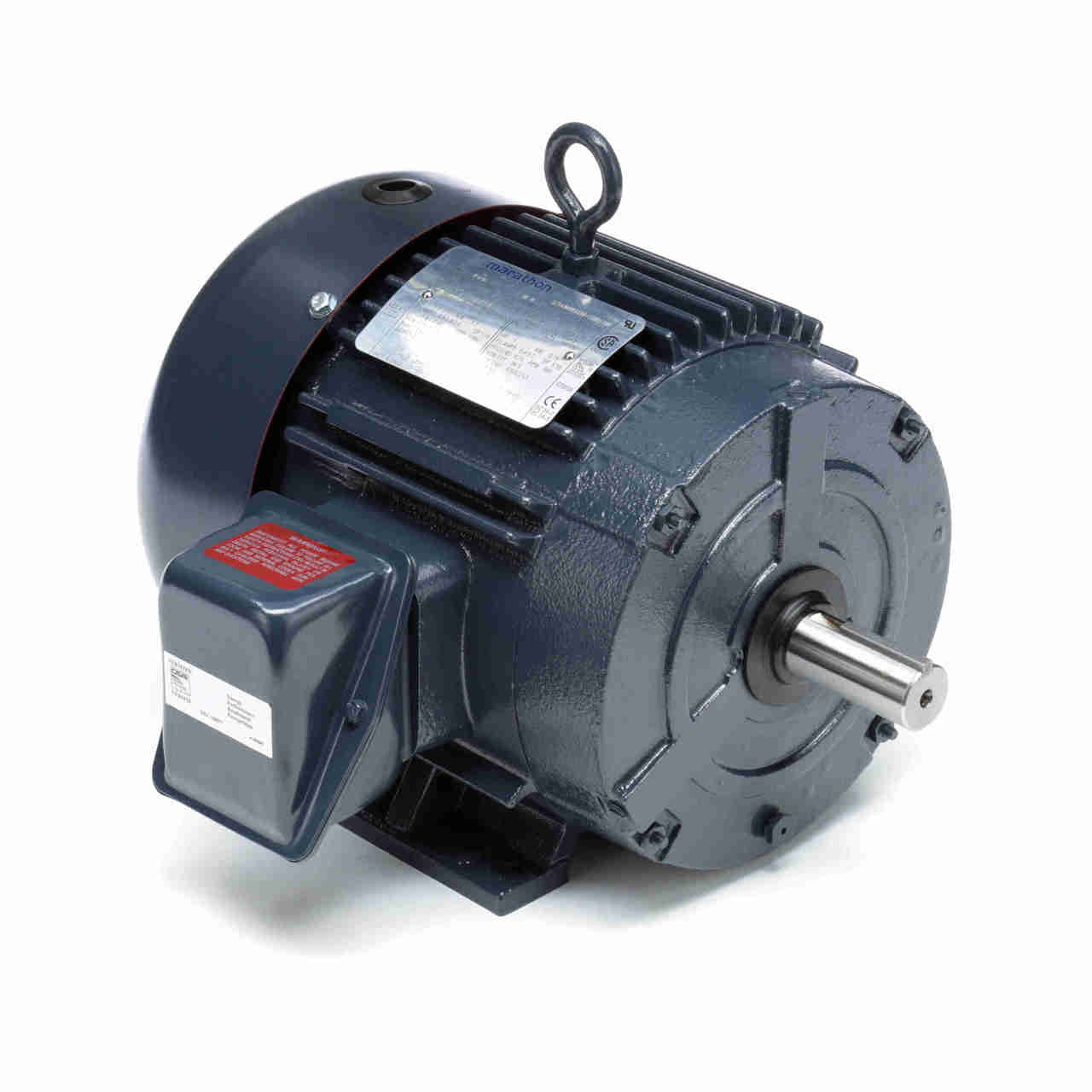

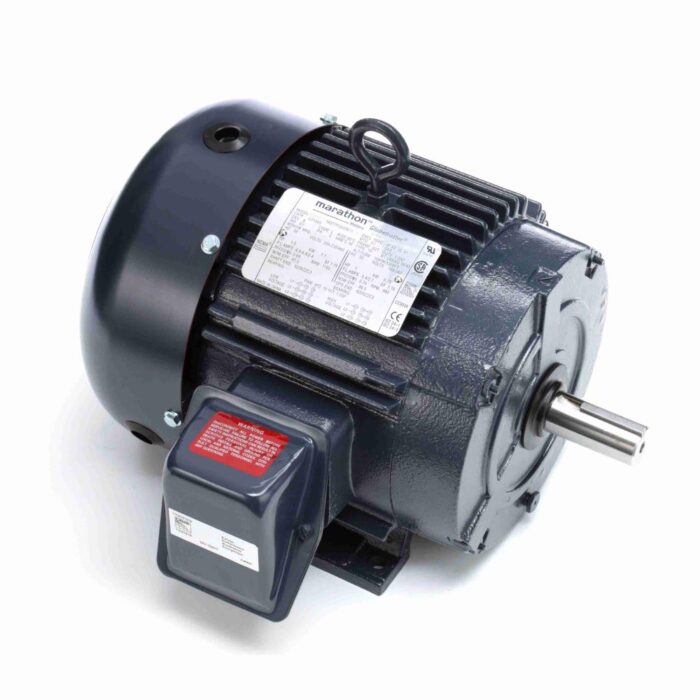

Marathon Motors MGT1005 General Purpose Motor

Product Description

The Marathon Motors MGT1005 is a three-phase, general-purpose motor designed for various applications. This NEMA Premium motor features a durable cast iron frame and brackets, ensuring reliability in demanding environments. It supports inverter duty with 10:1 variable and constant torque, making it versatile for different use cases. The motor comes with Class F insulation and has been rated as UL Recognized, CSA Certified, and CE Marked, confirming its adherence to safety and industry standards.

• Inverter duty rated with variable and constant torque capabilities
• Class F insulation for enhanced thermal protection
• Standard F1 assembly, reversible to F2 assembly

Product Highlights

This motor meets or exceeds NEMA Premium efficiencies and is compliant with EISA2007, making it suitable for various applications requiring efficient power usage.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1005

Technical Specifications

• HP: 1-1/2
• RPM: 1200
• Input Voltage: 208-230/460
• FRAME: 182T
• NOM. EFF.: 87.5
• FULL LOAD AMPS: 4.8/2.4
• C DIMENSION: 14.80
• CROSS REFERENCE: 182TTFC6076, GT1005A, E823A
