MARATHON MOTORS MGT0422 Close Coupled Pump Motor 15 HP

Product Description

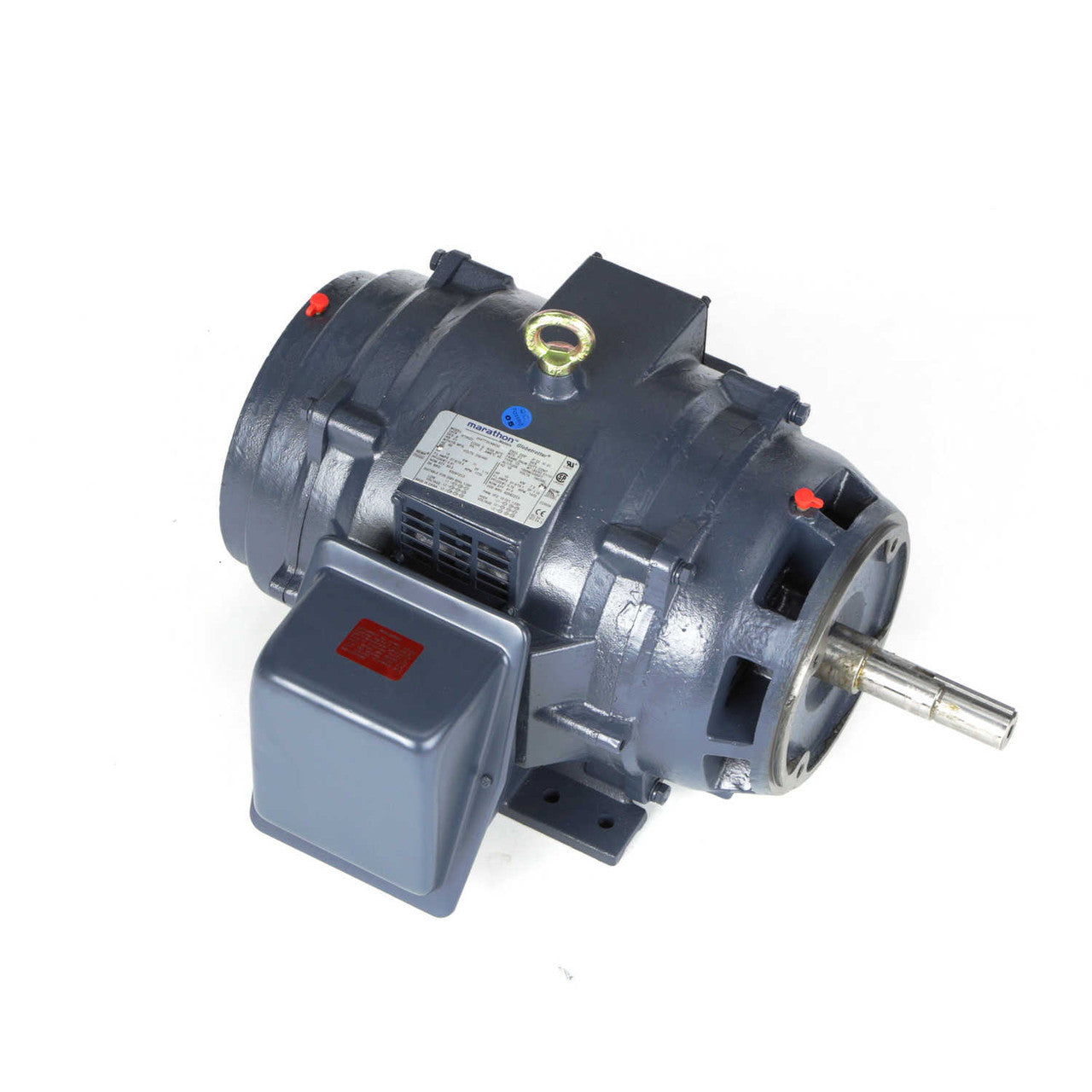

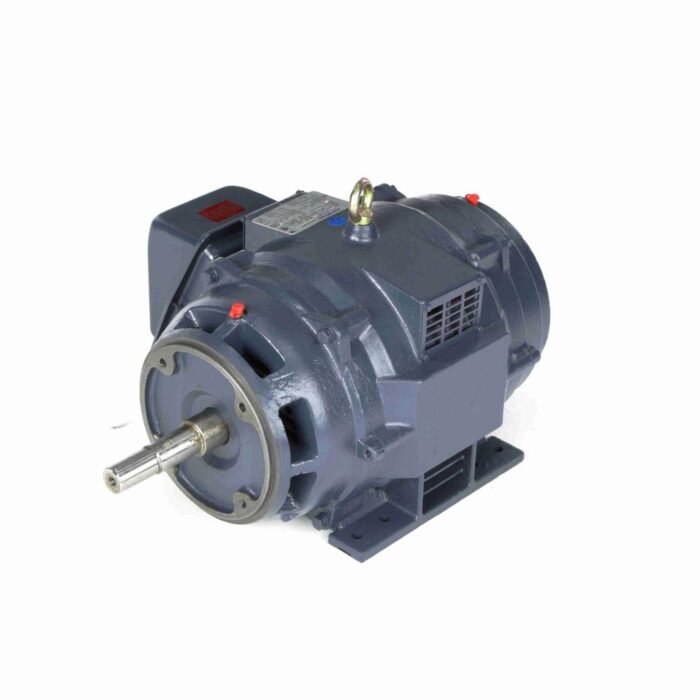

The MARATHON MOTORS MGT0422 is a three-phase close-coupled pump motor designed for applications that require variable frequency drives (VFD). It operates with a voltage supply of two hundred thirty to four hundred sixty volts. This motor features a solid base and is efficient for pump applications. The construction includes class F insulation and ball bearings that are securely locked on the shaft end. The motor meets safety standards recognized by UL, is certified by CSA, and bears the CE mark.

• Designed for close-coupled pump applications.
• Compatible with variable frequency drive (VFD) systems.
• Equipped with class F insulation and securely locked ball bearings.

Product Highlights

This motor is suitable for various pump mechanisms and industrial uses where reliable performance is essential.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT0422

Technical Specifications

• Horsepower: 15 HP
• RPM: 1775
• Input Voltage: 230/460 V
• Frame Size: 254JM
• Full Load Amps: 37.0/18.5
• Ambient Temperature: 40 °C
• Enclosure: Drip Proof
• Electrical Type: Three Phase
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15 (sinewave), 1.0 (IGBT power)
