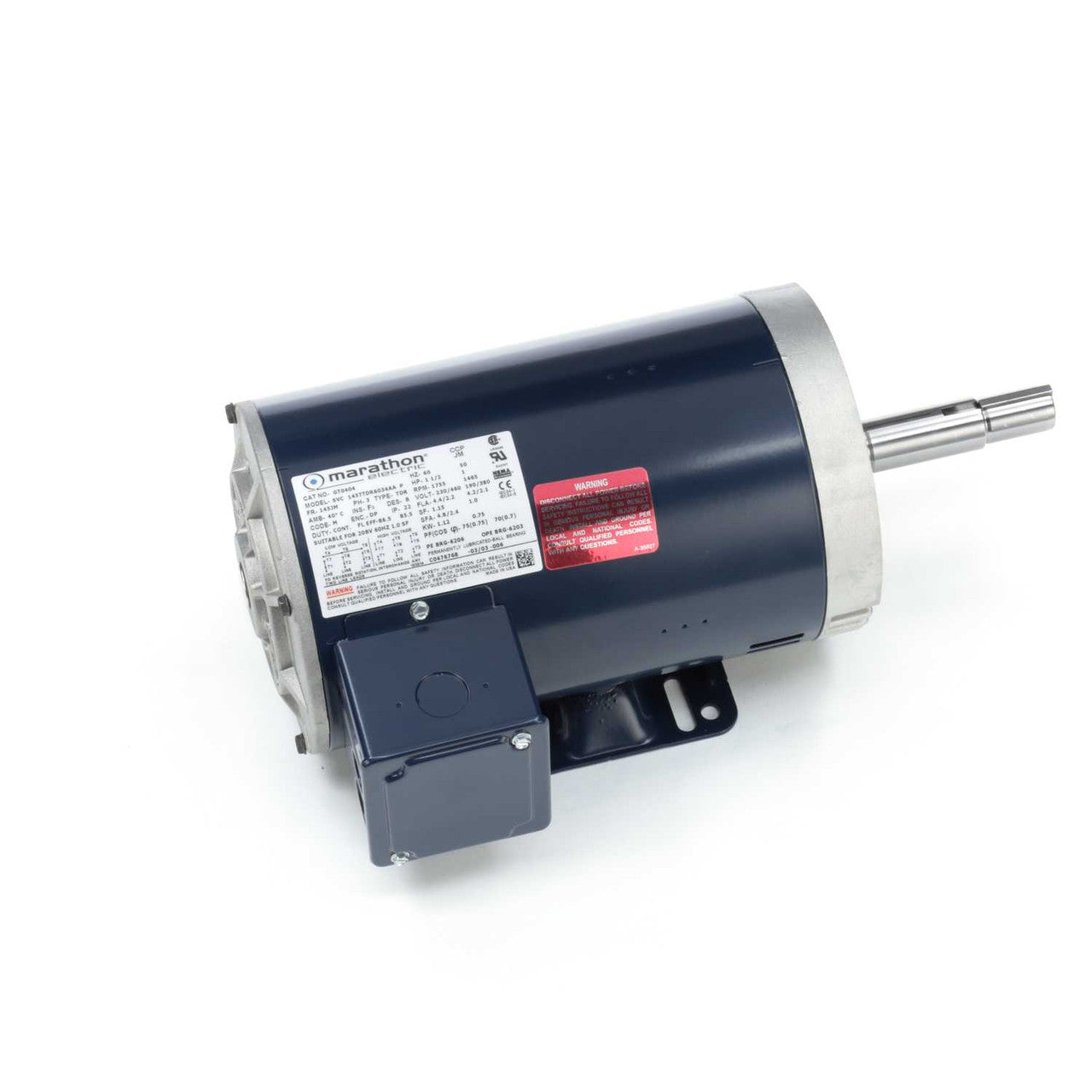

MARATHON MOTORS MGT0405 Close-Coupled Pump Motor 1 1/2 HP

Product Description

The MARATHON MOTORS MGT0405 is a three-phase close-coupled pump motor rated at 1 1/2 HP and operates at 1200 RPM. This motor is designed with a 182JM frame and has a drip-proof enclosure for enhanced durability. It is compatible with Variable Frequency Drives (VFDs), supporting 10:1 variable torque and 2:1 constant torque applications. The motor can handle dual ratings for 60/50 hertz and offers voltage options of 190/380 volts at the next lower HP.

• NEMA JM pump shaft dimensions
• Mechanically locked ball bearings on the shaft end
• Standard assembly F1, reversible to F2

Product Highlights

This motor is suitable for various industrial applications where reliable power and performance are essential.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT0405

Technical Specifications

• Horsepower: 1 1/2
• RPM: 1200
• Input Voltage: 230/460
• Frame Size: 182JM
• Full Load Amps: 4.4/2.2
• Ambient Temperature: 40 °C
• Enclosure: Drip Proof
• Weight: 81 lbs
• Service Factor: 1.15 on sinewave, 1.0 on IGBT power
• Insulation Class: Class F
• Certifications: UL recognized, CSA certified, CE mark
