MARATHON MOTORS MGT0212 General Purpose Motor 5 hp REPLACEMENT Leeson B199736.00

Product Description

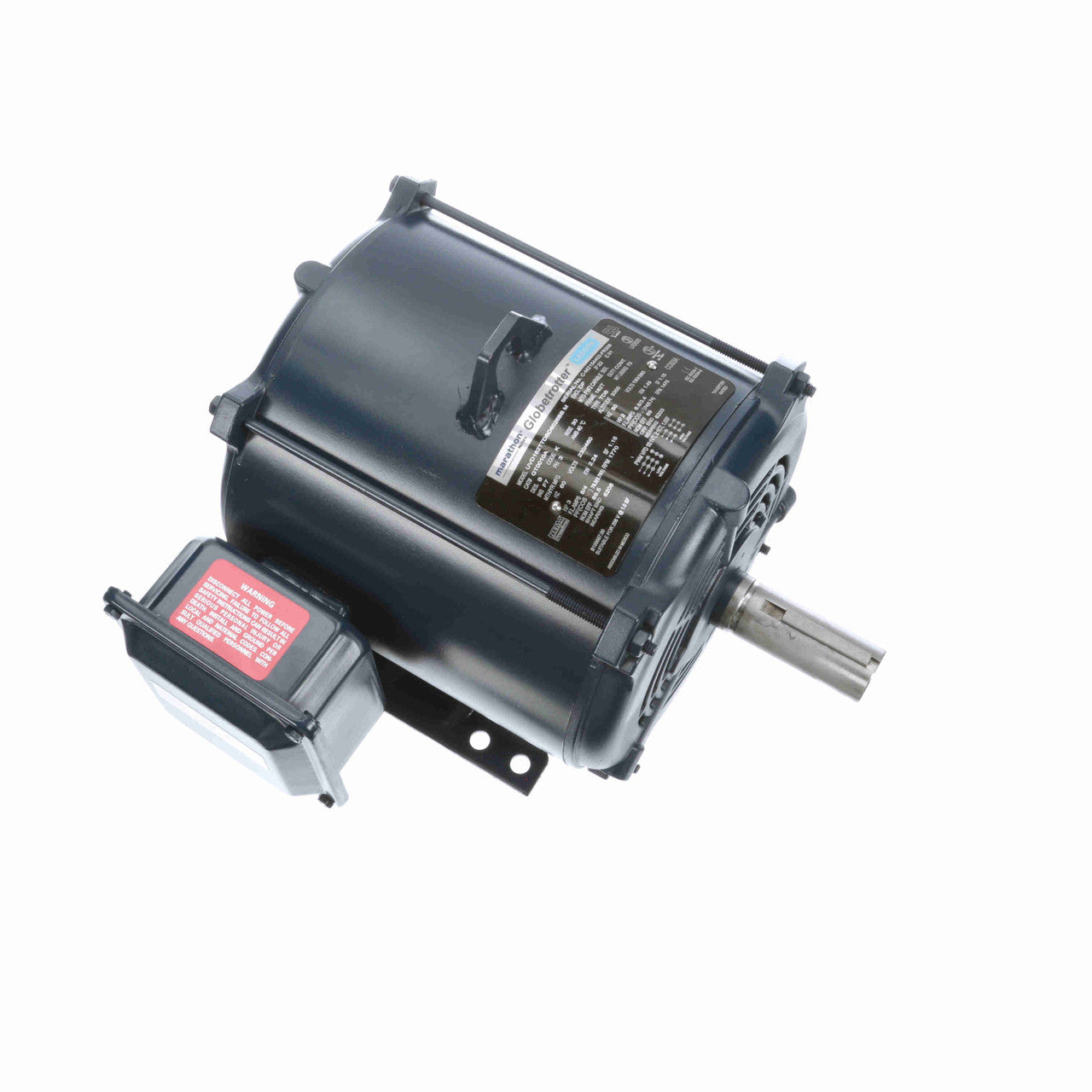

The Marathon Motors MGT0212 General Purpose Motor is a 5 horsepower electric motor designed for versatility and reliability. It operates at three thousand six hundred revolutions per minute, making it suitable for a variety of tasks. This motor features a C-face mount and a durable rolled steel construction.

• Five horsepower electric motor
• Operates at three thousand six hundred revolutions per minute
• Rolled steel construction for durability

Product Highlights

The MGT0212 includes a shaft keyway and four threaded bolt holes for easy face mounting, making it advisable for setups like pumps and gear heads.

Product Information

Standard Information

• Brand: Marathon Motors
• Motor Type: General Purpose

Technical Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage Rating: 230/460 volts
• Frequency: 60 Hz
• Frame Size: NEMA 182TC
• Shaft Diameter: 1 1/8 inches
• Shaft Length: 2 3/4 inches
• Service Factor: 1.15
• Overload Protection: None
• Rotation: Reversible
• Mounting Type: Rigid base mount
• Bearings: Ball bearings
• Insulation Class: Class F
• Enclosure Type: Open drip proof (ODP)
• Warranty: 1 year manufacturer warranty
