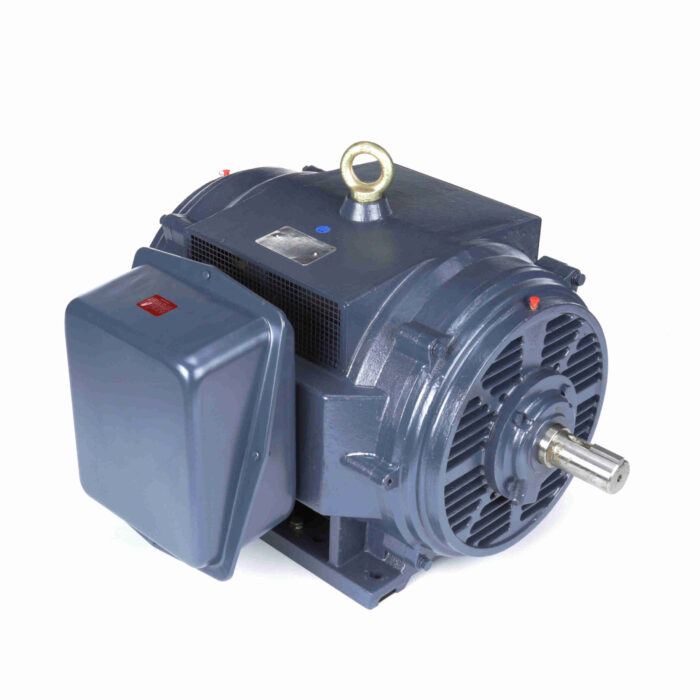

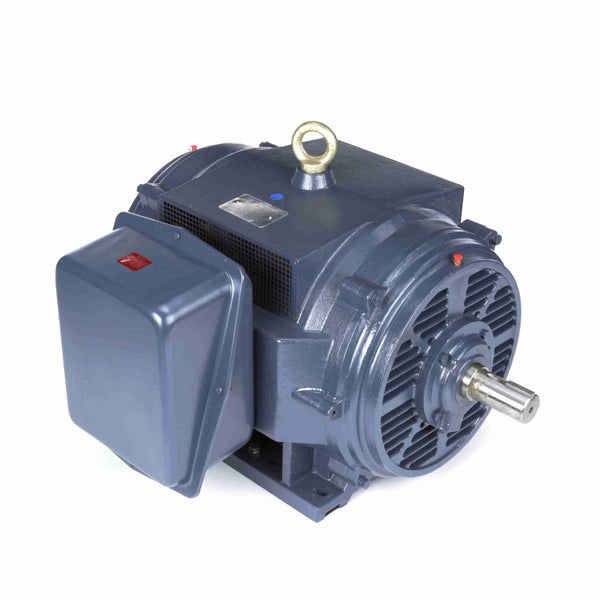

MARATHON MOTORS MGT0051 General Purpose Motor 150 HP 460V

Product Description

The MARATHON MOTORS MGT0051 is a general-purpose phase electric motor designed for a variety of applications. With a robust cast iron design, this motor is built for reliability and durability. The rigid base mount ensures stability during operation, while ball bearings provide efficient performance. It is an Open Drip Proof (ODP) motor with Class F insulation.

• Cast iron construction for long-lasting use.
• Reversible rotation for flexibility in operation.
• Open Drip Proof (ODP) enclosure to protect from debris.

Product Highlights

This motor serves various industrial applications, making it ideal for tasks that require consistent power efficiency.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT0051

Technical Specifications

• Horsepower: 150 HP
• Voltage: 460V
• Amperage: 165.0 Amps
• RPM: 3575
• Frequency: 60Hz
• Frame Size: 405TS
• Enclosure: Open Drip Proof (ODP)
• Mounting Type: Rigid Base Mount
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15
• Overload Protection: None
• Shaft Diameter: 2 1/8 inches x 4 1/4 inches (Keyed)
• Insulation Class: Class F
• Material: Cast Iron
• Weight: 1149 lbs
• Electrical Type: Phase
