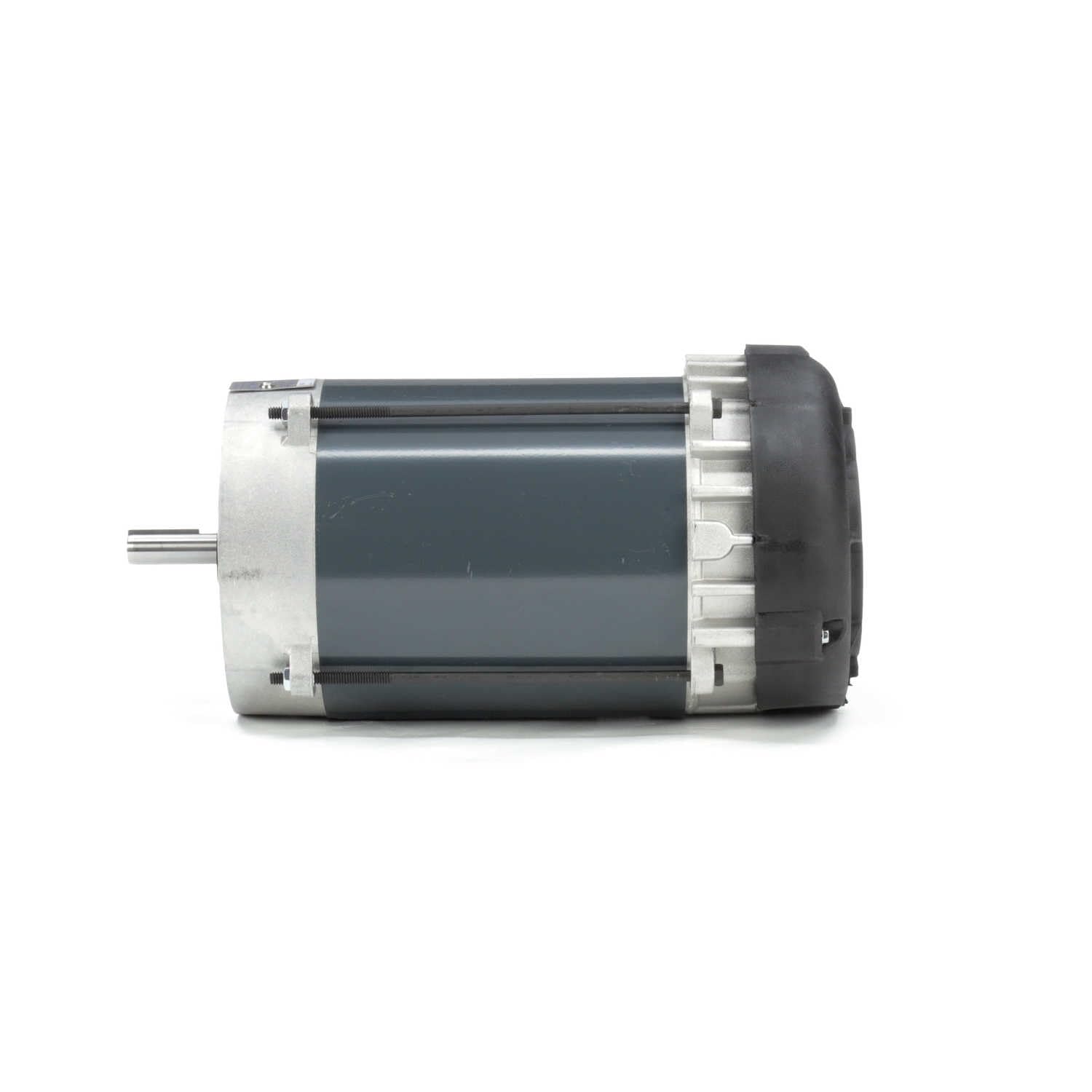

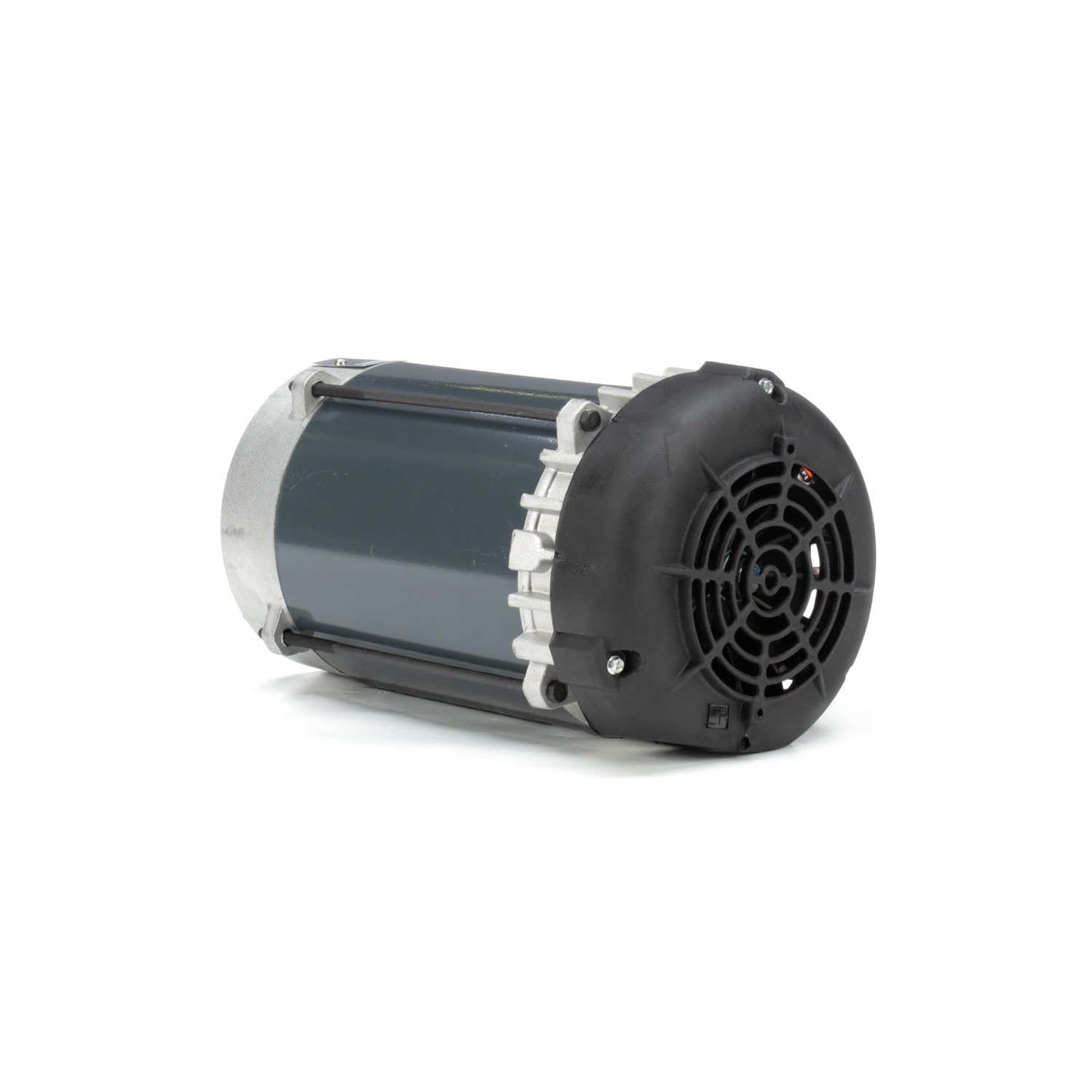

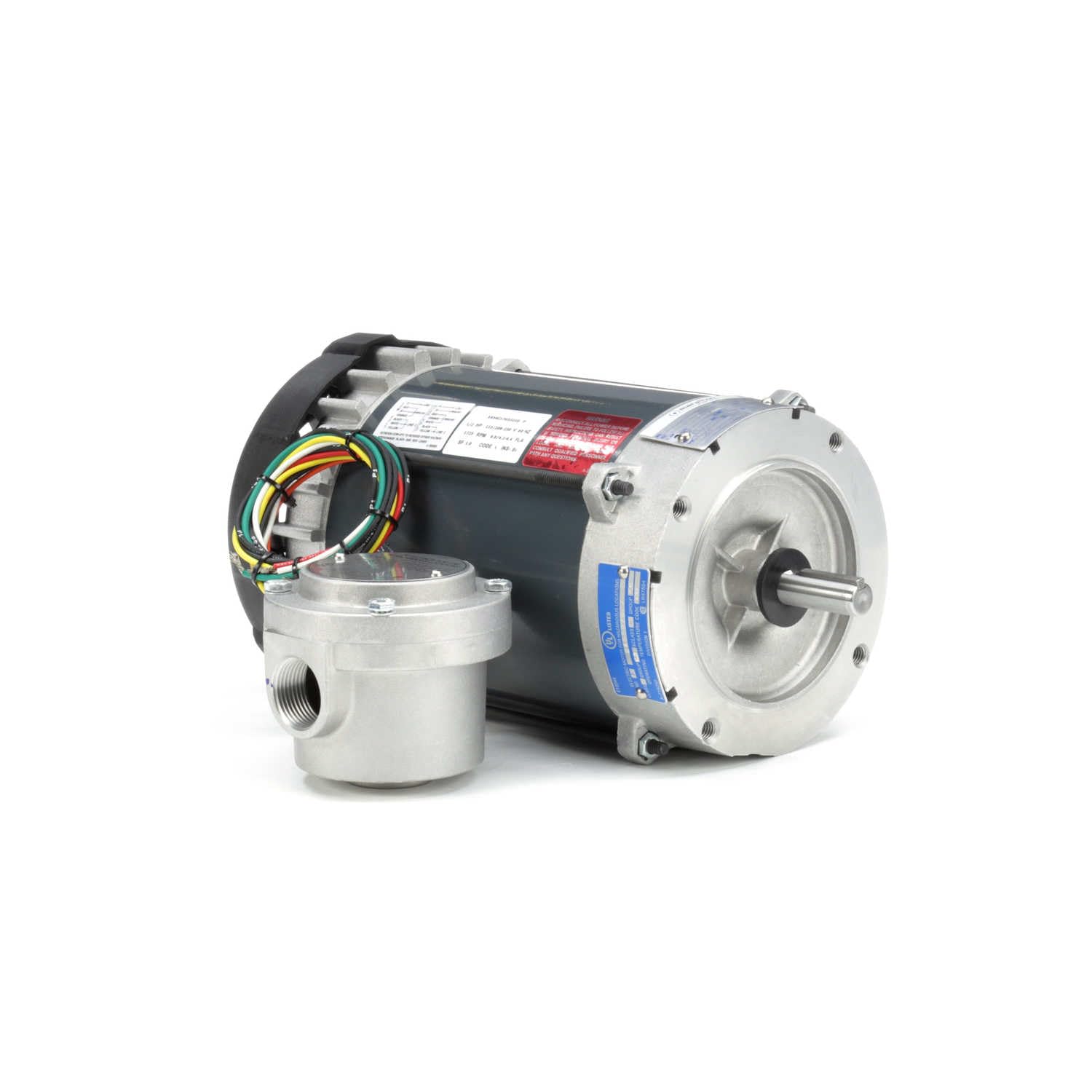

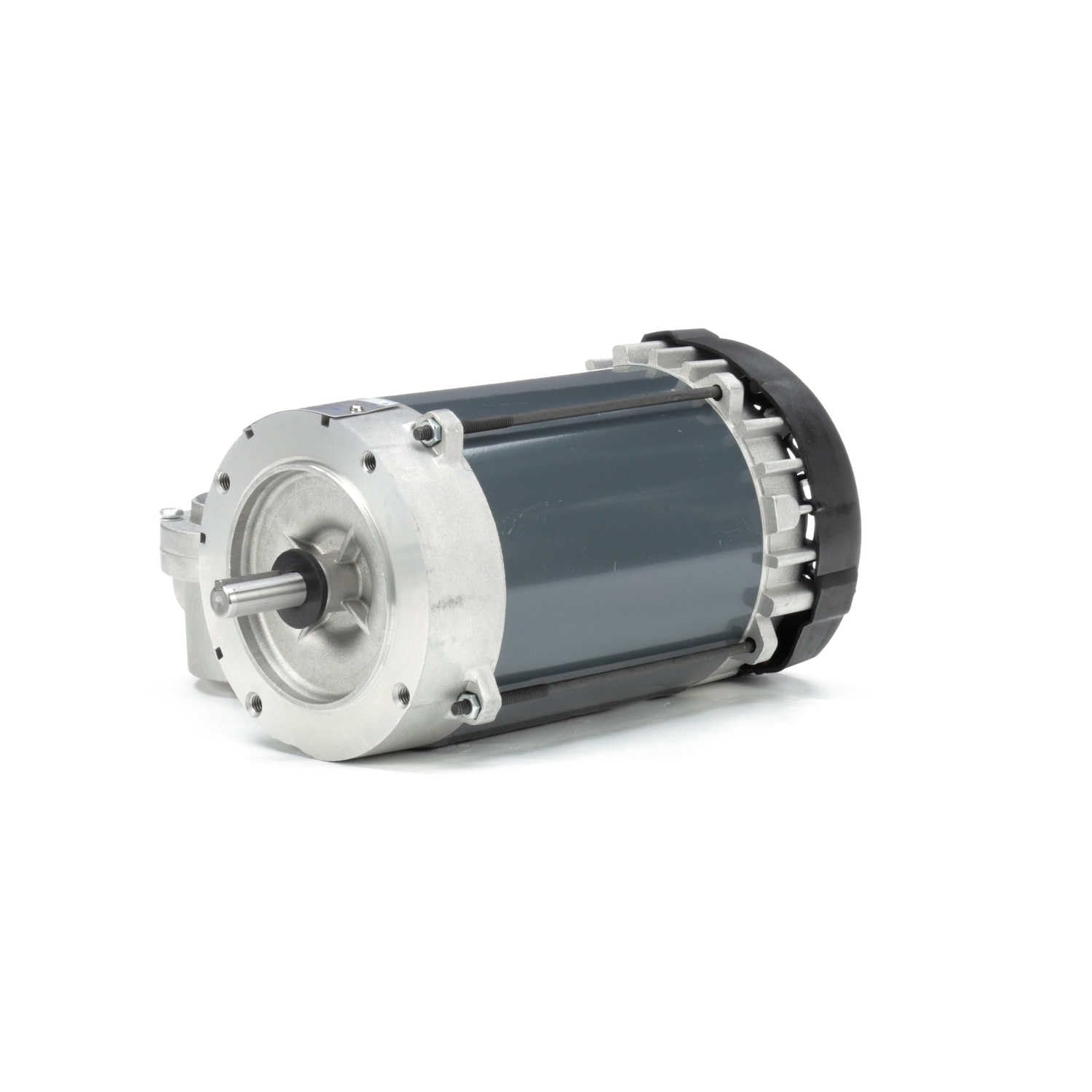

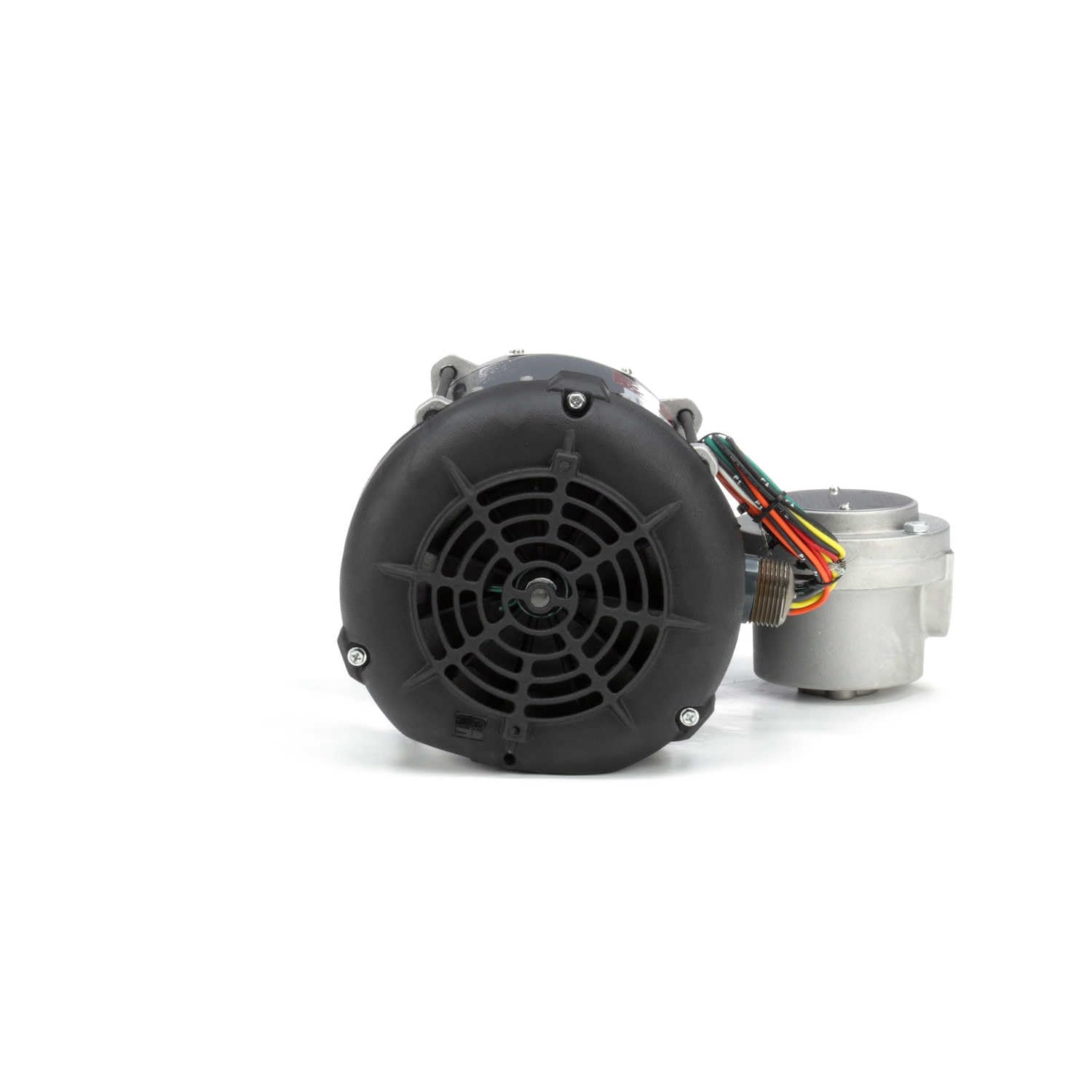

Marathon Electric MG855 Marathon G855 Explosion Proof Motor 1/2 HP 115/208-230 VAC

Product Description

The Marathon Electric MG855 is a reliable explosion-proof motor. This motor is designed for hazardous duty environments. It operates at one half horsepower and a speed of one thousand eight hundred rpm. It supports a voltage range of one hundred fifteen to two hundred thirty VAC and is suitable for single-phase applications. The motor features a ball bearing design and a C-face for easy mounting.

• Hazardous duty rated for Class I and II, Groups C, D, F, and G environments.
• Constructed with durable rolled steel materials.
• Includes a capacitor start for efficient performance.

Product Highlights

The MG855 motor is ideal for industrial applications that require a robust and durable motor for explosive environments.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MG855

Technical Specifications

• Power: 1/2 HP
• Speed: 1800 RPM
• Voltage: 115/208-230 VAC
• Phase: Single
• Frame Size: 56
• Dimensions: 15 x 11 x 9 inches
• Weight: 28 Pounds
• Material: Rolled Steel
• Mounting: C-Face, Footless
• Amperage: 8.8/4.2-4.4
