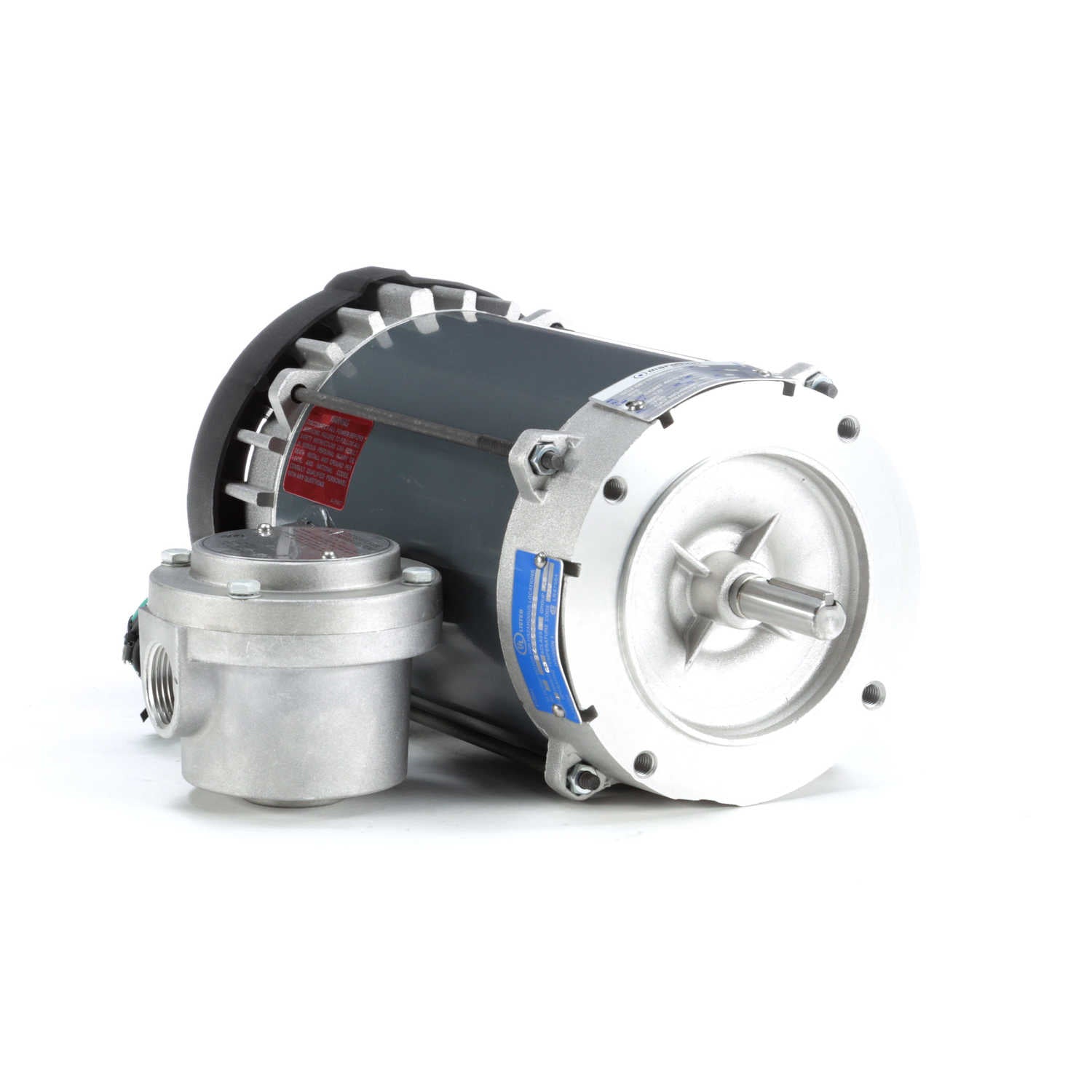

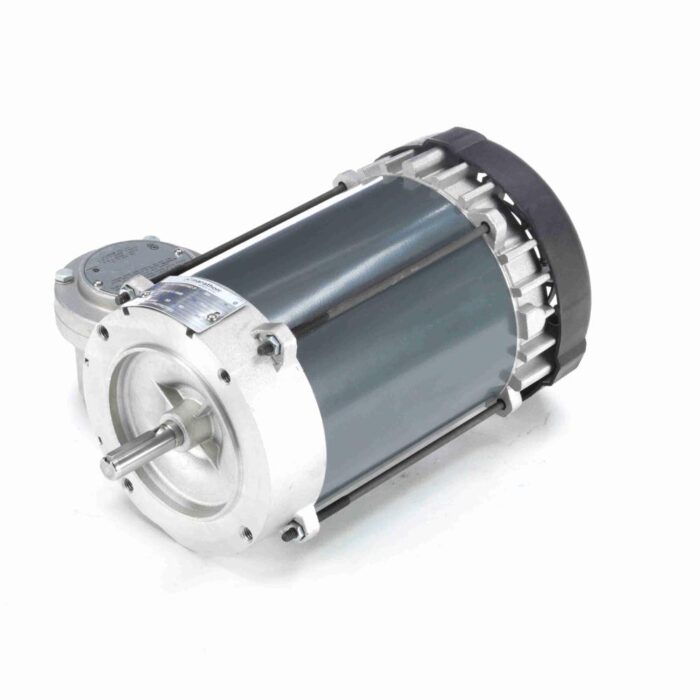

MARATHON MOTORS MG845 Electric Motor 3/4 hp EPFC

Product Description

The MARATHON MOTORS MG845 is an electric motor optimized for hazardous environments. This unit features a totally enclosed fan-cooled (TEFC) design that safeguards internal components. Constructed from rolled steel, it is equipped with an automatic overload protector for reliable operation.

• Explosion-proof enclosure (EPFC)
• Reversible rotation
• Class B insulation

Product Highlights

The motor's robust design is ideal for various industrial applications, ensuring performance and durability.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MG845

Technical Specifications

• Phase: 3
• Voltage: 575V
• Overload Protector: Automatic
• Frame: 56C
• Enclosure: EPFC
• Material: Rolled Steel
• Horsepower: 3/4 hp
• Rotation: Reversible
• RPM: 1725
• Number of Speeds: 1
• Service Factor: 1.0
• Amperage: 1.2A
• Frequency: 60 Hz
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Mounting Type: Face-mounted
• Insulation Class: Class B
• Weight: 29 lbs
