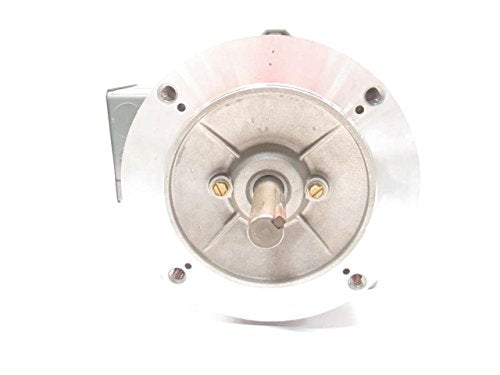

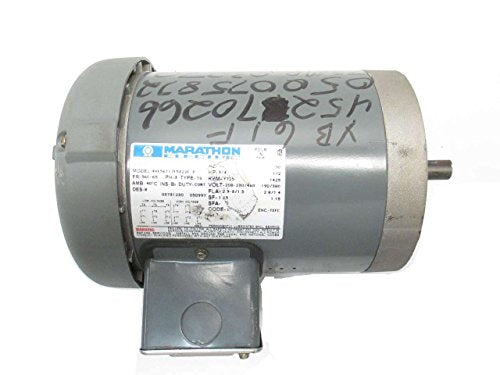

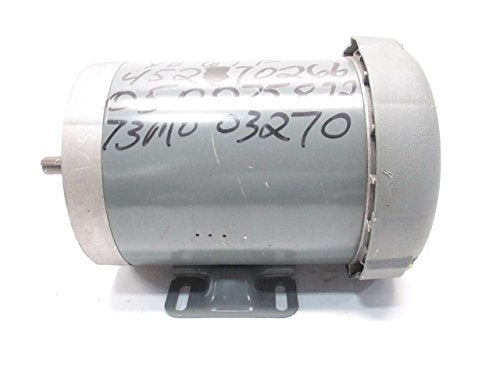

Marathon MG582 3/4 HP 3 Phase Inverter Duty Motor 10:1 Constant Torque 1800 RPM 208-230/460V

Product Description

The Marathon MG582 is a general purpose motor designed for three phase inverter duty applications. It offers a 10:1 constant torque, ensuring reliable performance. This motor has a power of 3/4 horsepower and operates at 1800 RPM, suitable for various industrial uses.

• 3/4 HP
• 1800 RPM
• General Purpose 3 Phase

Product Highlights

This Marathon MG582 motor is ideal for three phase inverter duty applications, ensuring consistent performance with its 10:1 constant torque. It's built from rolled steel and comes in a totally enclosed fan cooled design, making it suitable for various demanding environments.

Product Information

Standard Information

• Model: MG582
• Brand: Marathon Electric
• Category: Permanent Magnet Motors
• Manufacturer: Marathon Electric
• Item Weight: 22 lbs
• Package Weight: 24 lbs
• Dimensions: 23.512 cm

Technical Specifications

• Horsepower: 0.75 HP (3/4 HP)
• RPM: 1800 RPM
• Voltage: 208-230/460V
• Amps: 2.6-3.0/1.5
• Frame: 56C
• Material: Rolled Steel

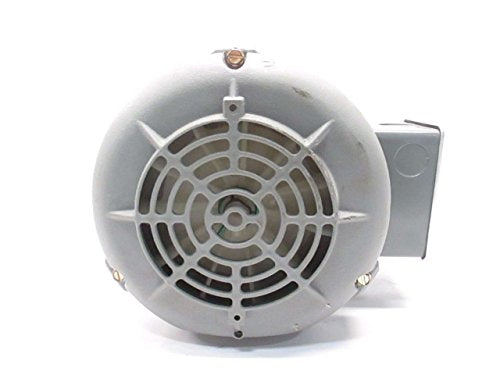

• Cooling: Totally Enclosed Fan Cooled
• Mounting Options: Bolt-on removable base for footless mounting, F1 Mounting only
