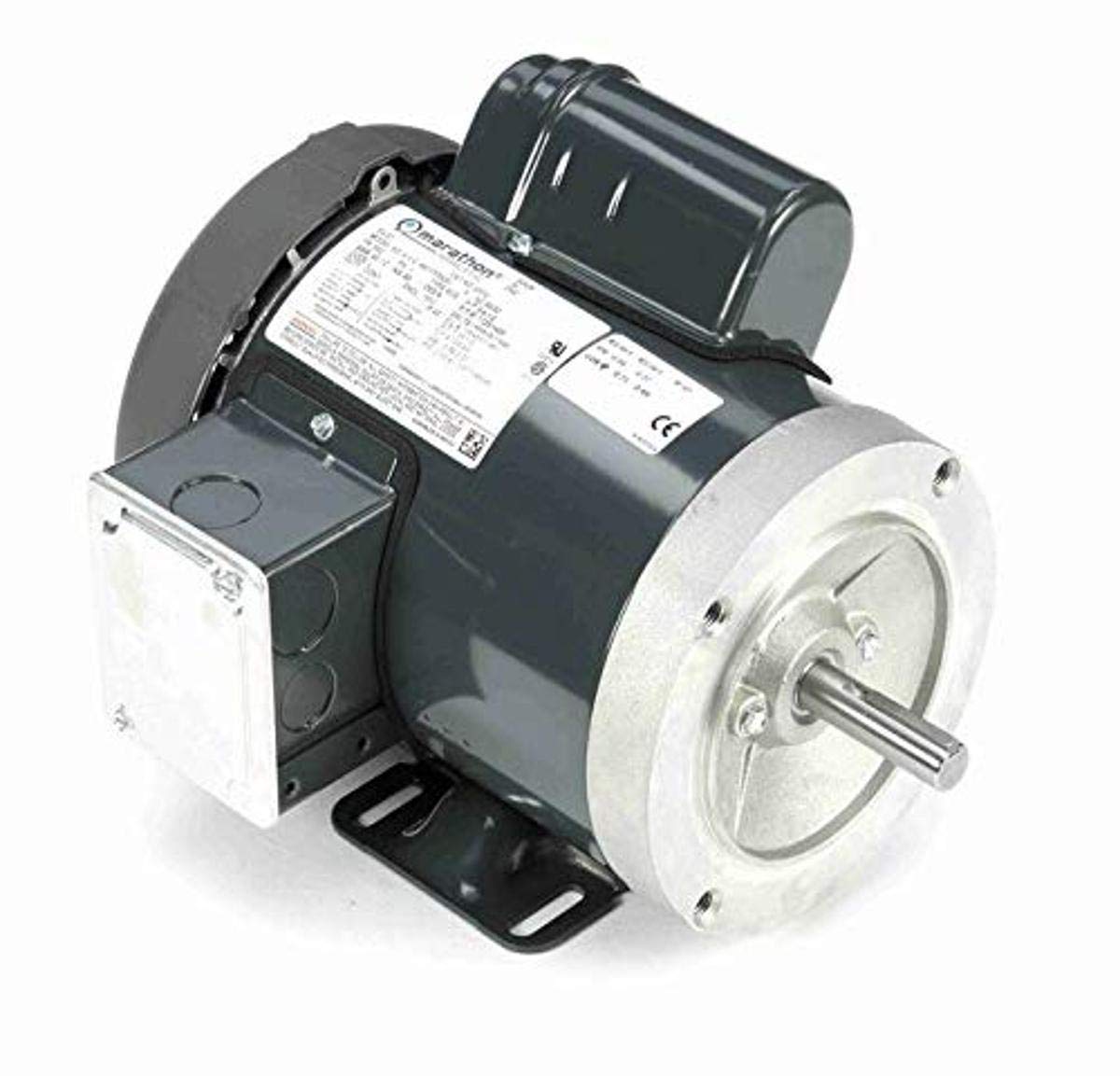

Marathon Electric MG572 Marathon G572 General Purpose Motor 3/4 hp 115/208-230 VAC

Product Description

The Marathon Electric MG572 is a general purpose motor designed for various applications. This motor has a power rating of three-quarters horsepower and operates at a speed of one thousand eight hundred RPM. It features a C-face design with ball bearings, making it suitable for both industrial and residential use. The motor operates on a voltage of one hundred fifteen to two hundred thirty volts and is designed for single-phase operation.

• Three-quarters horsepower rating
• Operates at one thousand eight hundred RPM
• Voltage range of one hundred fifteen to two hundred thirty volts

Product Highlights

The Marathon Electric MG572 motor is built for durability and efficiency, ensuring reliable performance across various tasks.

Product Information

Standard Information

• Motor Type: General Purpose
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)

Technical Specifications

• Frame Size: 56
• Amperage: 11.0/5.4-5.5
• Mounting Type: Bolt-on Base
• Shaft Type: Single
• Material: Rolled Steel
• Speed: 1800 RPM
• Voltage: 115/208-230
• Phase: Single
