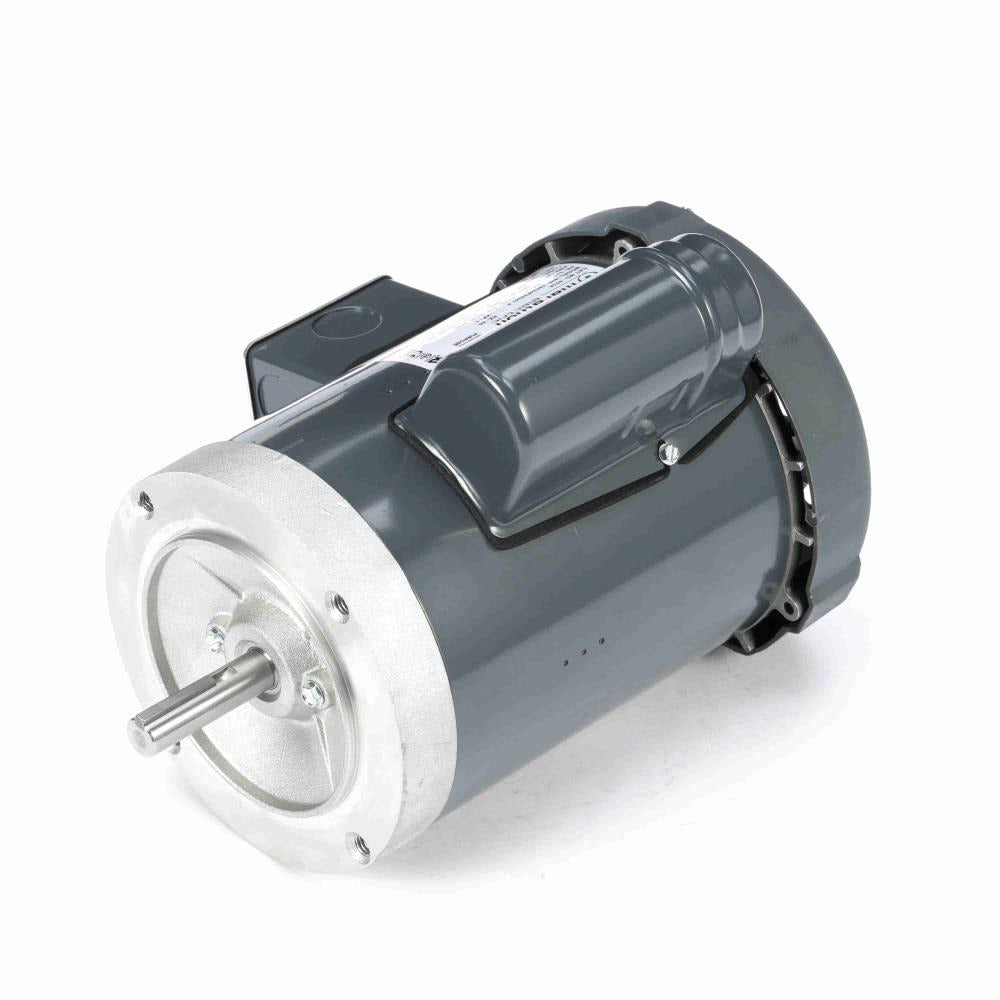

Marathon Electric MG518 General Purpose Motor 1 hp 3600 RPM 115/208-230 VAC

Product Description

The Marathon Electric MG518 is a general purpose motor designed for a variety of applications. This motor operates at one horsepower and reaches a speed of three thousand six hundred RPM. It is suitable for both 115 and 208-230 voltage settings, making it versatile for different electrical systems. With a single-phase and single-speed setup, this motor is easy to install and operate.

• Efficiency: Consumes less energy while maintaining high performance.
• Durable: Constructed from rolled steel for enhanced longevity.
• Common Applications: Ideal for HVAC systems, water pumps, and other machinery needing reliable motor performance.

Product Highlights

The Marathon Electric MG518 is designed with a C-face mounting style and features a capacitor start system for smooth operation. The unit measures six inches in diameter and is built to withstand demanding applications.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Type: General Purpose Motor

Technical Specifications

• MPN: MG518
• Power Rating: 1 hp
• Speed: 3600 RPM
• Voltage: 115/208-230 VAC
• Phase: Single
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Frame Size: 56
• Material: Rolled Steel
• Amperage: 12.4/6.7-6.2
• Rotation: REV
• Mounting Type: C-Face, Footless
