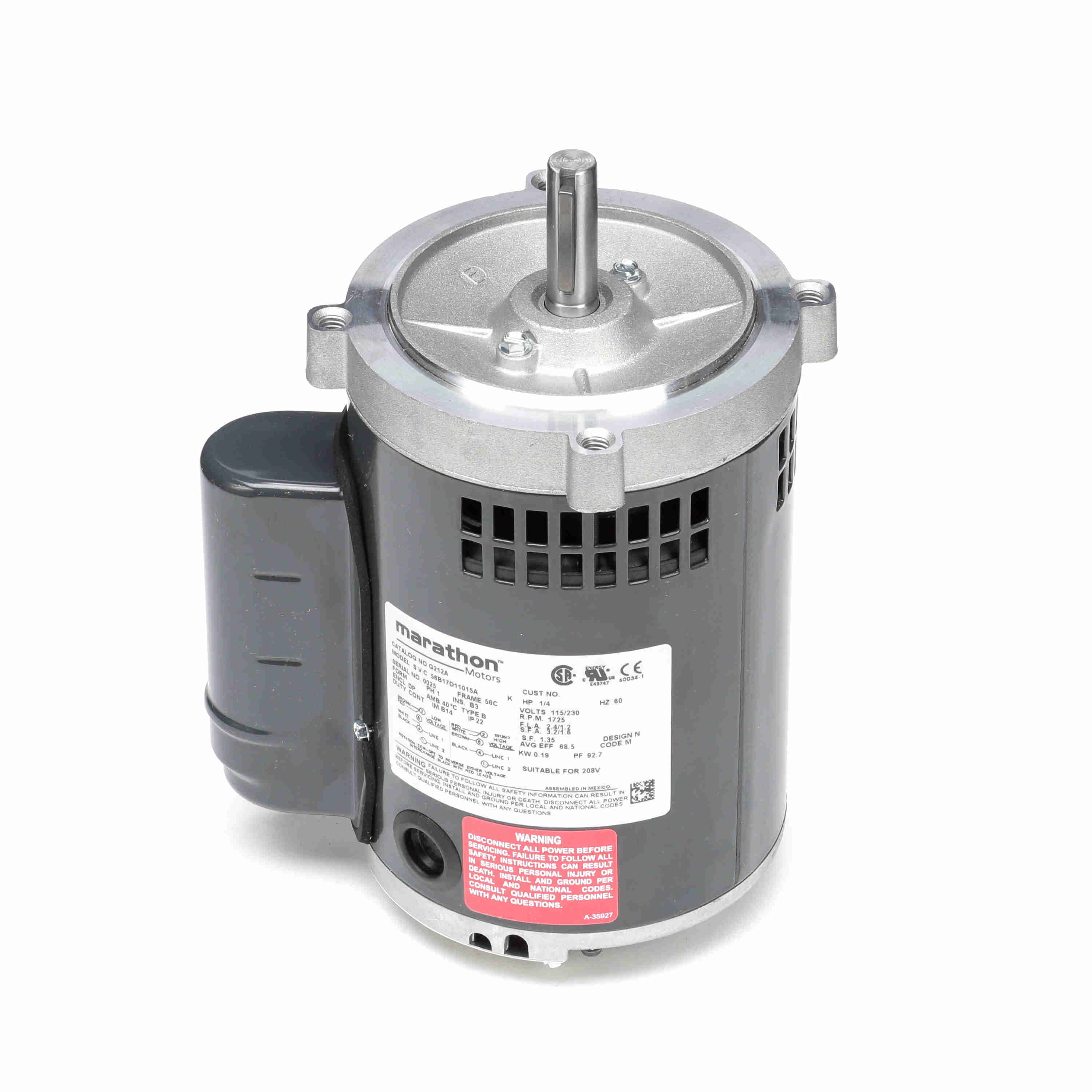

Marathon MG212A General Purpose Motor 1/4 HP 1725 RPM 115/230V

Product Description

The Marathon MG212A General Purpose Motor is a versatile motor suitable for various applications. It features a cap start electrical type, delivering 1/4 HP at 1725 RPM. This motor is constructed with rolled steel, ensuring durability and reliability.

• 1/4 HP power output
• 115/230V voltage
• 1725 RPM speed

Product Highlights

This motor is designed for general-purpose use, offering a cap start mechanism and operating at 115/230 volts. It has a speed of 1725 RPM and is built with a rolled steel frame for enhanced durability.

Product Information

Standard Information

• Electrical Type: Cap Start
• Horsepower: 1/4 HP
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Amperage: 2.4/1.2
• Shaft Type: Single

Technical Specifications

• Electrical Type: Cap Start
• HP: 1/4
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protection: No
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Amperage: 2.4/1.2
• Shaft Type: Single
