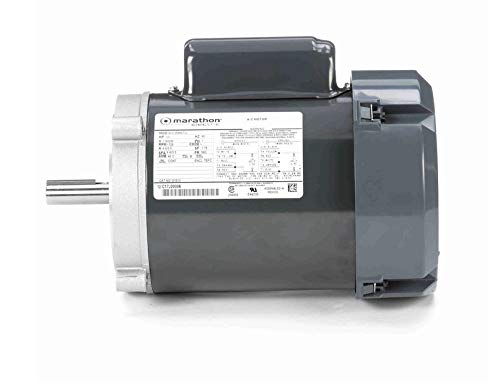

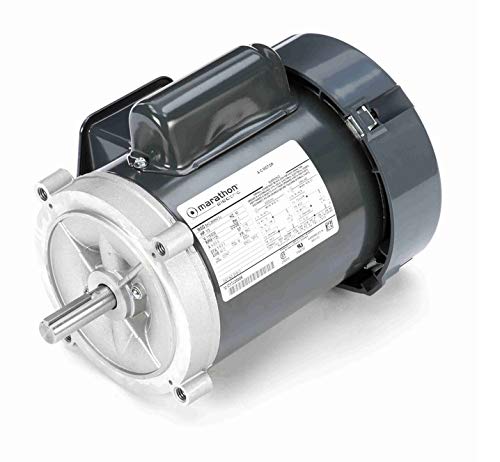

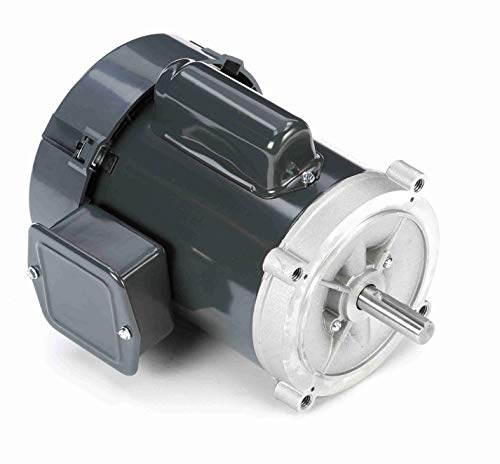

Marathon MG1513 56C Frame Totally Enclosed Fan Cooled 5KC35MN73 General Purpose Motor 1/3 hp 1800 RPM 115/230 VAC 1 Phase 1 Speed Ball Bearing C-Face Capacitor Start

Product Description

This Marathon MG1513 56C Frame Totally Enclosed Fan Cooled 5KC35MN73 General Purpose Motor is designed for various applications requiring a robust and reliable motor. Operating at 1/3 horsepower, the motor features a maximum speed of 1800 RPM and can run at 115 or 230 volts. It is a single-phase motor with one-speed functionality, making it highly versatile for trade professionals.

• General purpose motor is single phase with one-speed operation
• Runs at 1/3 hp, with a maximum speed of 1800 rpm
• 56C frame with totally enclosed fan cooled (TEFC) enclosure, C-face mounting, and ball bearing system

Product Highlights

This motor is suitable for multiple uses. It has a C-face mounting with ball bearings and operates with a capacitor start for reliable performance. The 56C frame ensures a durable and compact design, while the TEFC enclosure provides protection against external factors.

Product Information

Standard Information

• Brand: Marathon
• MPN: MG1513
• Horsepower: 1/3 hp
• Voltage: 115/230 VAC
• Speed: 1800 RPM
• Frame: 56C
• Enclosure: TEFC
• Phase: Single
• Mounting: C-Face
• Weight: 19 pounds

Technical Specifications

• Amperage: 6.0/3.0 Amp
• Frame: 56C
• Enclosure: TEFC
• Rotation: REV
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Diameter: 6.5 inches
• Speed: 1
