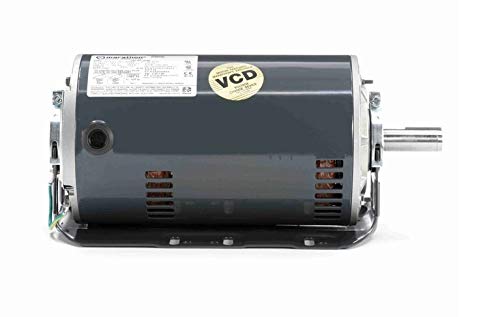

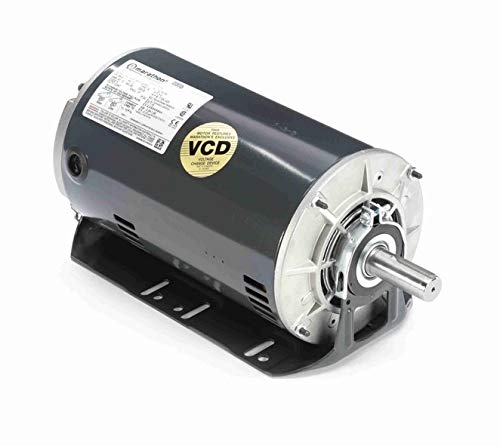

Marathon MG145 56T17D5350 Belt Drive Motor 3 hp 1800 RPM 208-230/460 VAC 3 Phase 1 Speed Ball Bearing Resilient Ring Mount

Product Description

The Marathon Electric MG145 motor is designed for reliability in demanding industrial applications. It features a 56HZ frame and an open drip-proof design, ideal for various environments.

• Three phase motor with one-speed operation
• Runs at 3 hp with a maximum speed of 1800 RPM
• Equipped with ball bearing system and resilient ring mounting

Product Highlights

This motor is perfect for applications requiring consistent performance. It operates at 208-230/460 VAC and includes auto protection for added safety.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MG145

Technical Specifications

• Voltage: 208-230/460 VAC
• Horsepower: 3 hp
• Speed: 1800 RPM
• Frame: 56HZ
• Enclosure: Open Drip Proof
• Amperage: 9.2-8.6/4.3 Amp
• Mounting: Resilient Ring
• Bearing Type: Ball Bearing
