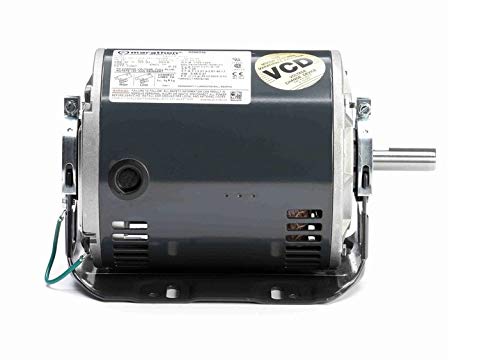

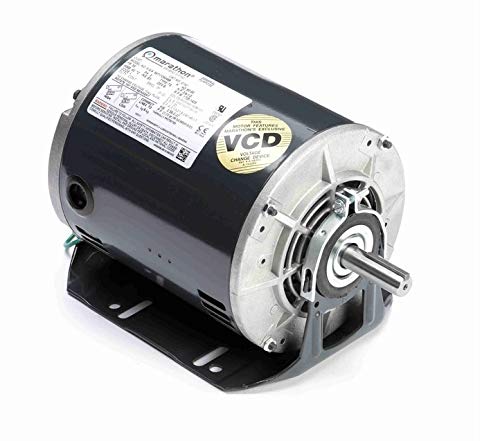

Marathon Electric MG141 G141 56 Frame Open Drip Proof Motor 3/4 hp 1800 rpm

Product Description

The Marathon Electric MG141 is a belt drive motor designed for efficiency and reliability. This three-phase motor operates at three-quarters horsepower with a maximum speed of one thousand eight hundred rpm. It is built for versatility and can run on 208-230/460 volts AC. The motor features an open drip-proof design, making it suitable for various industrial applications.

• Three-phase operation with single-speed design
• Powerful 3/4 hp and 1800 rpm maximum speed
• Robust design with resilient ring mount and ball bearing system

Product Highlights

This motor is ideal for HVAC applications, fan, and blower applications, providing reliable performance for industrial settings.

Product Information

Standard Information

• Brand: Marathon Electric
• Product Type: Electric Motor

Technical Specifications

• MPN: MG141
• Power: 3/4 hp
• Voltage: 208-230/460 VAC
• Current: 2.9-3.0/1.5 Amps
• Speed: 1800 rpm
• Frame Size: 56
• Weight: 23 lbs
• Design: Open drip proof
