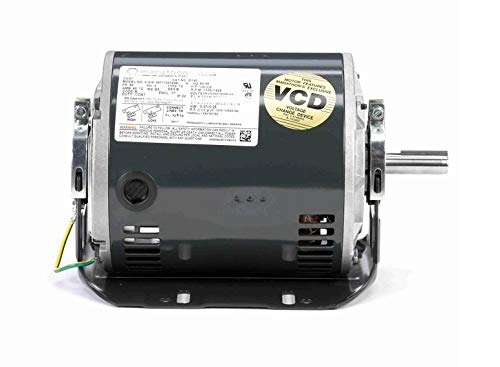

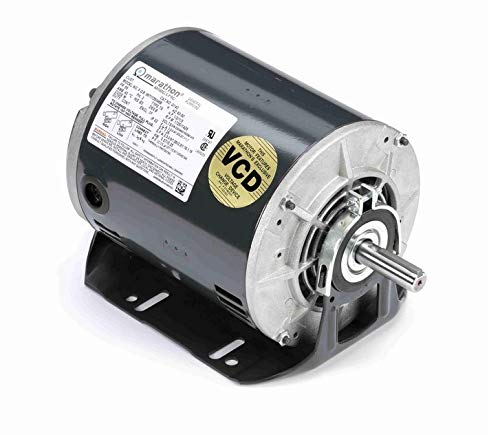

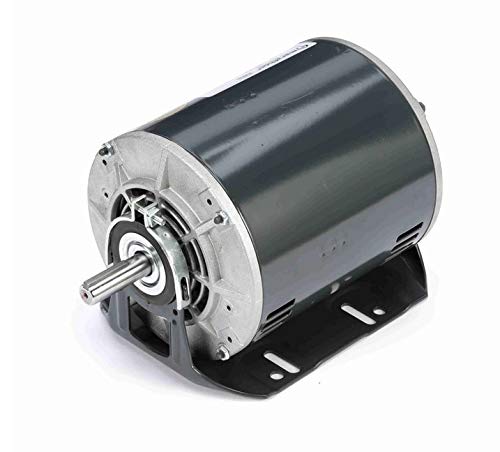

Marathon Electric MG140 Marathon G140 56 Frame Open Drip Proof 56T17D5345 Belt Drive Motor 1/2 hp 208-230/460 VAC

Product Description

The Marathon Electric MG140 is a belt drive motor that provides reliable performance for a variety of applications. This three-phase motor operates at one speed with a power rating of one-half horsepower and can achieve a maximum speed of one thousand eight hundred RPM. It is designed to work with voltages of two hundred eight to two hundred thirty or four hundred sixty VAC. The motor features a 56 frame size, open drip-proof enclosure, resilient ring mounting, and a ball bearing system.

• Belt drive motor operates at 1/2 hp and 1800 RPM
• Three-phase design for enhanced performance
• Open drip-proof enclosure and resilient ring mount for durability

Product Highlights

This motor is suitable for various industrial and commercial applications, including HVAC systems, fans, and blowers.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Model Number: MG140
• Horsepower: 0.5 hp
• Speed: 1800 RPM
• Voltage: 208-230/460 VAC

Technical Specifications

• Phase: Three
• Amperage: 2.3-2.4/1.2 Amp
• Frame Size: 56
• Weight: 22 Pounds
• Enclosure Type: Open Drip Proof (ODP)
• Mounting Type: Resilient Base
• Ball Bearing Type: Standard
