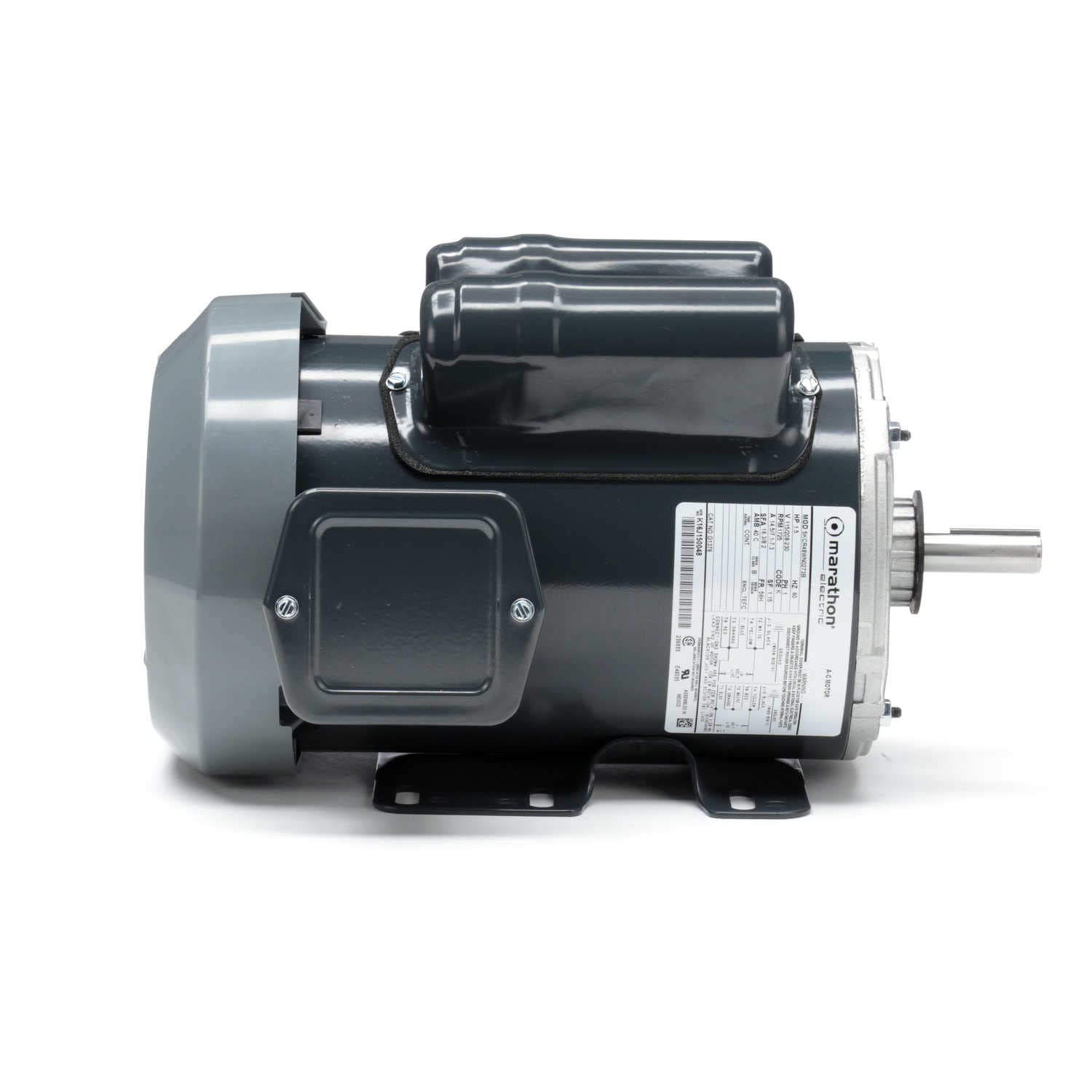

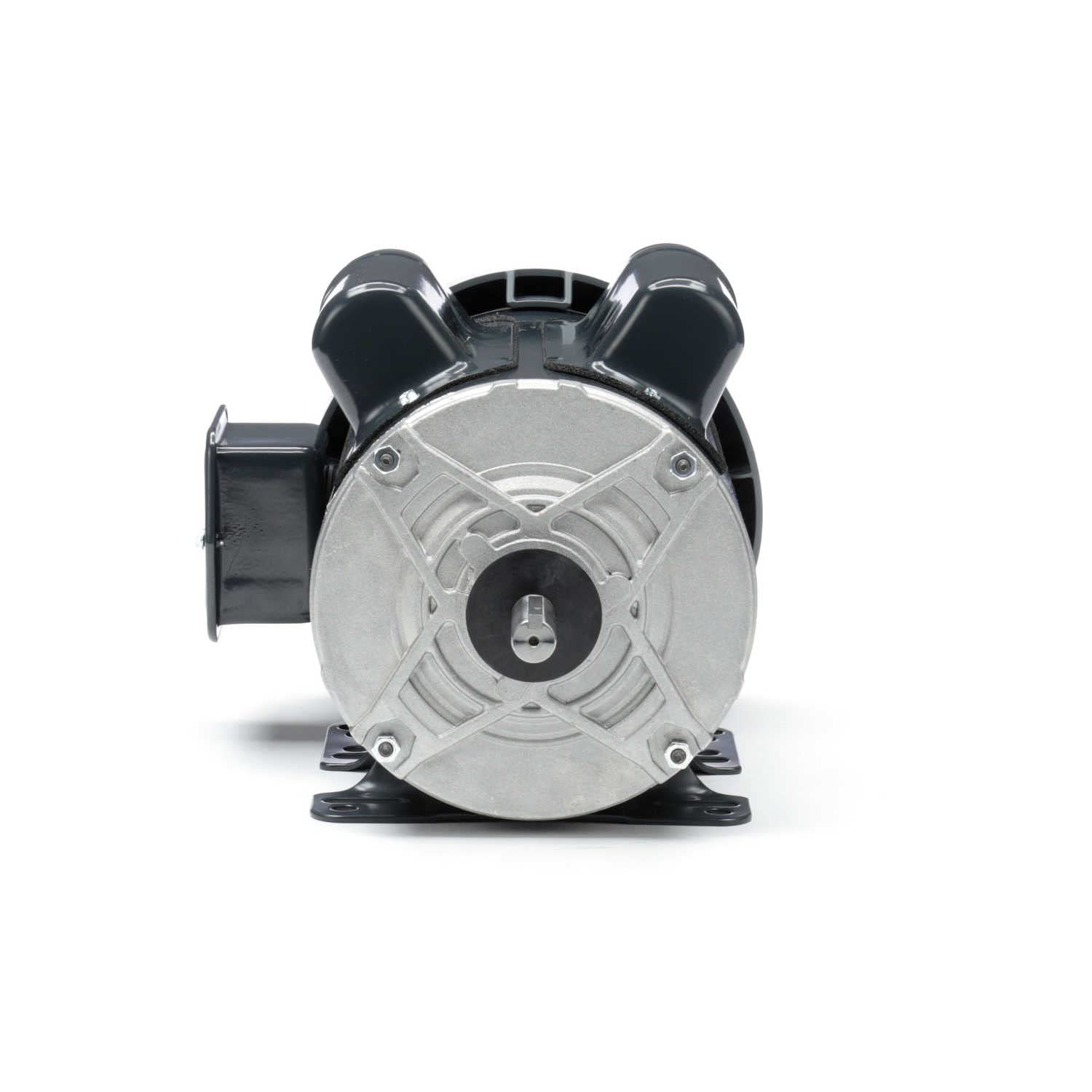

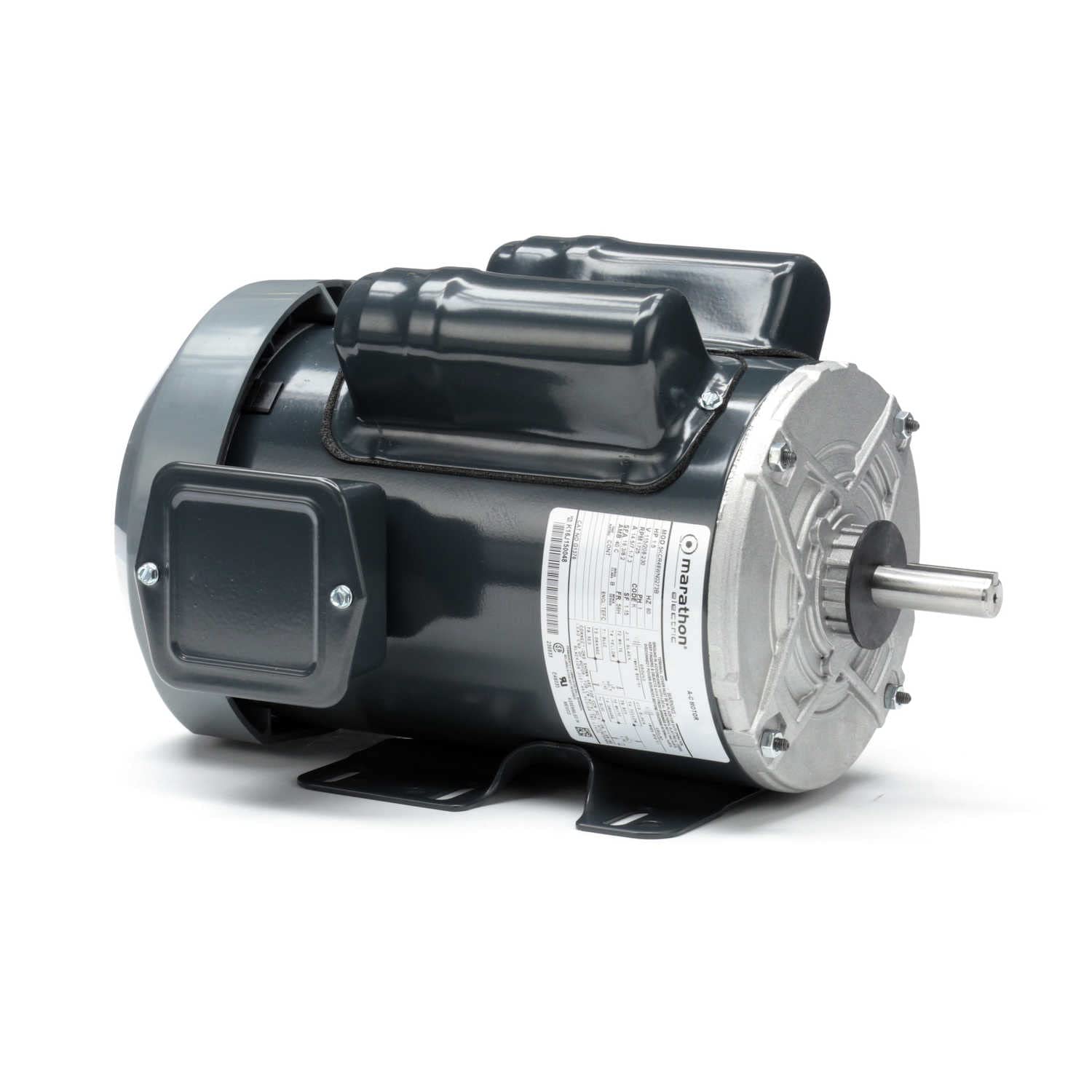

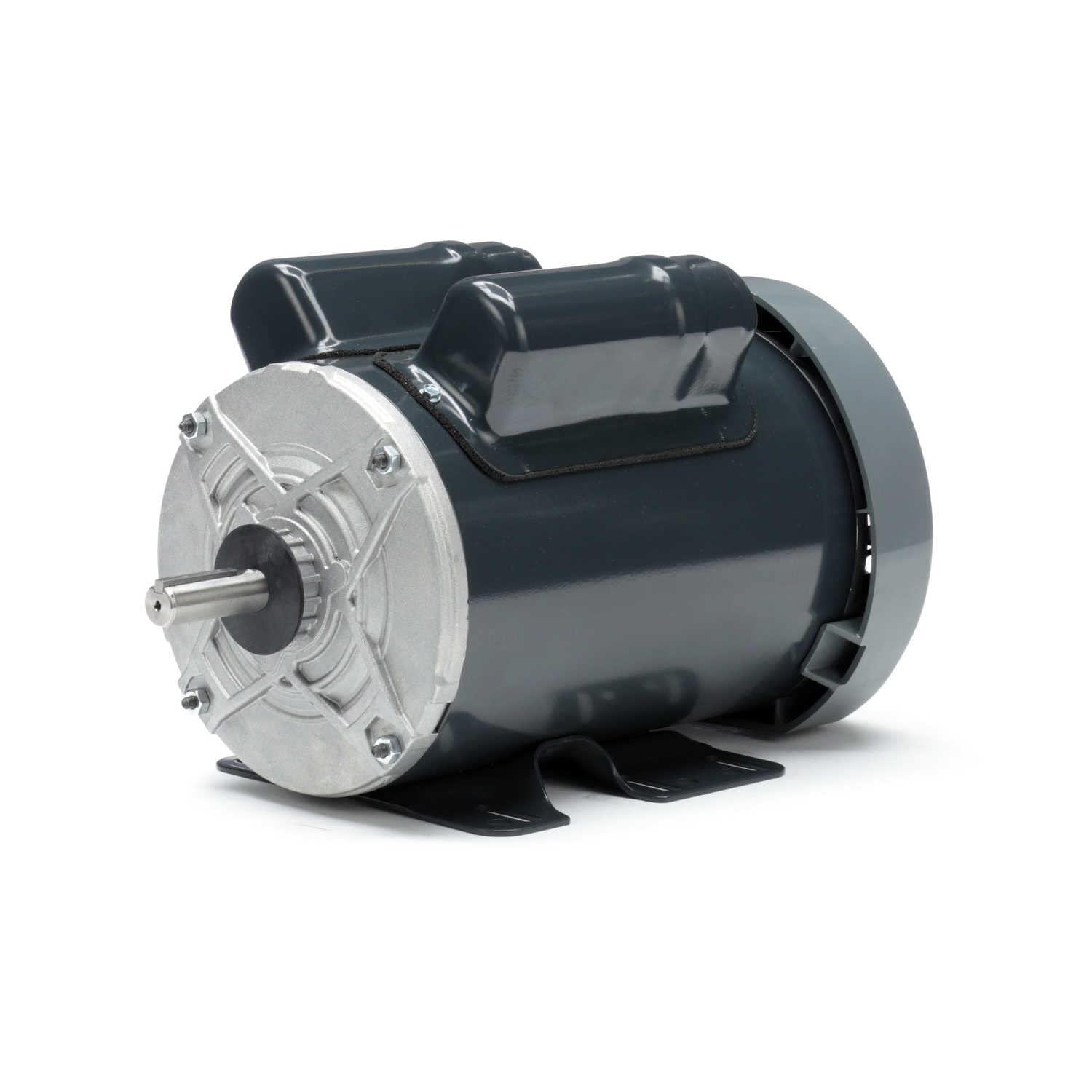

Marathon Electric MG1376 General Purpose Motor 1-1/2 hp 1800 RPM 115/208-230 VAC

Product Description

The Marathon Electric MG1376 is a general purpose motor designed for various applications. This single phase, capacitor start motor operates at one-and-a-half horsepower and has a maximum speed of one thousand eight hundred RPM. It can work with voltages of one hundred fifteen or two hundred eight to two hundred thirty VAC. The motor features a totally enclosed fan cooled (TEFC) design, providing better protection from external elements.

• Single phase, capacitor start motor with one speed
• Operates at 1-1/2 hp with a maximum speed of 1800 RPM
• Constructed with a rigid base and ball bearing system

Product Highlights

This motor is suitable for applications that require reliability and efficiency.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• MPN: MG1376

Technical Specifications

• Voltage: 115/208-230 VAC
• Speed: 1800 RPM
• Frame Size: 56H
• Material: Rolled Steel
• Weight: 44 lbs
• Amperage: 14.5/7.1-7.3 A
• Mounting Type: Rigid Base
• Enclosure Type: Totally Enclosed Fan Cooled
