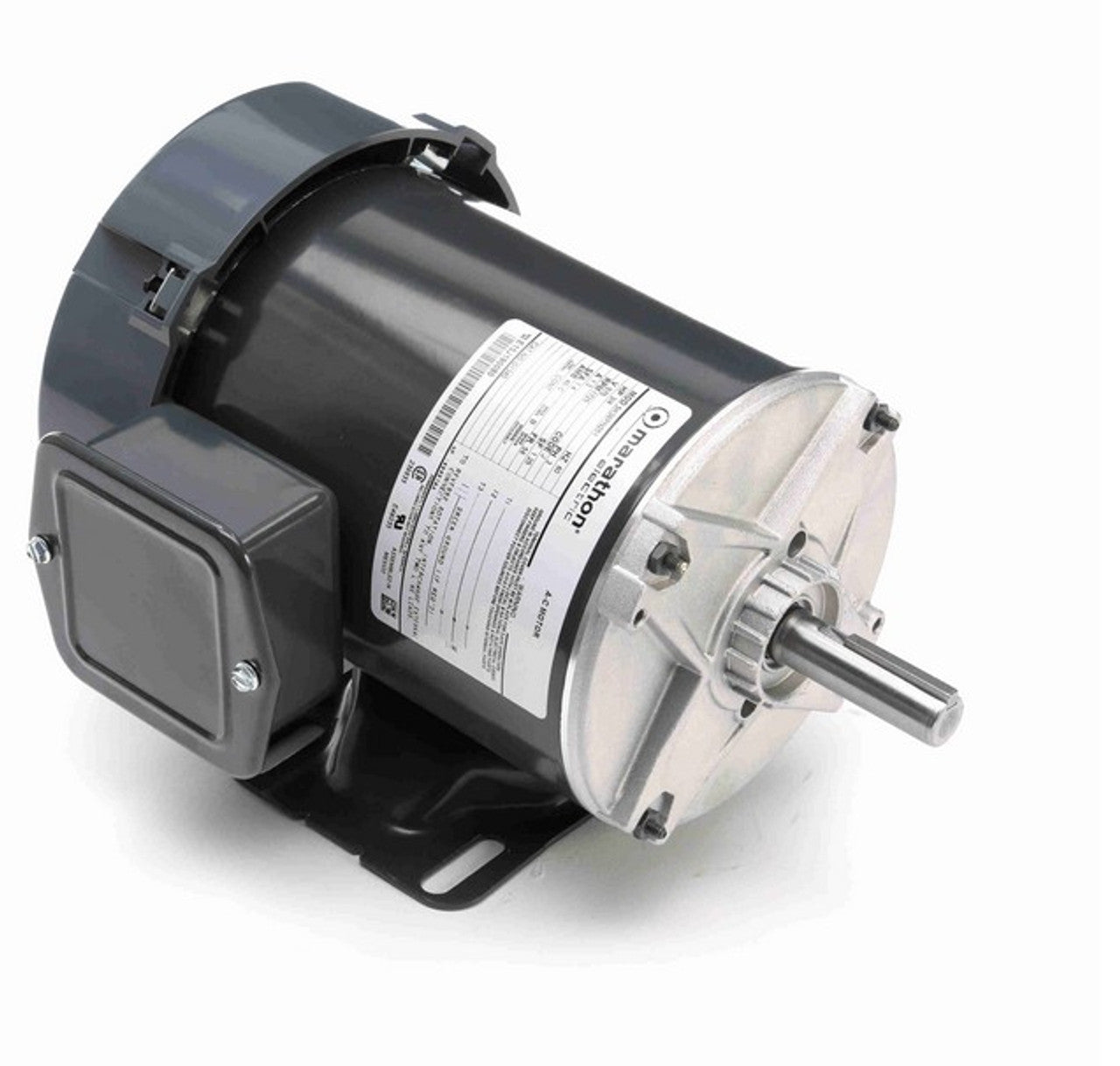

Marathon Motors MG1340 G1340 3/4 hp 575V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

Specifications:
3/4 hp 1800 RPM, 1.3 amps 575 Volts 60hz. Three Phase
NEMA 56 frame, Keyed Shaft 5/8 Diameter x 1 7/8
Service Factor: 1.25, Thermal Overload Protection: None
Rigid Base, Reversible, Ball Bearings, Class B Insulation

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled
