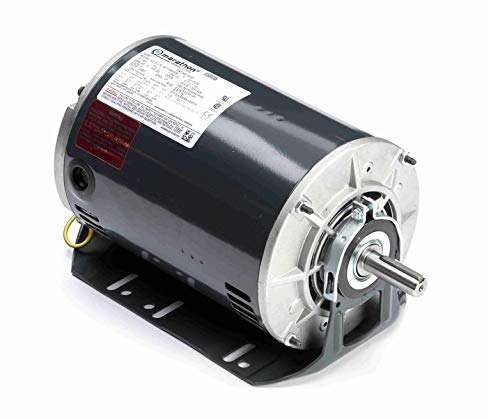

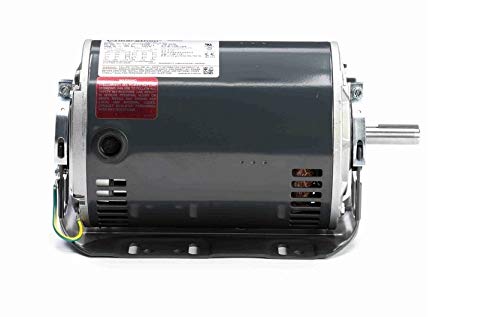

Marathon MG127 Belt Drive Motor 2 hp 1800 RPM 208-230/460 VAC 3 Phase

Product Description

The Marathon MG127 Belt Drive Motor is a versatile tool for trade professionals. This motor is three-phase and operates at one speed. It provides 2 horsepower and achieves a maximum speed of 1800 RPM. The motor runs on 208-230/460 volts AC, with an amperage of 6.2-6.2/3.1. It features a 56H frame, open drip-proof (ODP) enclosure, resilient ring mounting, and ball bearing system.

• Three-phase, one-speed operation
• Produces 2 horsepower at 1800 RPM
• 56H frame with open drip-proof enclosure

Product Highlights

This motor is designed for use in various belt-driven applications. It provides reliable performance with its resilient base and ball bearing system. It is suitable for use in HVAC systems, fans, blowers, and other industrial equipment.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MG127

Technical Specifications

• Speed: 1800 RPM
• Voltage: 208-230/460 VAC
• Material: Steel
• Horsepower: 2 hp
• Frame: 56H
• Enclosure: Open Drip Proof (ODP)
• Amperage: 6.2-6.2/3.1
• Mounting: Resilient Base
