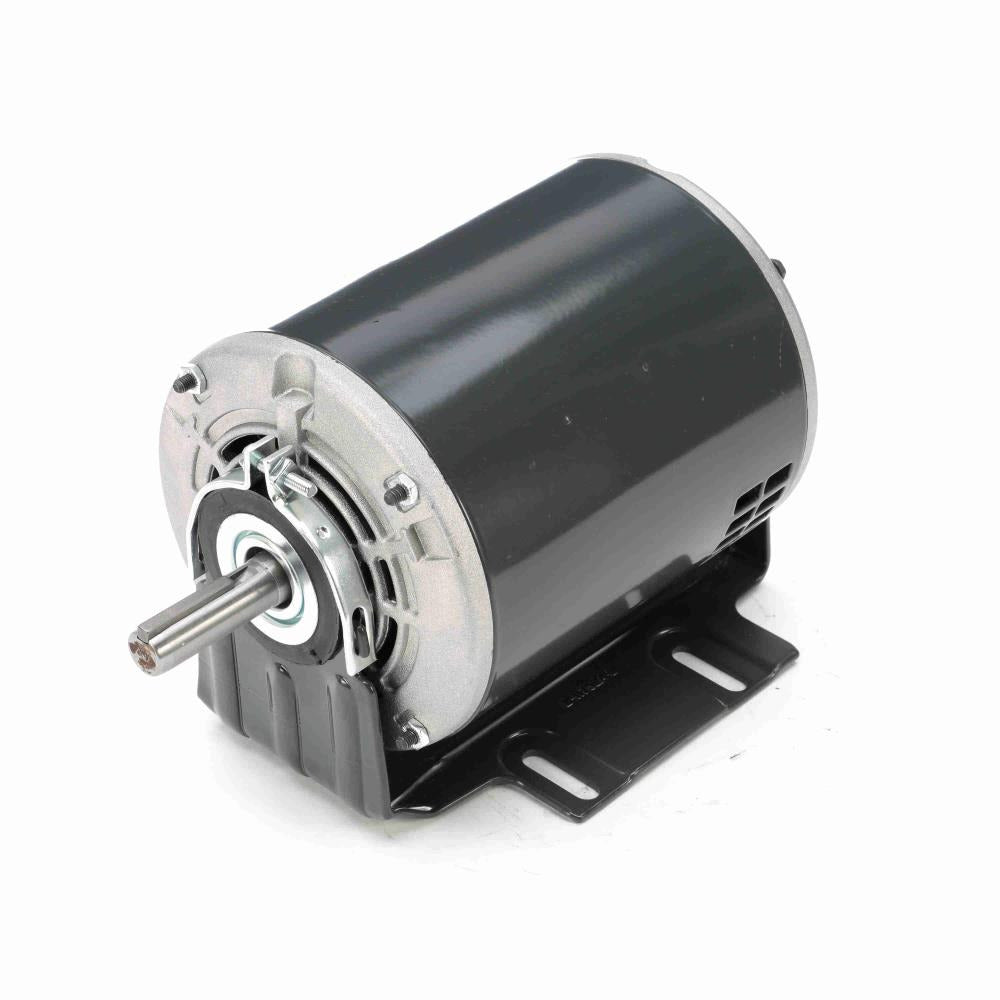

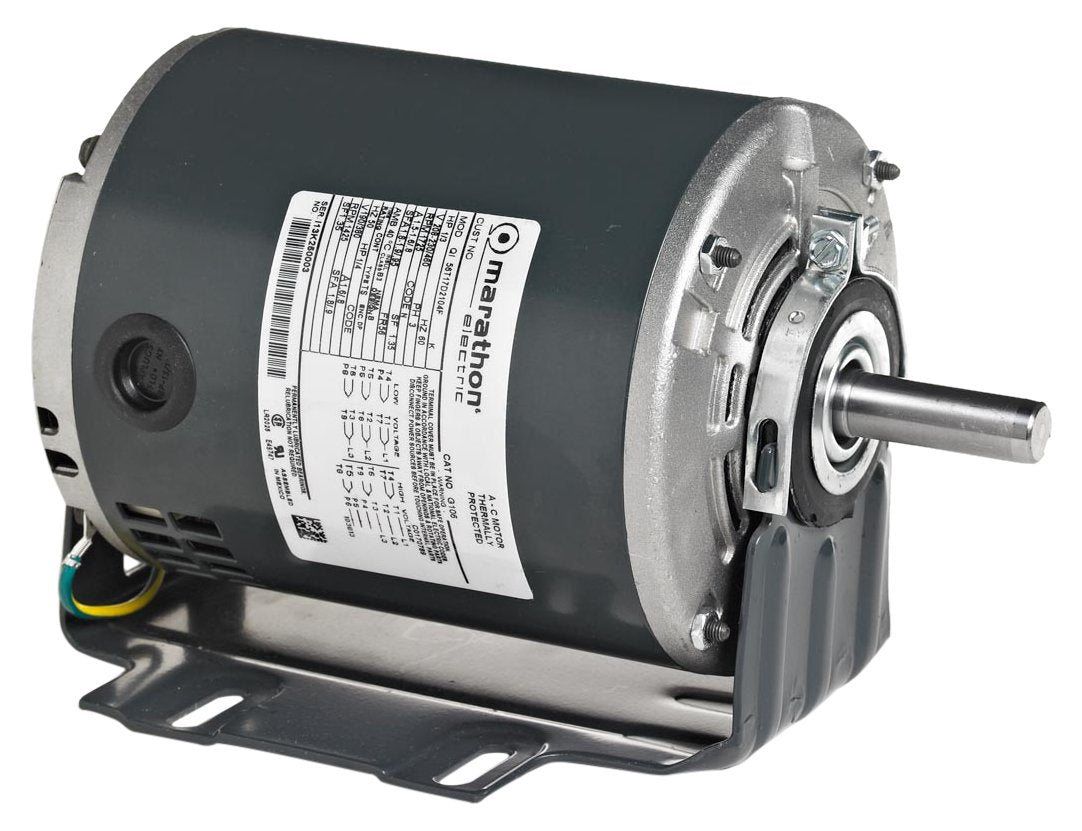

Marathon MG106 Belt Drive Motor 1/3 hp 1800 RPM 56 Frame

Product Description

The Marathon MG106 Belt Drive Motor is a robust motor designed for various applications. This 1/3 hp motor operates at 1800 RPM, featuring an open drip-proof enclosure and resilient ring mount.

• 1/3 hp motor suitable for various applications
• Operates at 1800 RPM
• Features open drip-proof enclosure with resilient ring mount

Product Highlights

Marathon MG106 Belt Drive Motor offers reliable performance with 1/3 hp power and 1800 RPM. Designed for durability with a ball bearing system, it suits many industrial needs.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MG106

Technical Specifications

• Electrical Type: Three Phase
• HP: 1/3 hp
• RPM: 1800
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: ODP (Open Drip Proof)
• Phase: Three
• Voltage: 208-230/460 volts
• Rotation: REV (Reverse)
• Amperage: 1.5-1.6/0.80 amps
• Bearings Type: Ball Bearing
• Mounting Type: Resilient Base
• Shaft Type: Single
• Material: Rolled Steel
• Speeds: 1 Speed
