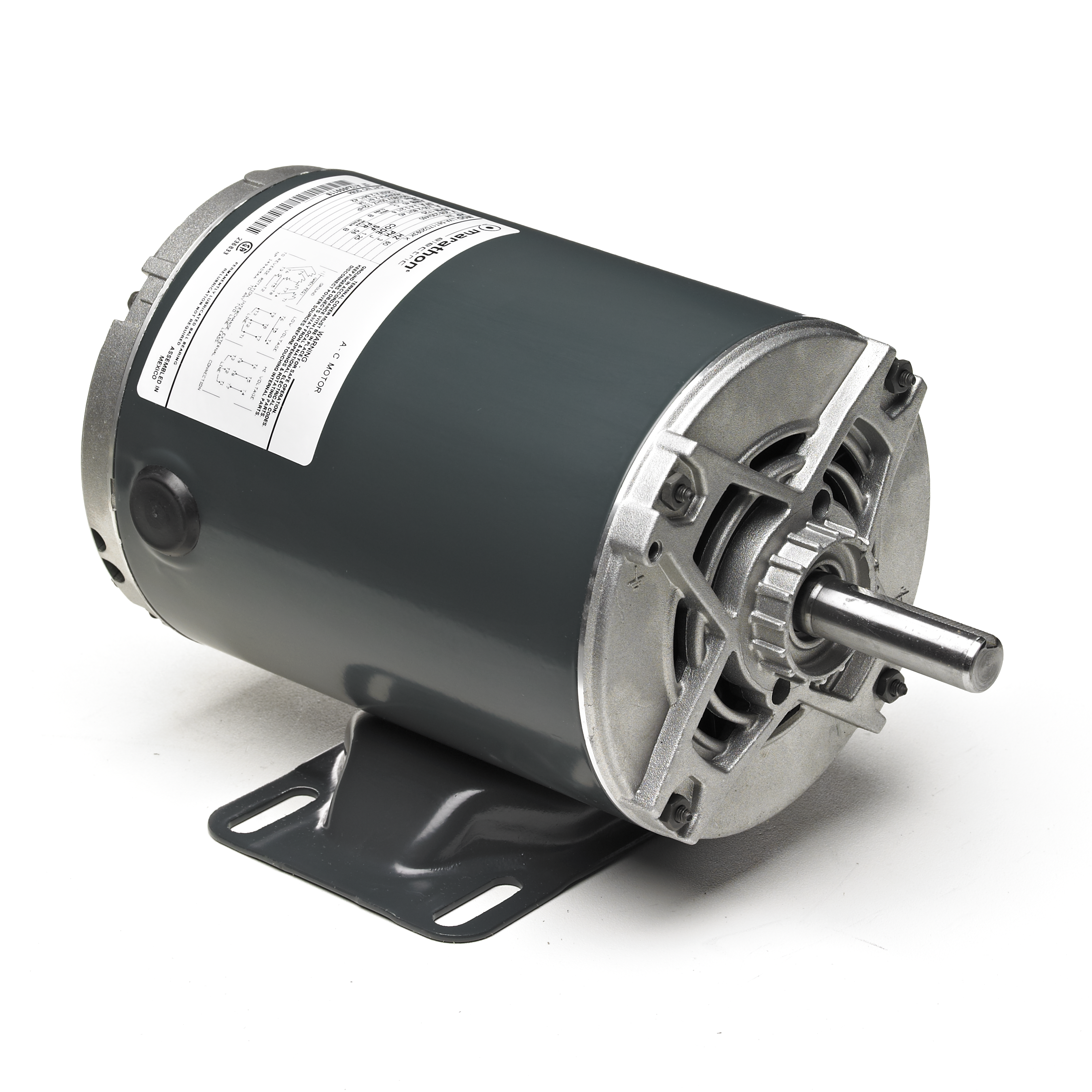

Marathon Motors MG062A G062A General Purpose, Three Phase Dripproof, Rigid Base

Features:
Ball bearings (except where noted)
NEMA Service Factors
Will accept C-Face Kits, see Accessories Section (except as noted)
UL Recognized and CSA Certified

Specifications:
Output HP : 0.50 HP
Output KW : 0.37 k
W
Frequency : 60 Hz
Voltage : 208 V
Current : 1.9 A
Speed : 1725 RPM
Service Factor : 1.25
Phase : 3
Efficiency : 78.2 %
Duty : Continous
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 56
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 11.31 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 Out ODE Brkt Radial
Weight : 29.00 LB
