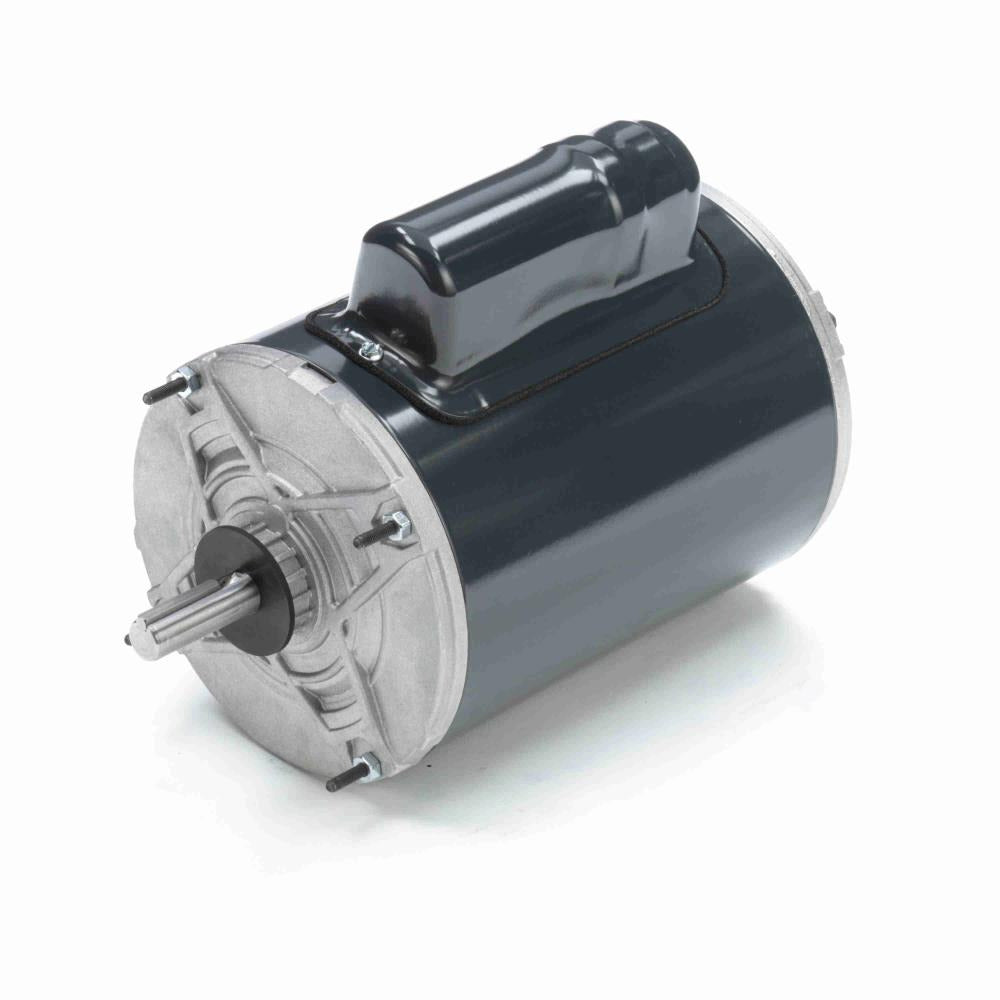

Marathon MF780 Agricultural Fan Motor 1/2 HP 850 RPM 208-230V TENV CCWSE

Product Description

The Marathon MF780 Agricultural Fan Motor is designed specifically for farming applications, delivering 1/2 HP power output with a speed of 850 RPM. This motor features a 56Y frame and is constructed with a rolled steel enclosure for durability. It operates on single phase power and is compatible with 208-230V systems.

• 1/2 HP power output
• 850 RPM speed
• 56Y frame size

Product Highlights

This agricultural fan motor is perfect for farm duty applications, providing reliable and efficient performance. Built with an auto overload protector and a CCWSE rotation, it ensures safety and consistency.

Product Information

Standard Information

• Brand: Marathon
• MPN: MF780

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• RPM: 850
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: TENV
• Phase: Single
• Voltage: 208-230
• Rotation: CCWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Mounting: Round
• Amperage: 3.7-3.6
• Shaft Type: Single
