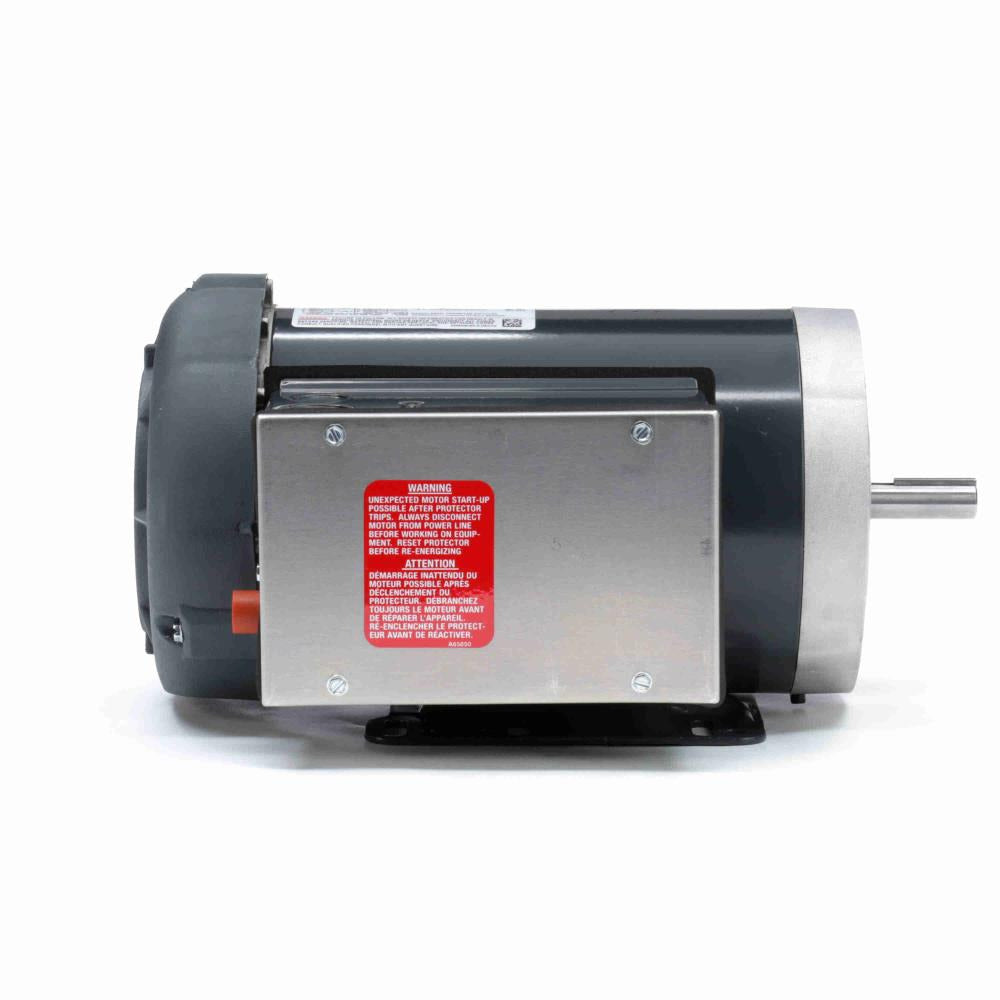

Marathon MF135 High Torque Motor 1.5 HP 1725 RPM 56HC

Product Description

The Marathon MF135 High Torque Motor delivers reliable performance with its 1.5 HP power output. This high-torque motor is designed for demanding applications and ensures efficiency with a cap start mechanism. With a rotational speed of 1725 RPM and a robust rolled steel construction, the MF135 is built for durability.

• 1.5 HP motor
• 1725 RPM speed
• 56HC frame size

Product Highlights

The Marathon MF135 High Torque Motor is suitable for various industrial and commercial applications, thanks to its high starting torque, single-phase power, and TEFC enclosure. It features a manual overload protection and is compatible with C-Face or footed mounting styles.

Product Information

Standard Information

• HP: 1.5
• RPM: 1725
• Frame: 56HC
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protection: Manual
• Material: Rolled Steel
• Mounting: C-Face / Footed
• Amperage: 15.2/8.2-7.6
• Shaft Type: Single

Technical Specifications

• HP: 1.5
• RPM: 1725
• Frame: 56HC
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protection: Manual
• Material: Rolled Steel
• Mounting: C-Face / Footed
• Amperage: 15.2/8.2-7.6
• Shaft Type: Single
