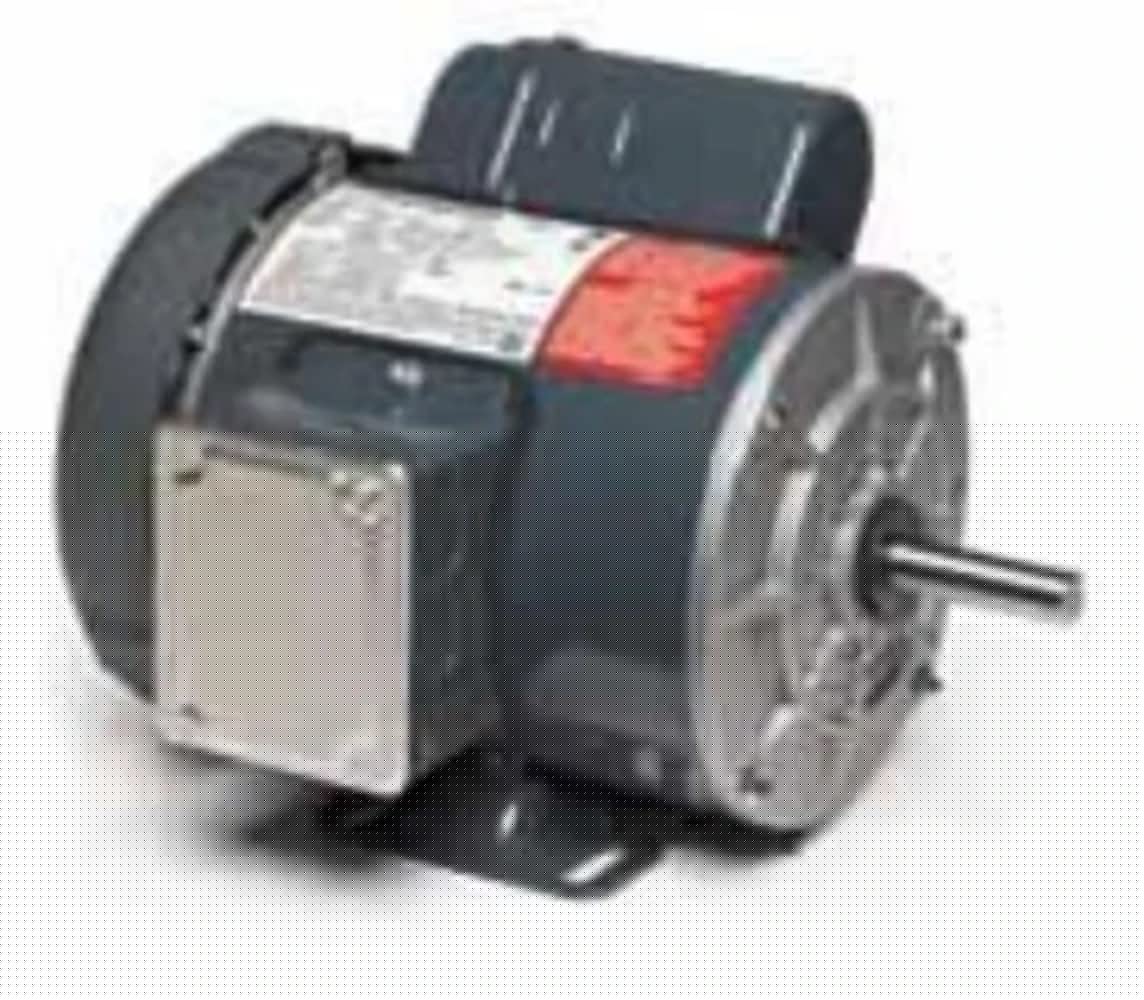

Marathon MF134 56C Frame Totally Enclosed Fan Cooled General Purpose Motor 1 hp 1800 RPM 115/208-230 VAC 1 Phase 1 Speed Ball Bearing Capacitor Start

Product Description

The Marathon MF134 56C Frame Totally Enclosed Fan Cooled General Purpose Motor is designed for various industrial applications. This motor operates at 1 hp with a maximum speed of 1800 rpm. It runs on 115/208-230 VAC and is single phase with one-speed operation. The 56C frame provides a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and protection.

• General purpose motor with single phase and one-speed operation
• Runs at 1 hp with a maximum speed of 1800 rpm
• 56C frame with TEFC enclosure, C-face mounting, and ball bearing system

Product Highlights

This motor features a capacitor start, C-face mounting, and ball bearing system for reliable performance. It is ideal for general purpose use in various industries.

Product Information

Standard Information

• Brand: Marathon
• MPN: MF134

Technical Specifications

• Power: 1 hp
• Speed: 1800 rpm
• Voltage: 115/208-230 VAC
• Phase: Single
• Enclosure: TEFC
• Mounting: C-Face, Footed
• Frame: 56C
• Amperage: 13.4/6.8-6.7
• Material: Rolled Steel
• Shaft Type: Single
