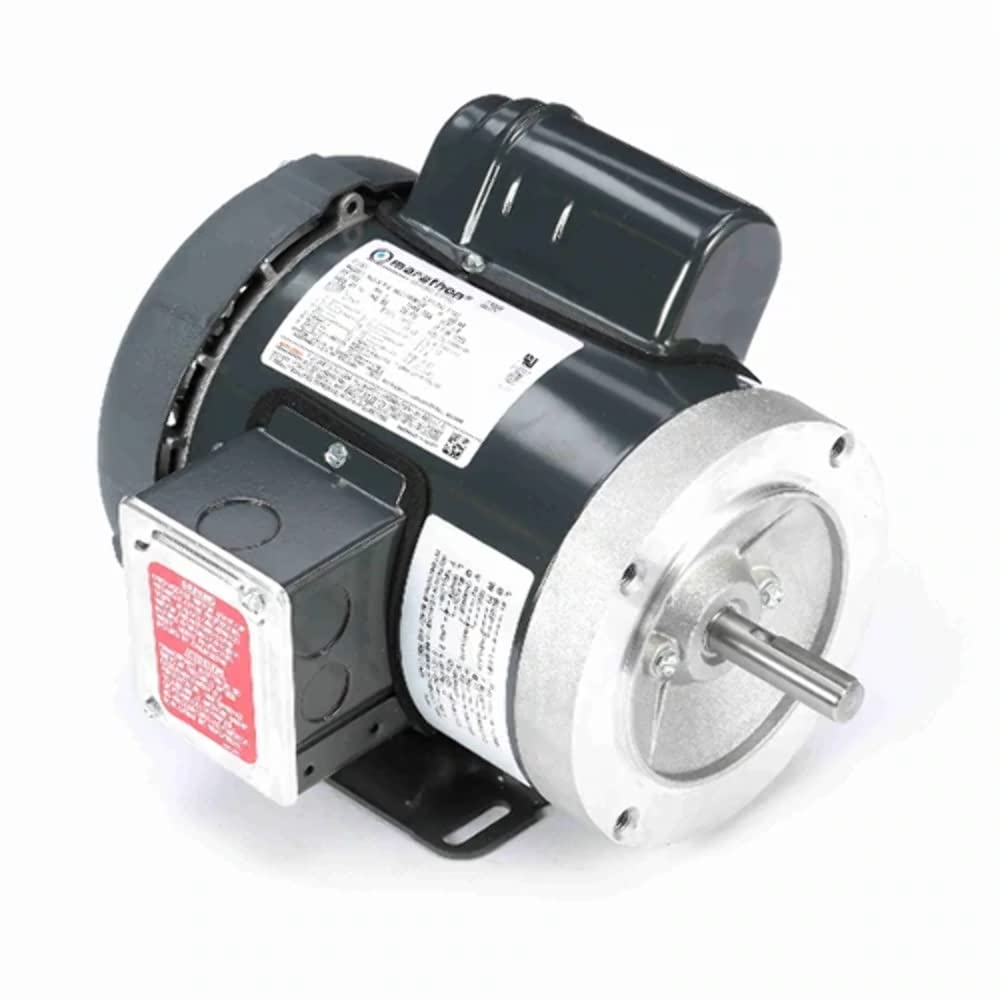

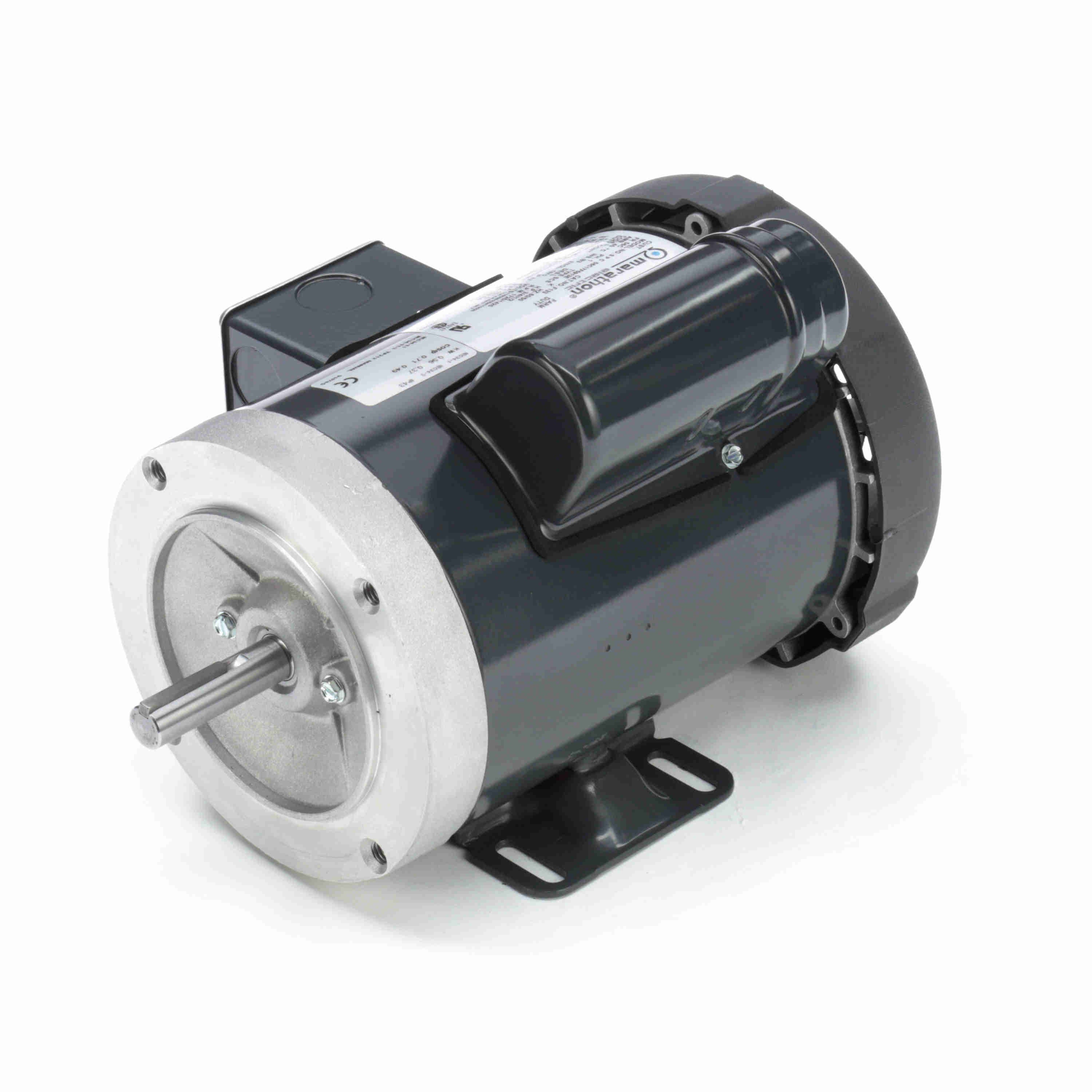

Marathon MF133 General Purpose Motor Single Phase Capacitor Start 3/4 HP 1800 RPM 115/208-230V

Product Description

The Marathon MF133 is a general-purpose motor that operates on single-phase power and features a capacitor start. It delivers 3/4 horsepower and runs at 1800 RPM. The motor supports voltages of 115/208-230V and has an amperage of 11/5.4-5.5 amps. This motor is ideal for a variety of applications requiring high torque and reliable performance.

• General-purpose motor
• Single-phase capacitor start
• High torque output

Product Highlights

This motor is designed for durability and versatility in various settings. It can be mounted using a C-face or footed mount and is enclosed in rolled steel for protection.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MF133
• Item Model Number: F133

Technical Specifications

• Horsepower: 3/4 HP
• Speed: 1800 RPM
• Voltage: 115/208-230V
• Amperage: 11/5.4-5.5 amps
• Electrical Type: Capacitor Start
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Phase: Single
• Rotation: REV (Reversible)
• Overload Protector: Manual
• Material: Rolled Steel
• Mounting: C-Face, Footed
• Shaft Type: Single
