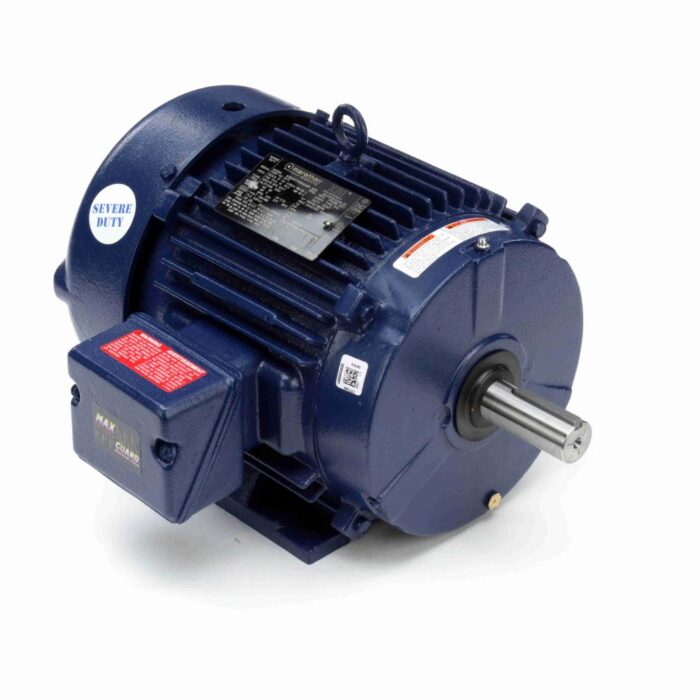

MARATHON MOTORS ME479 Severe Duty Motor 10HP 230/460 volts

Product Description

The MARATHON MOTORS ME479 is a severe duty motor with a rating of 10 horsepower. This motor operates efficiently in tough environments, making it ideal for industrial applications. Engineered with a totally enclosed design and a rigid base, it is well-suited for three-phase power systems.

• Constructed from 100% cast iron for durability and reduced vibration.
• Complies with NEMA premium efficiency standards and EISA2007 regulations.
• Offers IP54 protection rating and UL recognition.

Product Highlights

This motor is built to withstand rigorous conditions, making it a reliable choice for various applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: ME479

Technical Specifications

• Motor Rating: 10HP, 1800 RPM, 230/460 volts
• Frame Size: 215T
• Amperage: 25.0/12.5 amps
• Service Factor: 1.15 (sinewave), 1.0 (IGBT power)
• Insulation Class: Max guard class F
• Construction: 100% cast iron
• Efficiency: NEMA premium
• Compliance: EISA2007
• Hazardous Location Certification: CSA certified for Division 2, temperature code T2B
• Marine Duty Standards: Meets IEEE45 USCG standards
• Automotive Duty Specifications: Compliant with Ford EM1
• Enclosure Rating: IP54
• UL Recognition: UL recognized (449T)
• C-face Kit: A206 included
