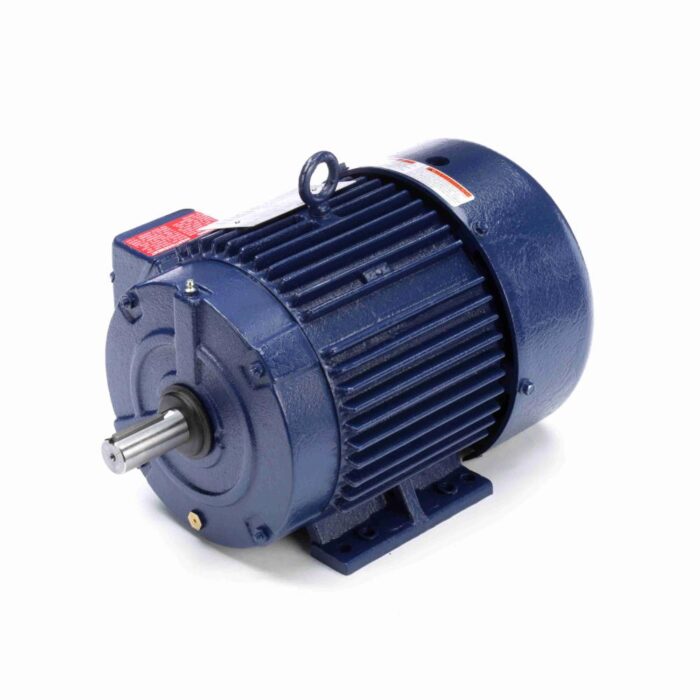

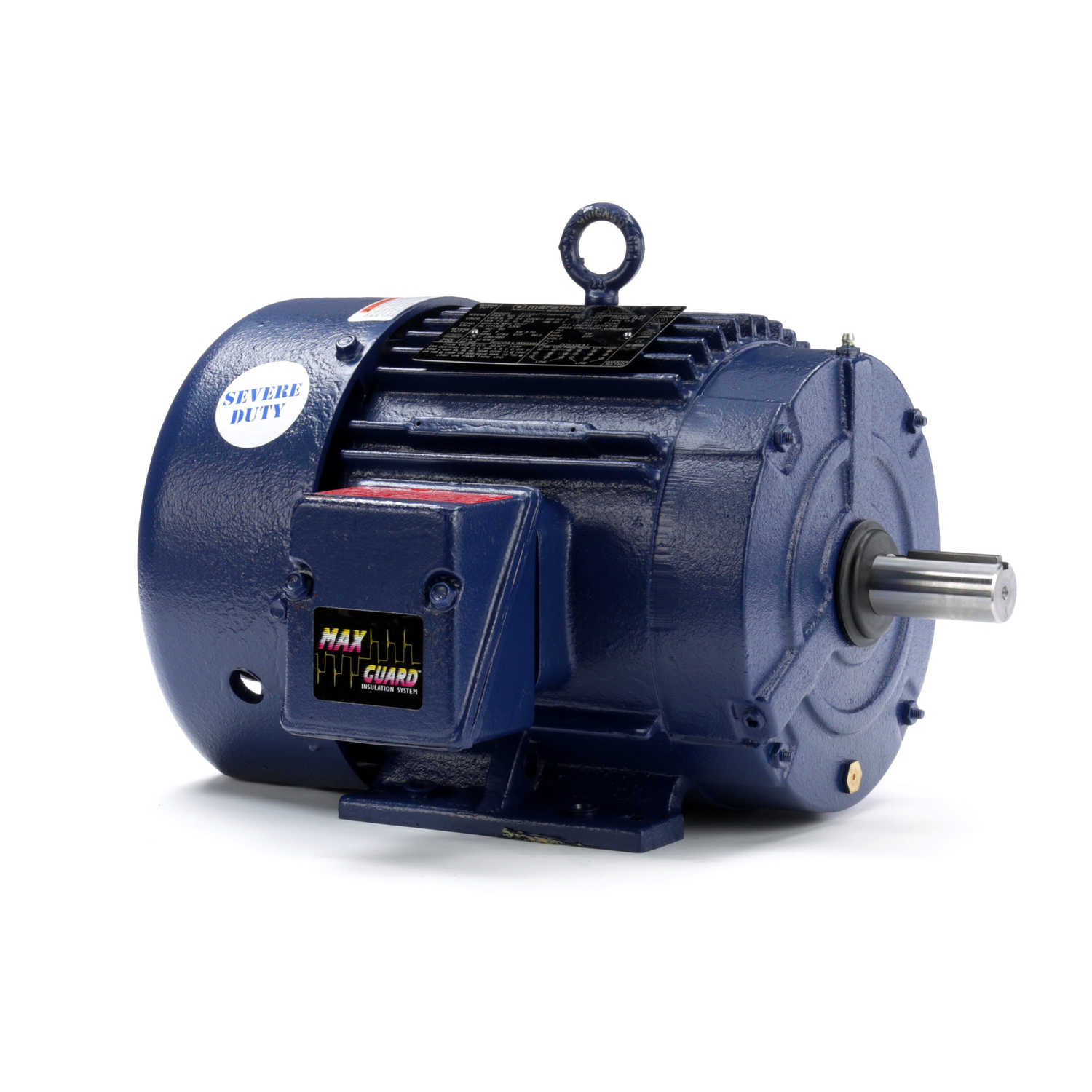

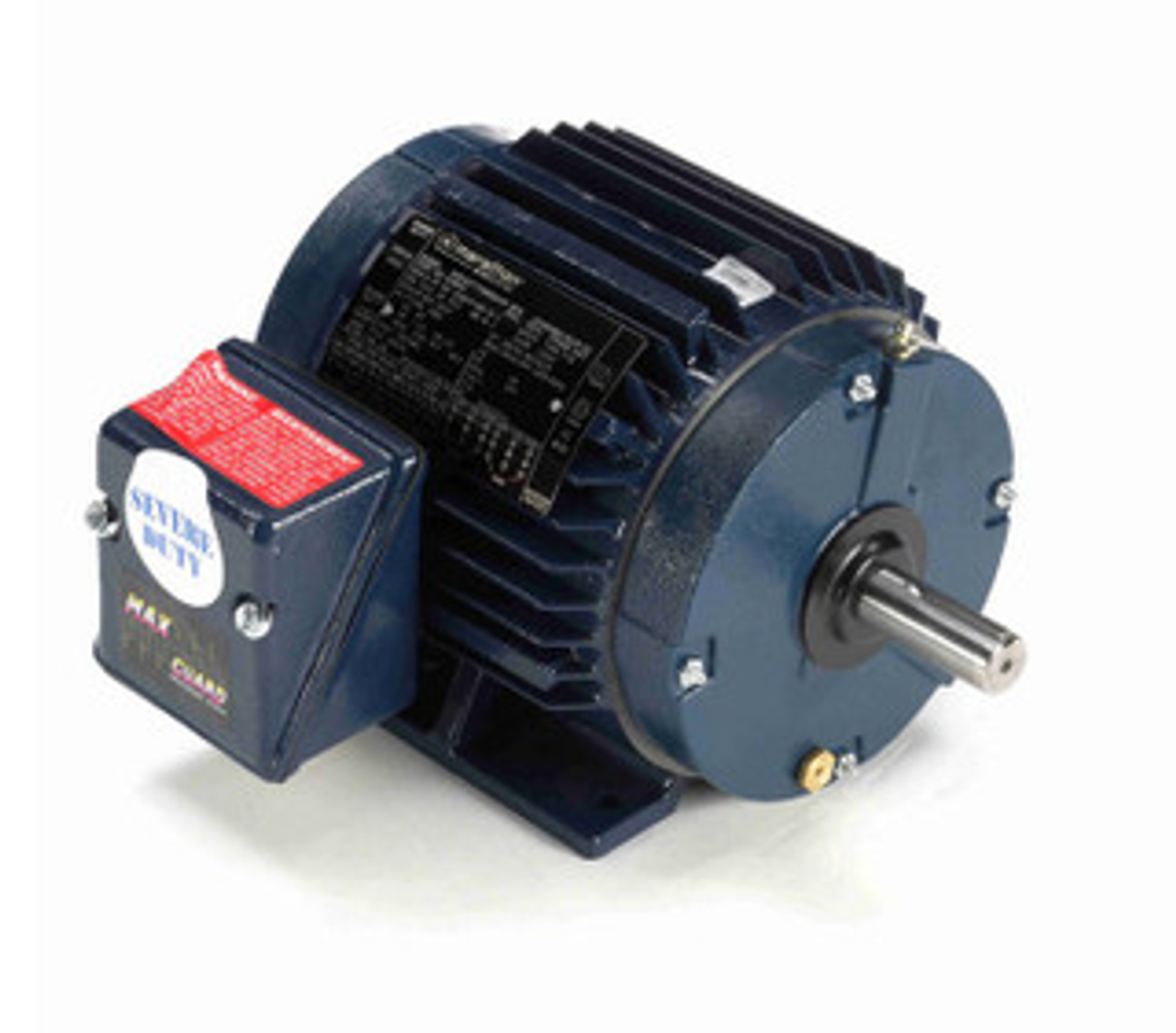

MARATHON MOTORS ME473 Severe Duty Motor

Product Description

The MARATHON MOTORS ME473 is a three-phase motor designed for severe duty applications. This motor is constructed with cast iron, providing strength and reduced vibration. It is suitable for use in various industrial environments including chemical plants, paper mills, refineries, mines, and food processing sectors. It meets or exceeds NEMA Premium efficiencies and complies with EISA2007.

• NEMA Premium efficient
• Features Class F insulation
• IP54 rated against dust and water

Product Highlights

The ME473 motor is designed for durability and reliability in demanding settings. Its robust construction allows it to operate efficiently even in tough conditions.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: ME473

Technical Specifications

• Horsepower: 5 HP
• Operating Speed: 1800 RPM
• Input Voltage: 230/460 Volts
• Frame Size: 184T Frame
• Input Current: 12.4/6.2 Amps
• C Dimension: 16.19 inches
• Enclosure: Totally Enclosed
