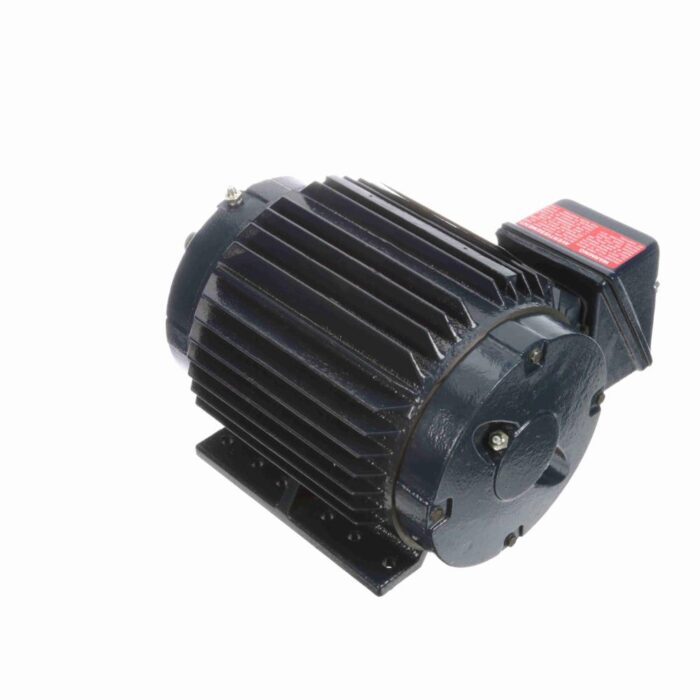

MARATHON MOTORS ME462 Severe Duty Motor 1 HP 230/460 V

Product Description

The Marathon Motors ME462 is a severe duty motor built for tough applications. This motor is ideal for environments including chemical plants, paper mills, refineries, mines, food processing, and foundries.

• Constructed from 100% cast iron for strength and less vibration.
• Includes brass drain breather and extended grease tubes.
• Meets IEEE 45 USCG marine duty standards.

Product Highlights

The ME462 features robust construction and specialized design, making it suitable for high cycle and long run operations.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: ME462

Technical Specifications

• Horsepower: 1 HP
• Voltage: 230/460 V
• RPM: 1150
• Frame Size: 145 T
• Enclosure: TENV
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15 (Sinewave), 1.0 (IGBT Power)
• Efficiency: Meets or exceeds NEMA Premium efficiencies
• Insulation Class: Max Guard Class F
• Enclosure Rating: IP54
• Certifications: CSA certified, UL recognized, Hazardous Duty Division 2 CSA certification
• Weight: 60 lbs
• Temperature Code: T2B
• Electrical Type: Phase
