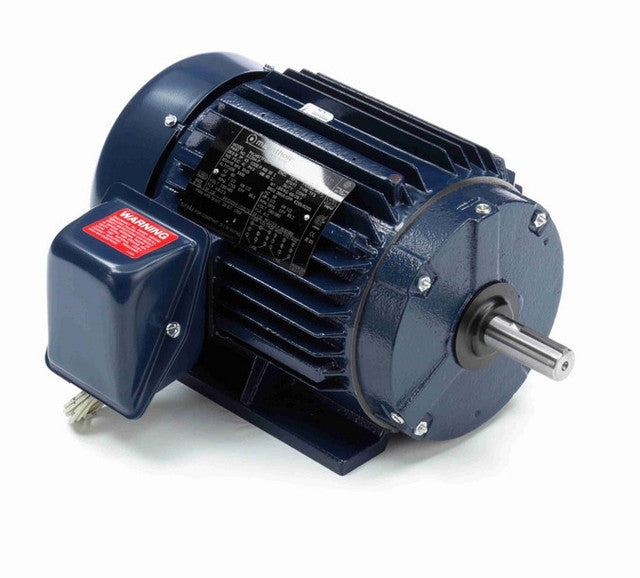

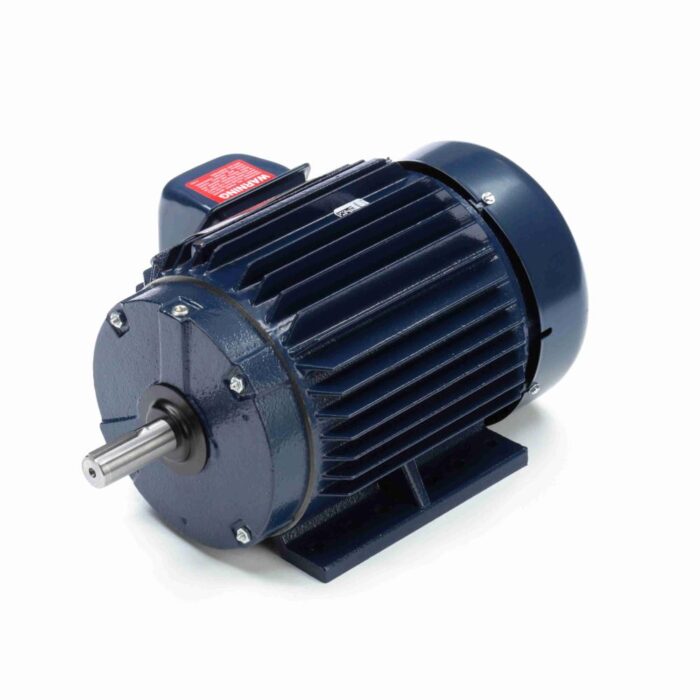

MARATHON MOTORS ME2204-P General Purpose Motor 1 1/2 hp 230/460 volts

Product Description

The MARATHON MOTORS ME2204-P is a general purpose motor designed for various applications. This motor provides a powerful performance with a horsepower rating of 1 1/2 hp and operates at a speed of 1800 RPM. It features a durable cast iron enclosure with a totally enclosed fan-cooled (TEFC) design that protects it from dust and moisture. The motor includes ball bearings for smooth operation and has a shaft keyway for secure attachment.

• Durable cast iron enclosure
• Totally enclosed fan-cooled design
• Reversible rotation

Product Highlights

This motor is ideal for industrial uses where efficiency and reliability are essential. Its reversible design allows flexibility in application, making it suitable for various machinery and systems.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: ME2204-P

Technical Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460 volts
• Frame Size: 145T
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Material: Cast Iron
• Rotation: Reversible
• Service Factor: 1.15
• Thermal Overload Protection: None
• Mounting Type: Rigid Base Mount
• Bearing Type: Ball Bearings
• Insulation Class: Class F
• Shaft Keyway: Yes
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 1/4 inches
