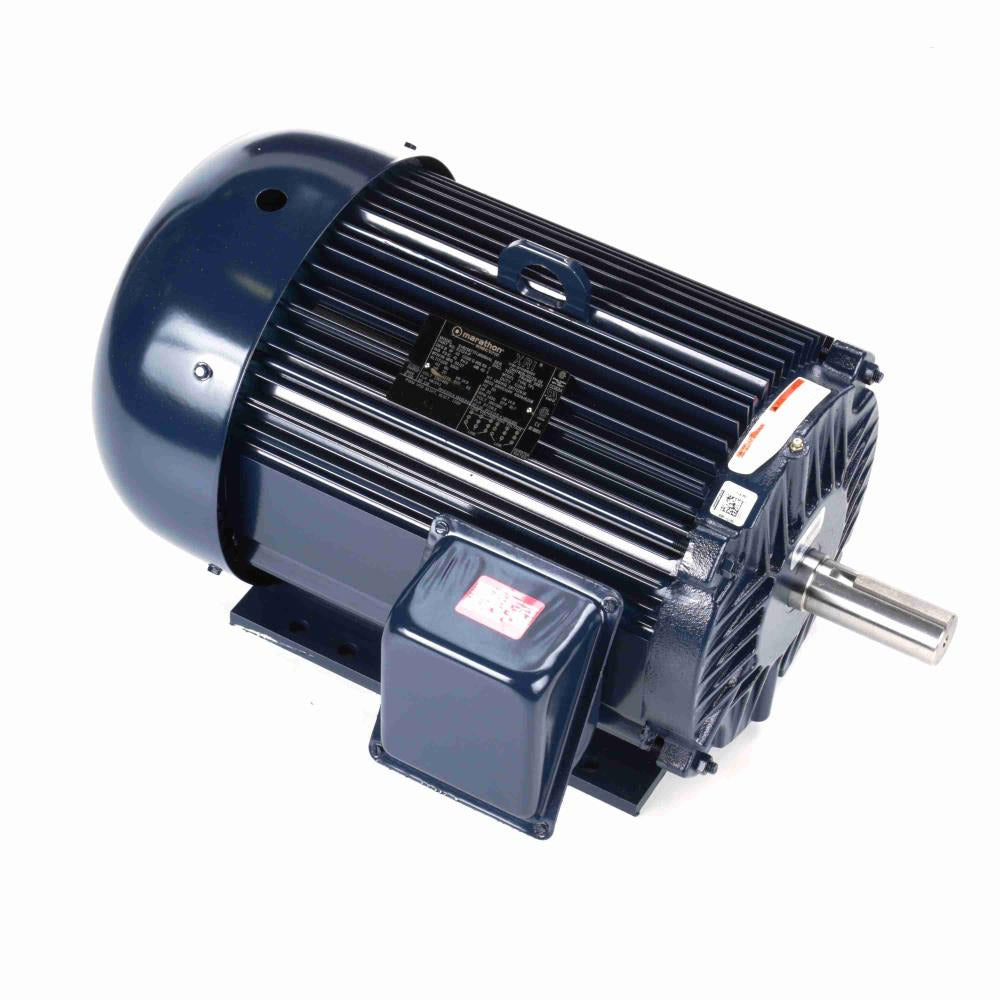

Marathon ME2122-P General Purpose Motor 15 HP 1775 RPM 254T Frame

Product Description

The Marathon ME2122-P General Purpose Motor is a robust three-phase motor designed for various industrial applications. This motor features a 15 HP power rating, 1775 RPM speed, and a 254T frame, making it suitable for demanding environments.

• Three-phase motor
• 15 Horsepower
• 1775 RPM

Product Highlights

The Marathon ME2122-P is built with a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring it operates efficiently in rugged conditions. It has a rigid base for secure mounting and an aluminum construction for durability. The motor supports a voltage range of 230/460 and operates with a 37.5/18.8 Amp rating.

Product Information

Standard Information

• Brand: Marathon
• MPN: ME2122-P

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 15
• RPM: 1775
• Frame: 254T
• Enclosure: TEFC
• Voltage: 230/460
• Rotation: REV
• Amperage: 37.5/18.8
• Material: Aluminum
• Mounting: Rigid Base
• Shaft Type: Single
